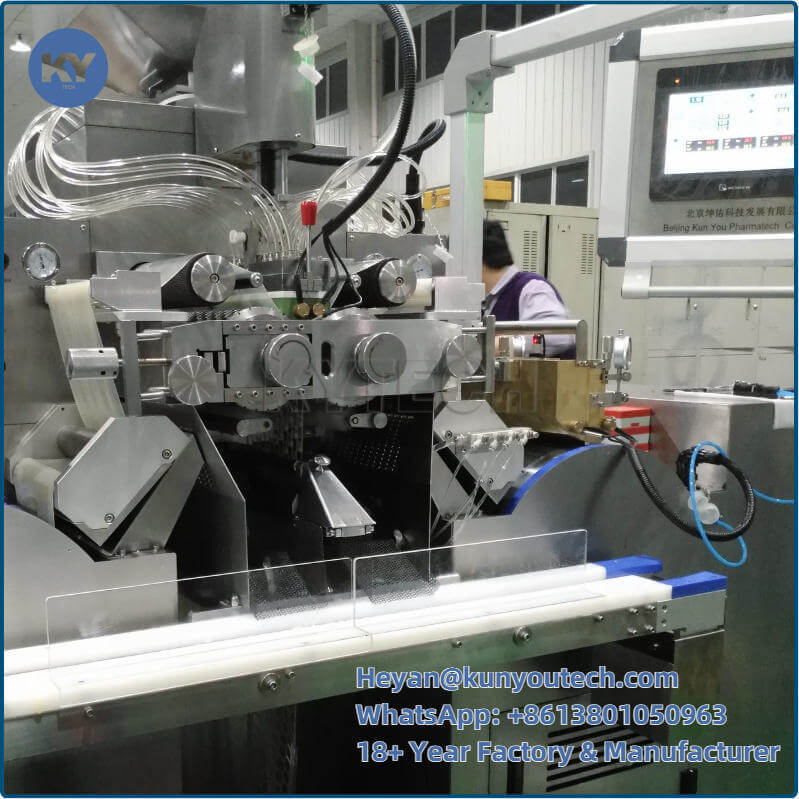

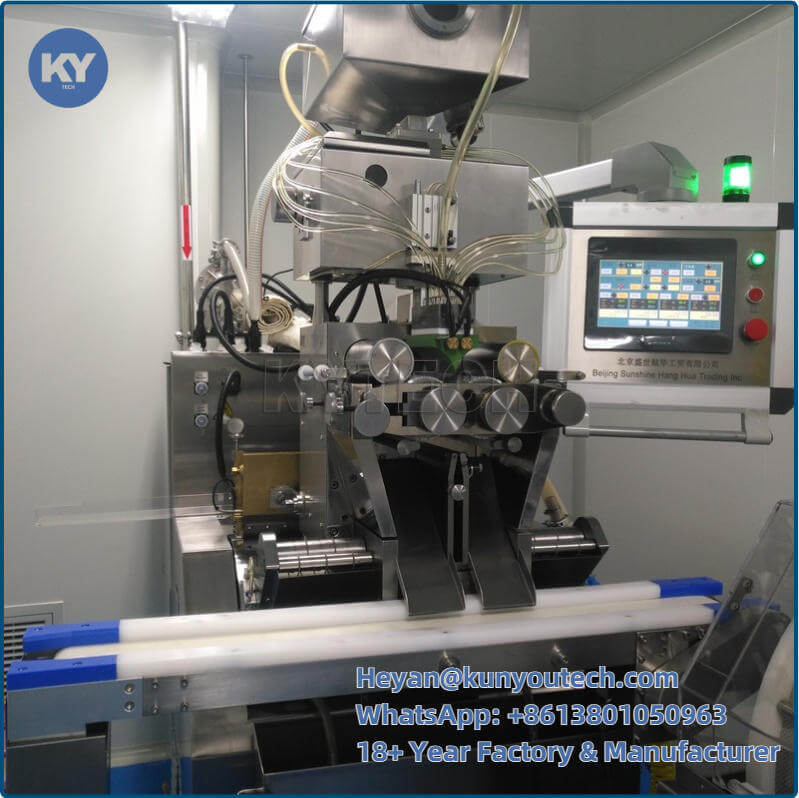

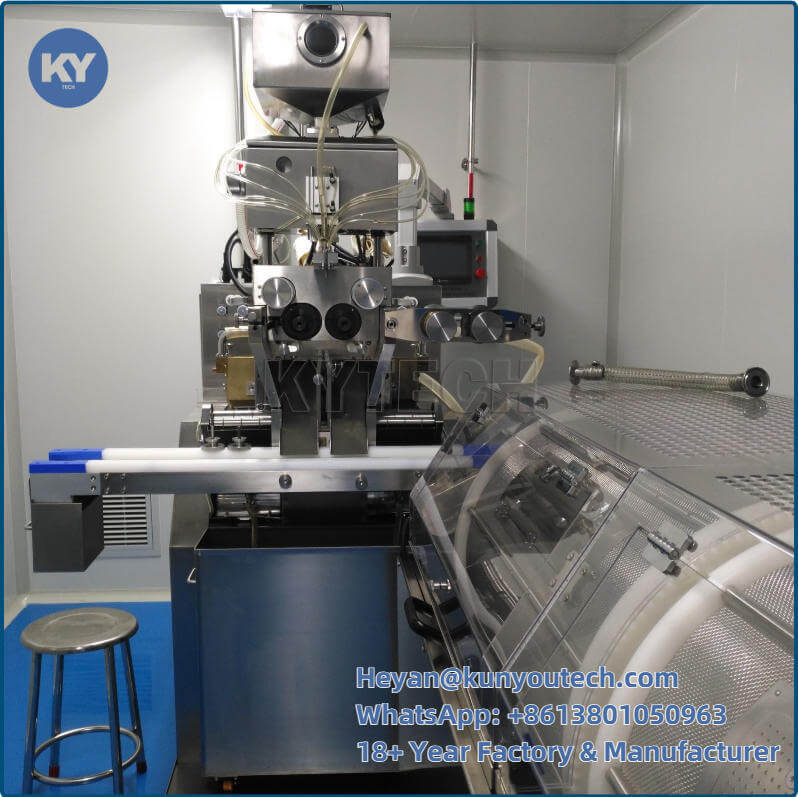

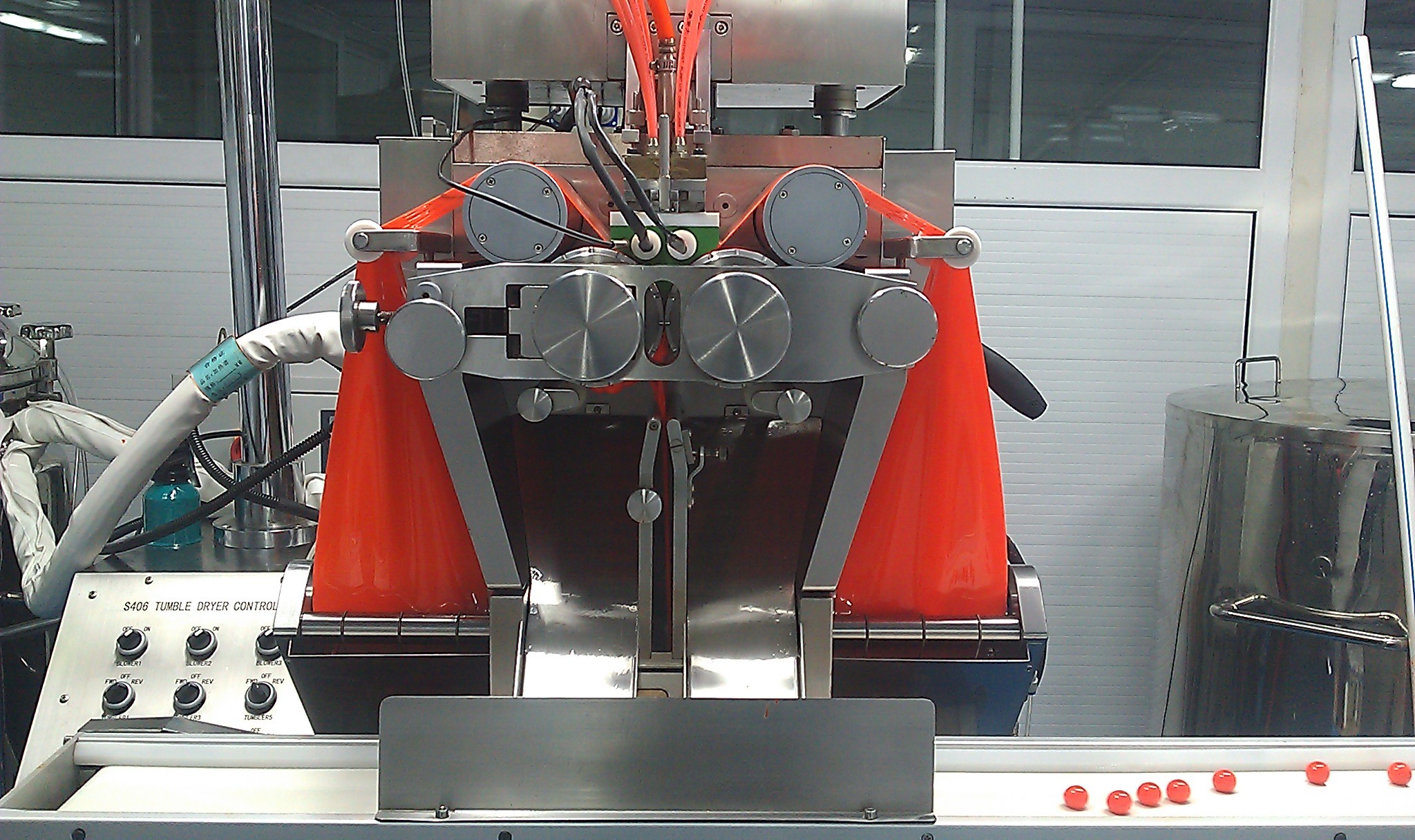

S406 Soft Capsule Making Machine considers the need and the biggest benefits of customers as start point, combining advantages of foreign equipment and requirements of customers. S406 Softgel Encapsulation Machine's die roll is 152 mms in length.
The die roll's rotation rate can be regulated within 0 to 7 rpm, so users can choose the most appropriate speed according to different materials and process parameters.
|
SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
|
|||
|
Main Machine S406
|
Engine model
|
Kw/rpm
|
4.5/0-7
|
|
Control mode
|
Control mode
|
PLC+HMI Switch/buttons
|
|
|
Plungers
|
10
|
±0.15
|
|
|
Main performance parameters
|
Die Roll Size
|
φ103mm
|
152mm
|
|
Travel speed (max. & min.)
|
°
|
<7
|
|
|
Dimension/Weight
|
880X640X1900mm
|
900kg
|
|
|
Capacity
|
Capsules
|
45,000 capsule/h
|
@4rpm 500mg each
|
|
Painball
|
14400Painballs
|
@2rpm 0.68inch
|
|
|
|
|
|
|
S406 Softgel Encapsulation Machine improves the bearing spindle supporting way of die roll, thus making the spindle more accuracy and much easier to repair.
In addition, the machine further improves the machining precision. More helical gears are used in the process of gear moving, which improve the gear coincidence degree and transmission stability. The spilt structure of cooling fan reduces the thermal effect to the pressure pill.
Besides, gelatin barrel is added with wheel which can be moved more conveniently and easily. The machine is provided with stirring or insulation optional hopper, using ground automatic feeding method.
The soft capsule machine's oil roller is made of stainless steel material, so it's more in line with the requirements of GMP.
Name: contactors, relays, breakers, switches
Brand: Schneider
Original: Germany
static electricity guiding device
Name: Pump
Brand: Kunyou
Original: our company
Dosage deviation of the plunger in the pump:<+1.5%
Can be with Ti coating
Name: Die Rolls
Brand: Kunyou
Original: our company
With wedge, distribution plate, etc.
Die rolls are made from aviation high hardness aluminum alloy, injection wedge made from copper and coated with PTFE, meet GMP requirement;
Name: Touch Screen
Brand: Kunyou
Original: Germany
Main elements made in Germany and Japan; Auto trouble shooting
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
|
Packaging
|
|
|
Size
|
880X640X1900mm
|
|
Weight
|
900kg
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
