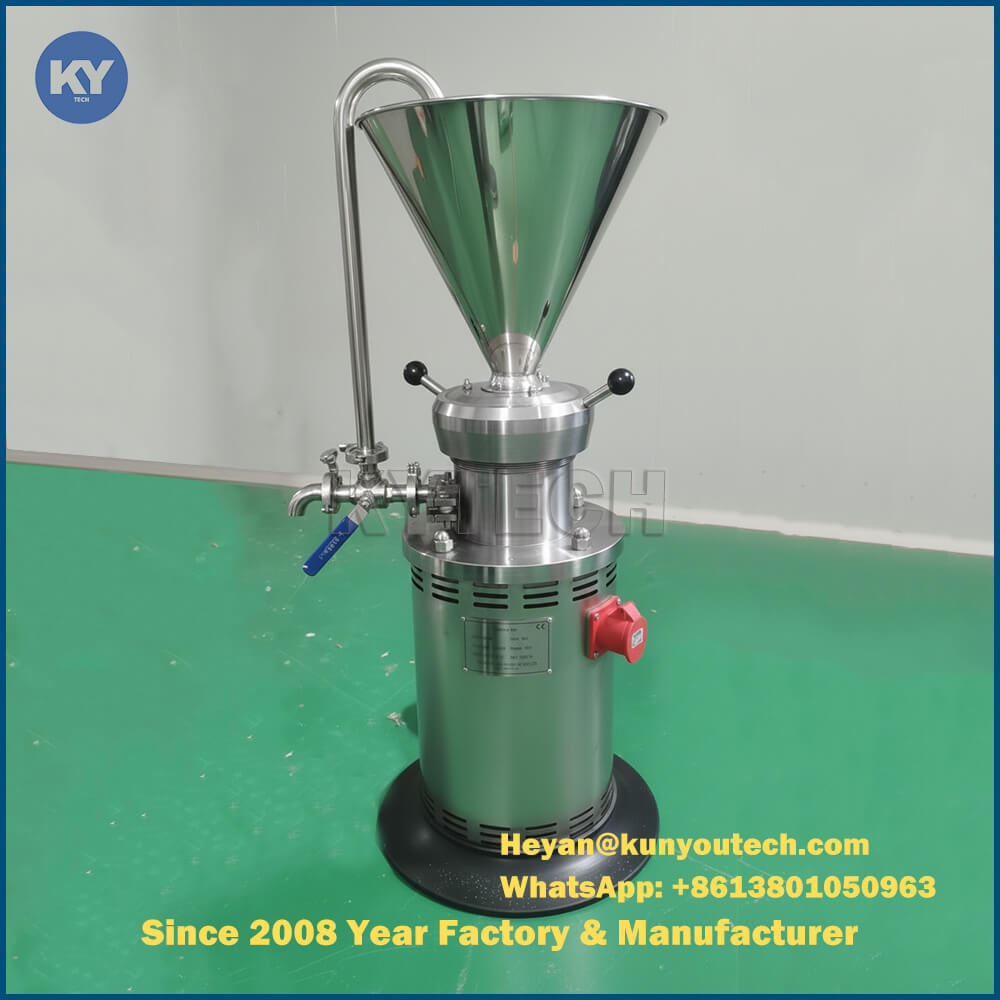

Large Image :  Stainless Steel Colloid Mill Machine

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30-90 days
Payment Terms: T/T, L/C
Contact Now
Detailed Product Description

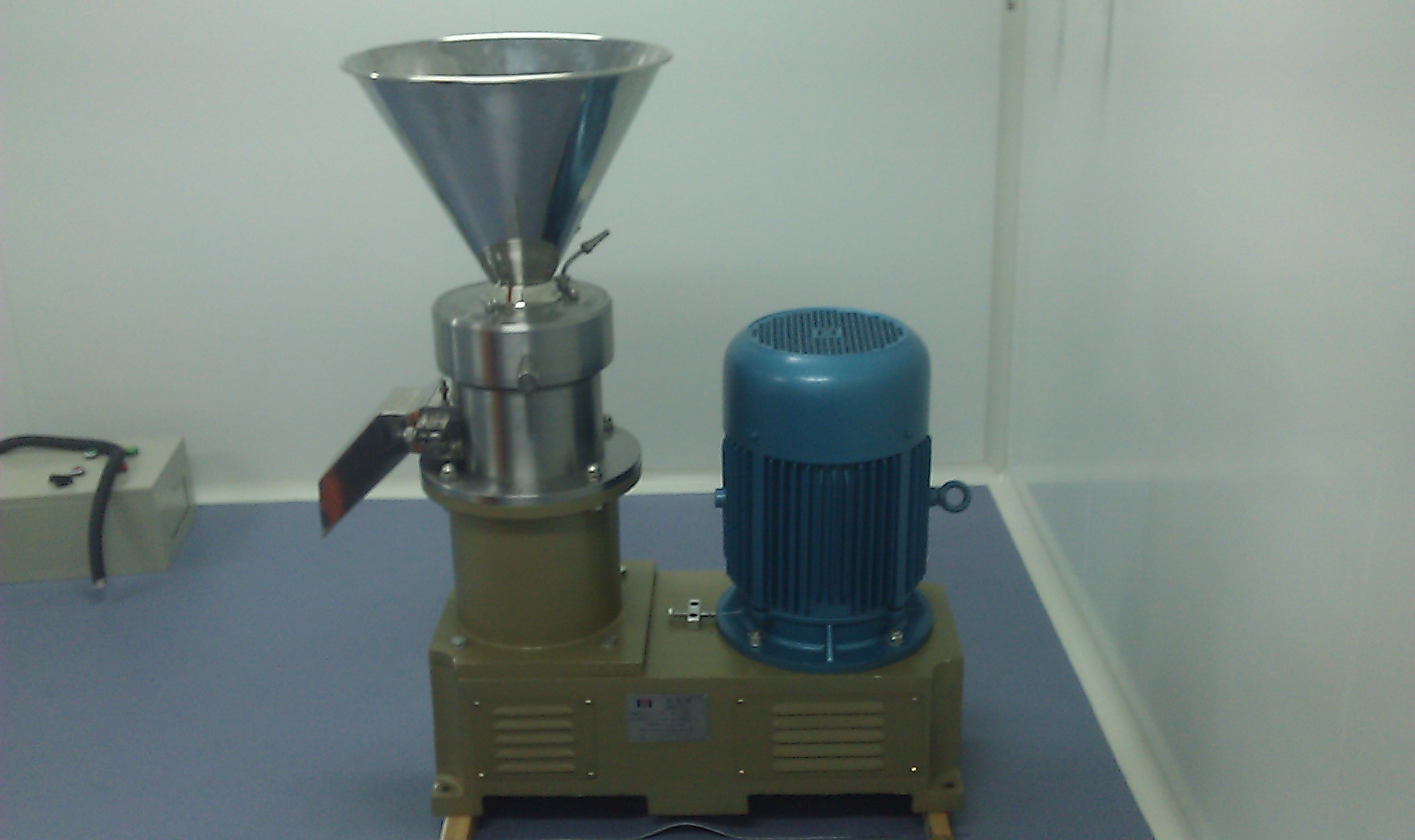

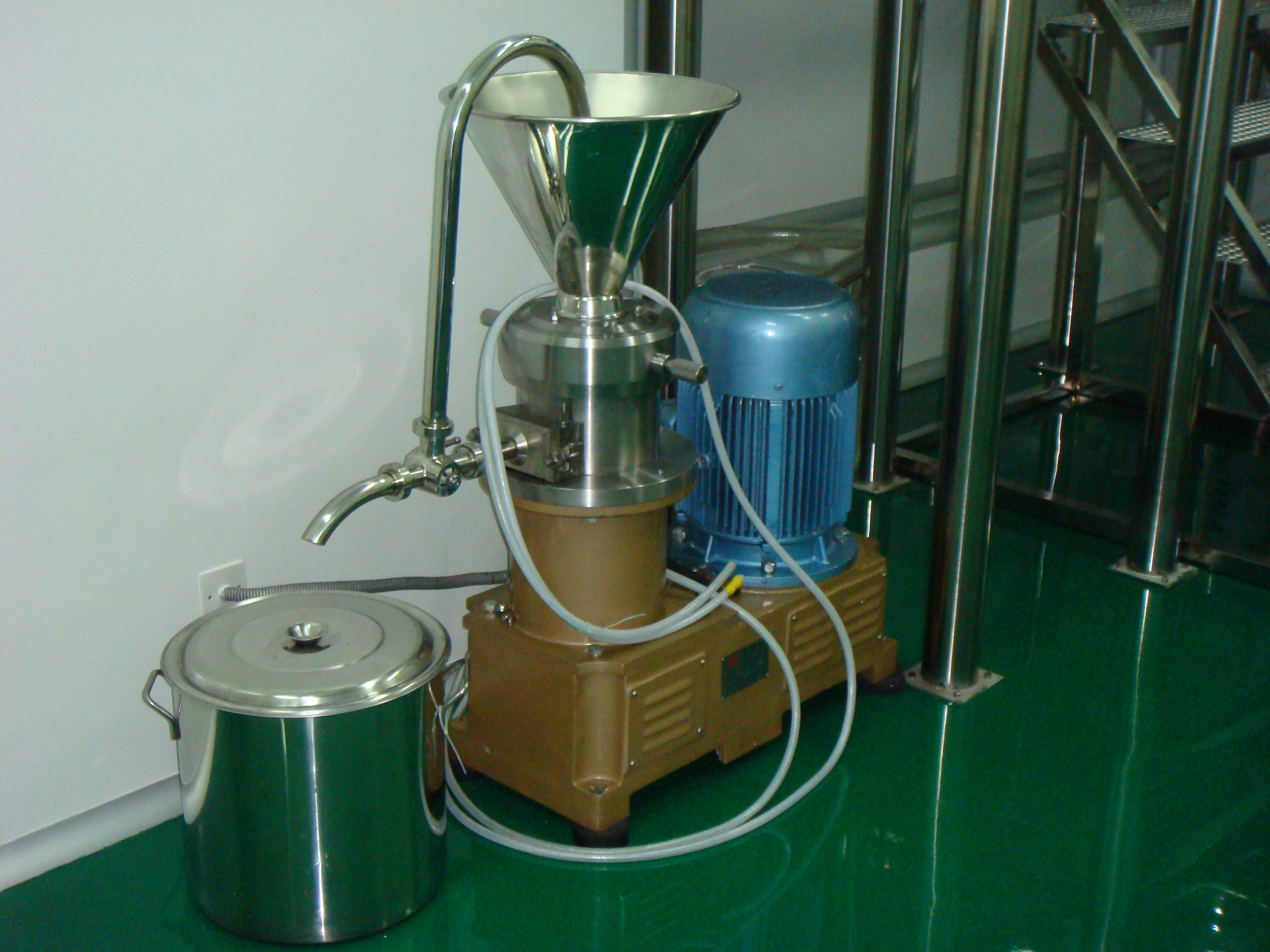

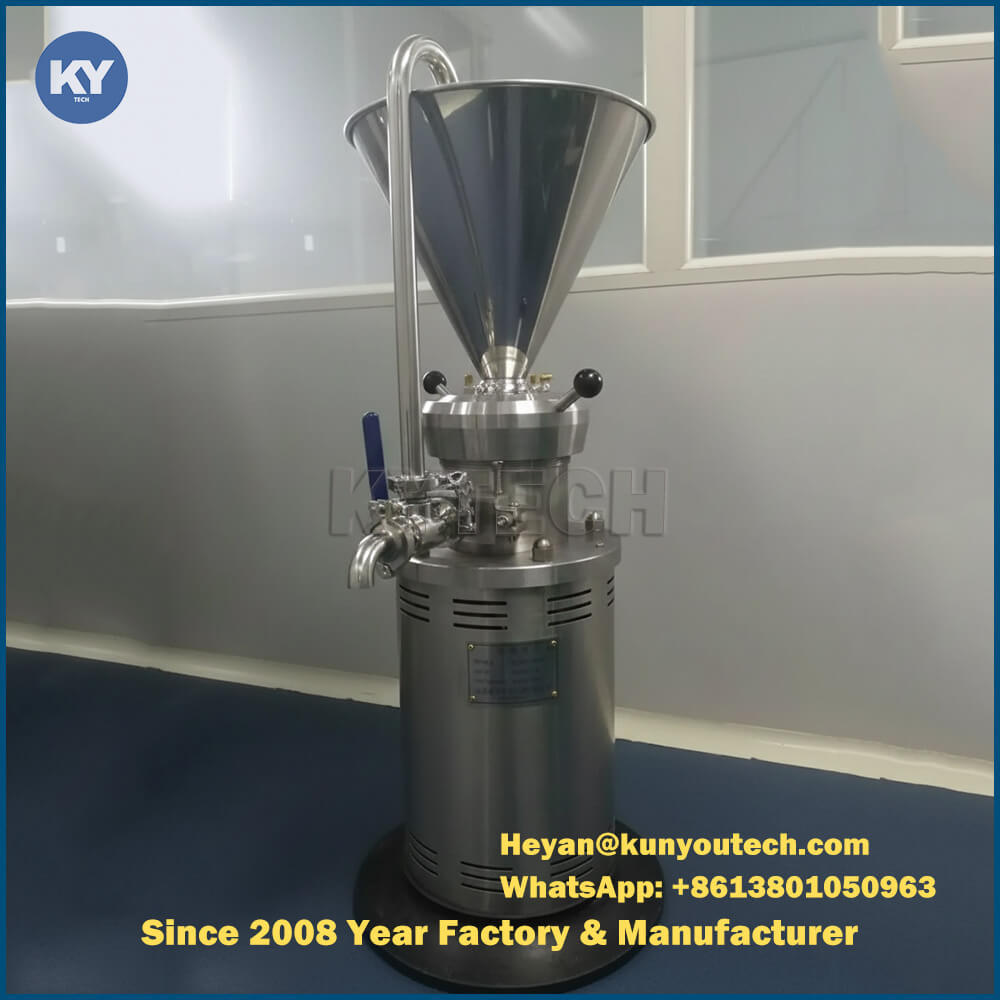

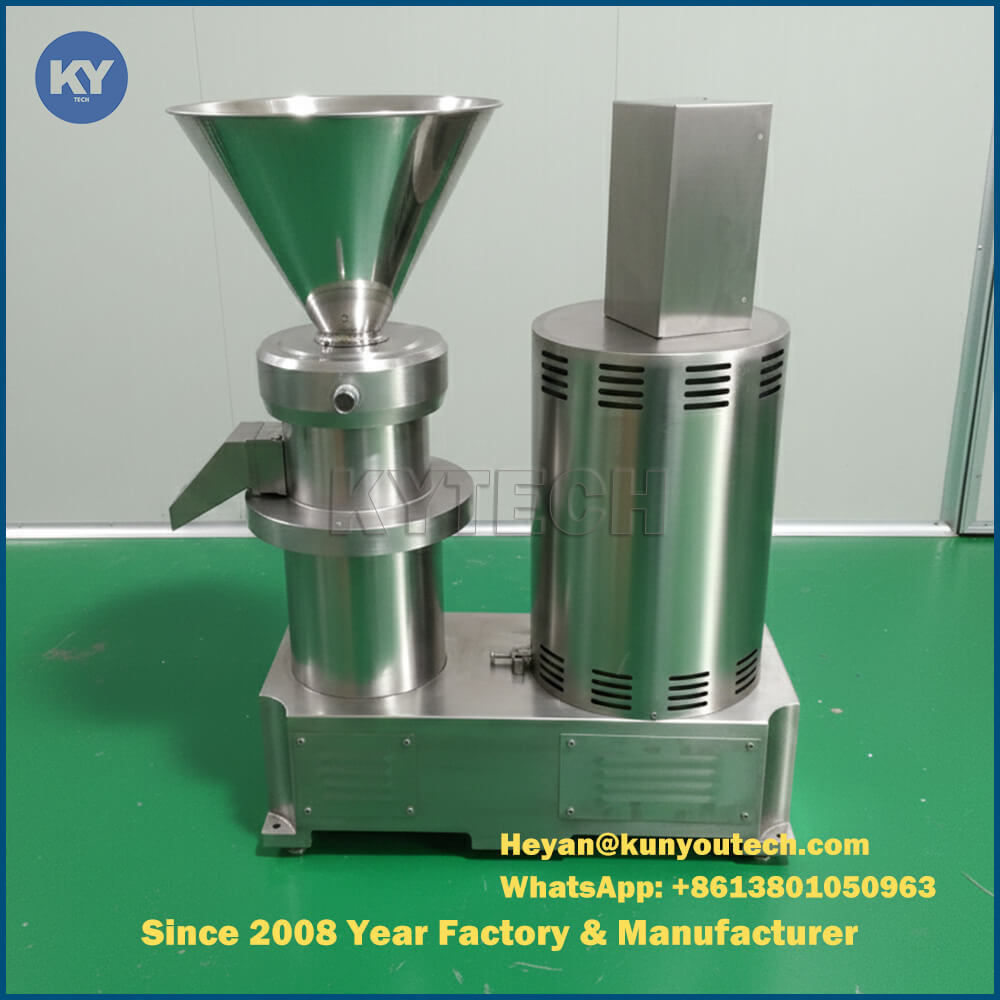

Stainless Steel Colloid Mill Machine





Product Description



Major spare parts of the colloid mill are made of high quality stainless steel and free from corrosion and poison.

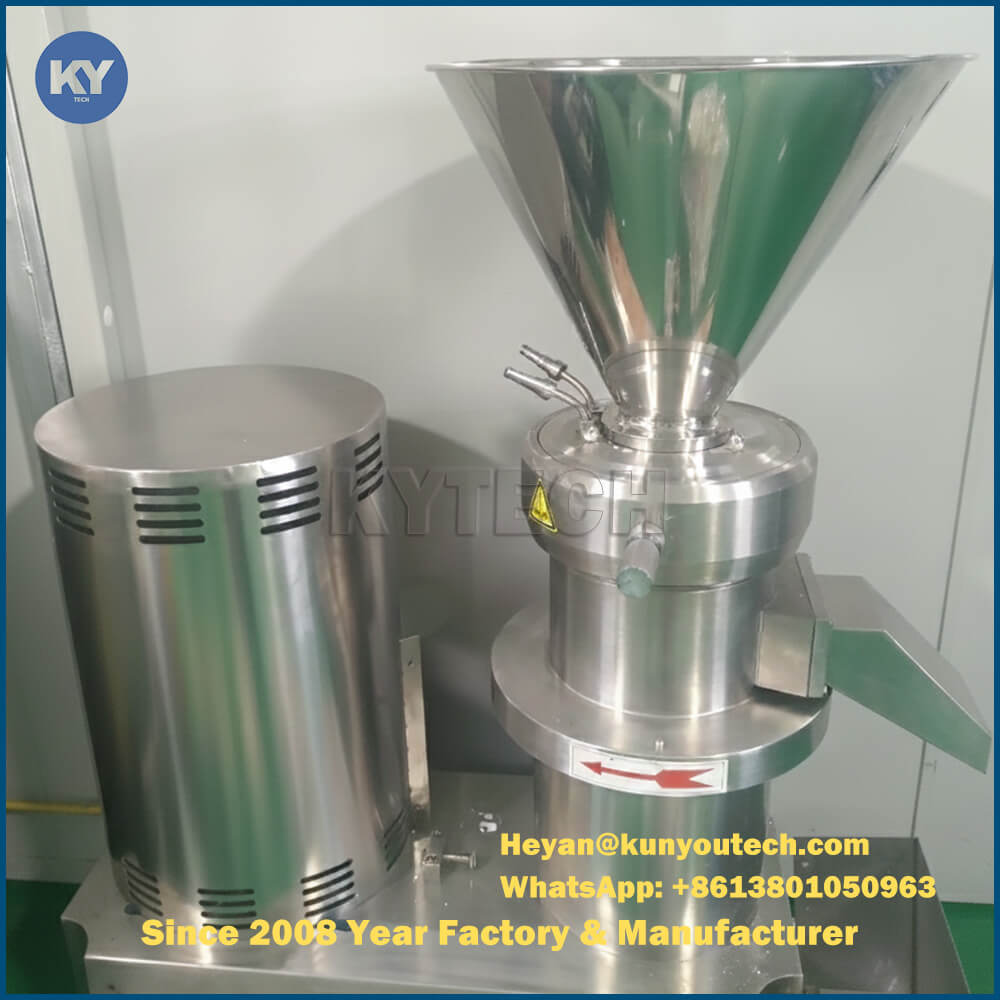

The major working parts, rotator and stator, are made by advanced technology and excellent processing. The adjusting ring, with the measuring scales on it, it ‘s easy to read, use and can make micro-adjustments between the spaces so as to ensure the quality of products. According to different raw material, rotators and stators made of various ingredients are available in our company. They are all easy to disassemble and clean.

Colloid Mill features excellent breaking,emulsifying, homogenous and uniform mixing capability. For most solid materials, their grinding particles can reach diameters of three micrometers and homogenous rates of above 90%, which make the colloid mill an ideal processing facility for ultrafine particles. The machine can perform similar machinery tasks of homogenous machine, ball mill, three-roller polishing machine, agitator and plasm-grinding machine.



Specification



Name

Standing colloid mill

Variable speed colloid mill

Type

JM-80
(J)

JM-130
(J)

JMS-50

JMS-80

JMS-130

Material processing size(µm)(single cycle or multi-cycle)

2-50

2-50

2-50

2-50

2-50

Capacity (t/h)(change with the nature of material

0.07-0.5

0.5-2

0.005-0.03

0.007-0.5

0.5-2

Power of main electrical motor(kw)

4

11

1.1

4

11

rpm of electrical motor (r/min.)

2890

2930

1750-5000

1600-5000

1750-5000

Overall size (L x W x H) mm

45
*
46
*
133

55
*
55
*
140

53
*
26
*
58

68
*
38
*
93

99
*
44
*
105

Gross weight (kg)

190

320

70

210

420





Competitive advantage

1.colloid mill economimc equipment to process colloid
2. homogenous rate more than 90%.
3. Meet the GMP standard
4.All parts contacting the material are made of stainless steel
5.Cooling type: Water-cool



Colloid Machine and Colloid Equipment for JM series colloid mills are superfine processing mills for grinding wet materials .
