High Precision Pharmaceutical Machinery With Small Load Space

China High Precision Pharmaceutical Machinery With Small Load Space supplier

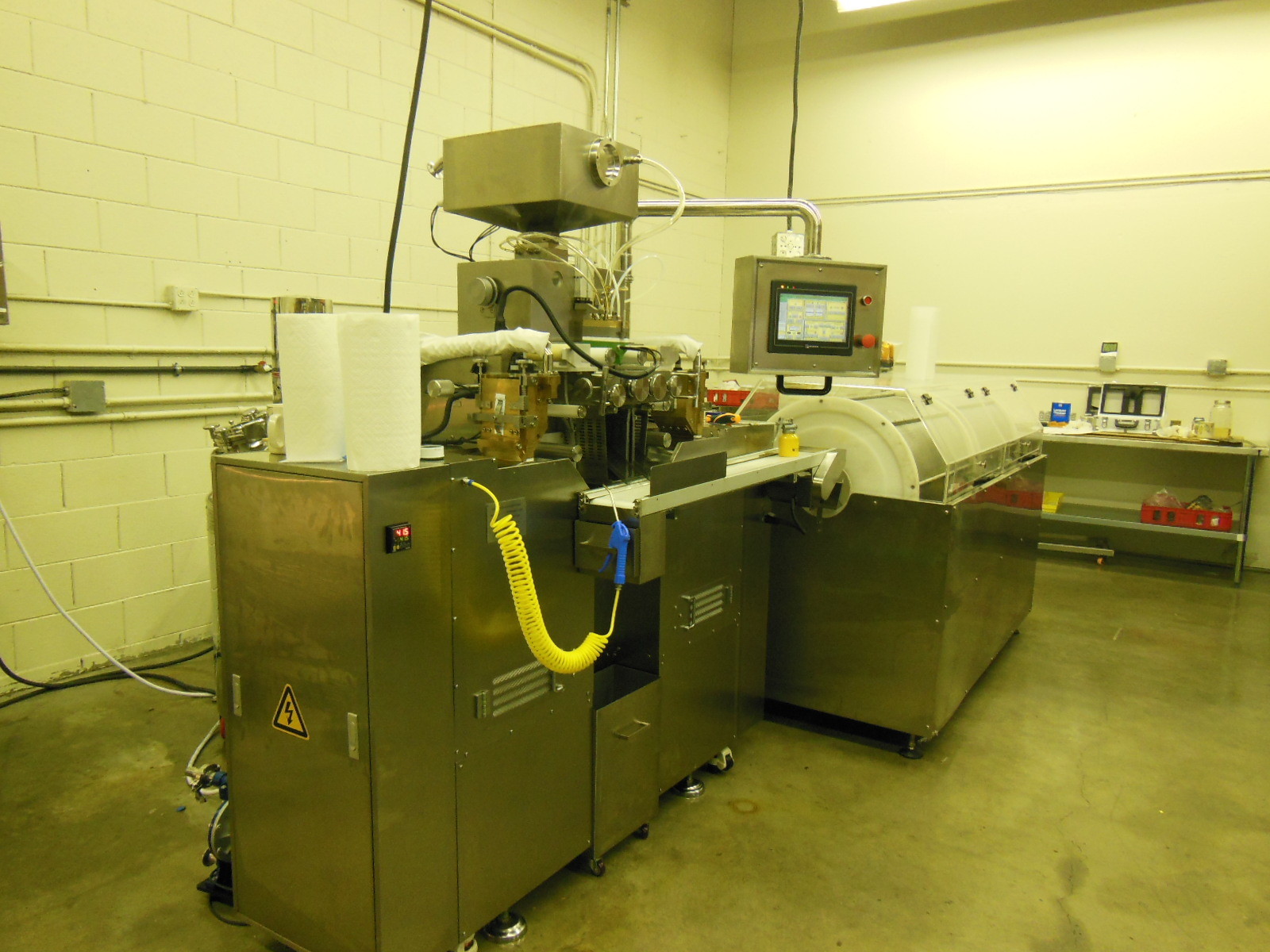

Large Image :  High Precision Pharmaceutical Machinery With Small Load Space

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S403

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30-90 days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets
Contact Now
Detailed Product Description





High Precision Pharmaceutical Machinery With Small Load Space





Quick Detail



Product Name

Soft Capsule Encapsulation Machine

Driven Type

Electric

Capacity

22800 pcs/hour, 4r/min

Material

Stinless Steel

Application

Food, pharmaceutical,softgel making machine

Capsule shape

OV, OB,etc





Production Description



S403 soft capsule making machine is specially for laborotary and small scale production. It's elaborately designed strictly according to the requirements of GMP. The whole set of the manufacturing line is simple but efficient with a small space. In the manufacturing line, including a main machine, control system, water cooling system, lubrication oil saving system, a set of tumble dryer, one set of die roll and KUN YOU gelatin reactor. All the spare parts or other material are selected according to the requirements of GMP.

This machine is the absorption of advanced technologies at home and abroad, based on a combination of soft capsule production process and the characteristics of the use advanced technology and high quality materials.

This machine consist of soft capsule machine, sol pot, mould (die roll), capsule conveyor, tumbler dryer, cooling air machine, vacuum pump, drying tray, vacuum mixing barrel and electrical control system and other ancillary equipment.

This machine cans all kinds of drugs, food, cosmetics, oils and hydrophobic substances in the quantitative suspension or paste injection pressure and encapsulated in gelatin membrane, the formation of various sizes in sealing the soft capsules.

This machine is widely used in laboratory, and small scale production.



Applications:


It's widely used in pharmaceutical industries, cosmetic and food industries.



High Precision Pharmaceutical Machinery With Small Load Space



Specification



Model

S403

Die roll size

Ф80X100mm

Die roll speed

0~5rpm

Overall dimension

1250×400×2300mm

weight

600kg

Power supply

380V/240V,50/60HZ

Power of the main motor

1.1kw

Power of the main machine

3kw





S403 R&D softgel encapsulation machine

Shape

Capsules/hour

2r/min

3r/min

4r/min

5#OV

12600

18900

25200

8#OV

11400

17100

22800

10#OV

8640

12960

17280

11#OB

7200

10800

14400

16#OB

6840

10260

13680

20#OB

6480

9720

12960

24#OB

6120

9180

12240

Paintball

7200

10800

14400

6#round

14280

21420

28560









































Competitive Advantage:



1. Small size, low energy consumption

2. Easy to operate and clean

3. High precision

4. Small load space

5. Gelatin ribbon micro lubrication system

6. Important parts use aviation grade high wear-resisting material



Softgel making machine,Soft capsule making machine,Soft capsule encapsulation machine,Softgel machine,Soft capsule manufacturing machine,Softgel manufacturing machine,Softgel making equipment
