Food / Pharmaceutical Machinery Softgel Encapsulation Machine / Paintball Maker

1 set
MOQ
Food / Pharmaceutical Machinery Softgel Encapsulation Machine / Paintball Maker
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

pharma packaging machinery

,

automatic capsule machine

Basic Infomation
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S406
Payment & Shipping Terms
Packaging Details: Wood cages
Delivery Time: 20-60 days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets
Product Description





Food / Pharmaceutical Machinery For Softgel / Paintball Maker / 43470 Capsules / Hour





Quick Detail



Product Name

Soft capsulate/Paintball making machine

Driven Type

Electric

Capacity

43470 Capsule /hour, 8#OV

18000 Paintball/hour, 0.68"Ball

Control Mode

Full Automatic

Application

Food, pharmaceutical, fish oil making

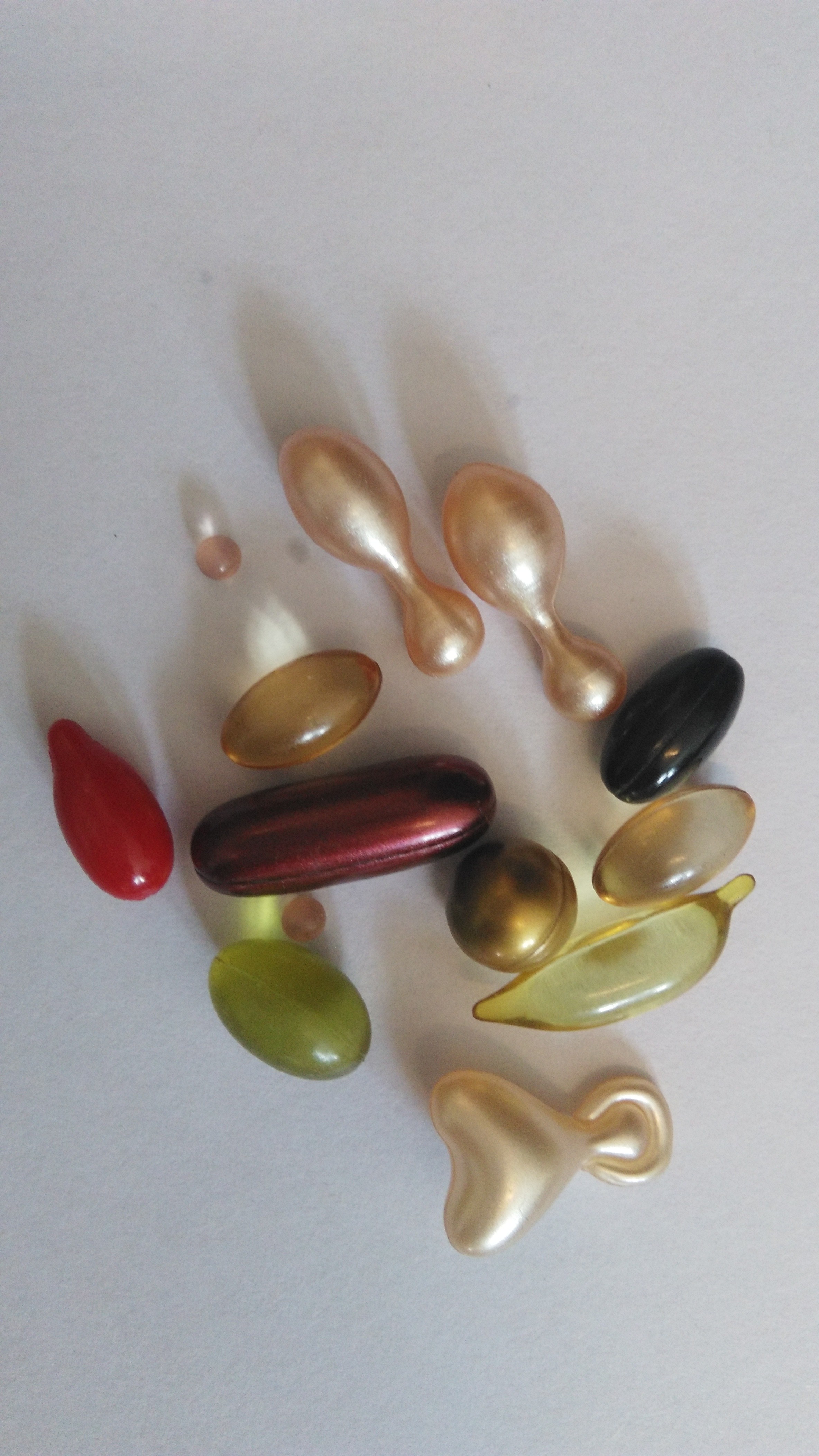

Capsule shape

OV, OB,etc

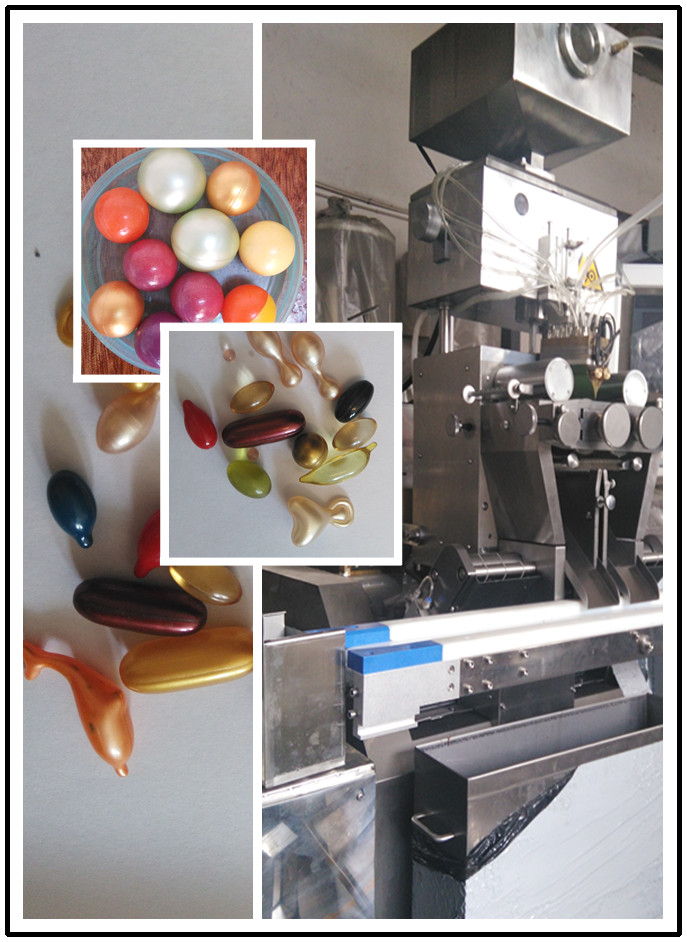

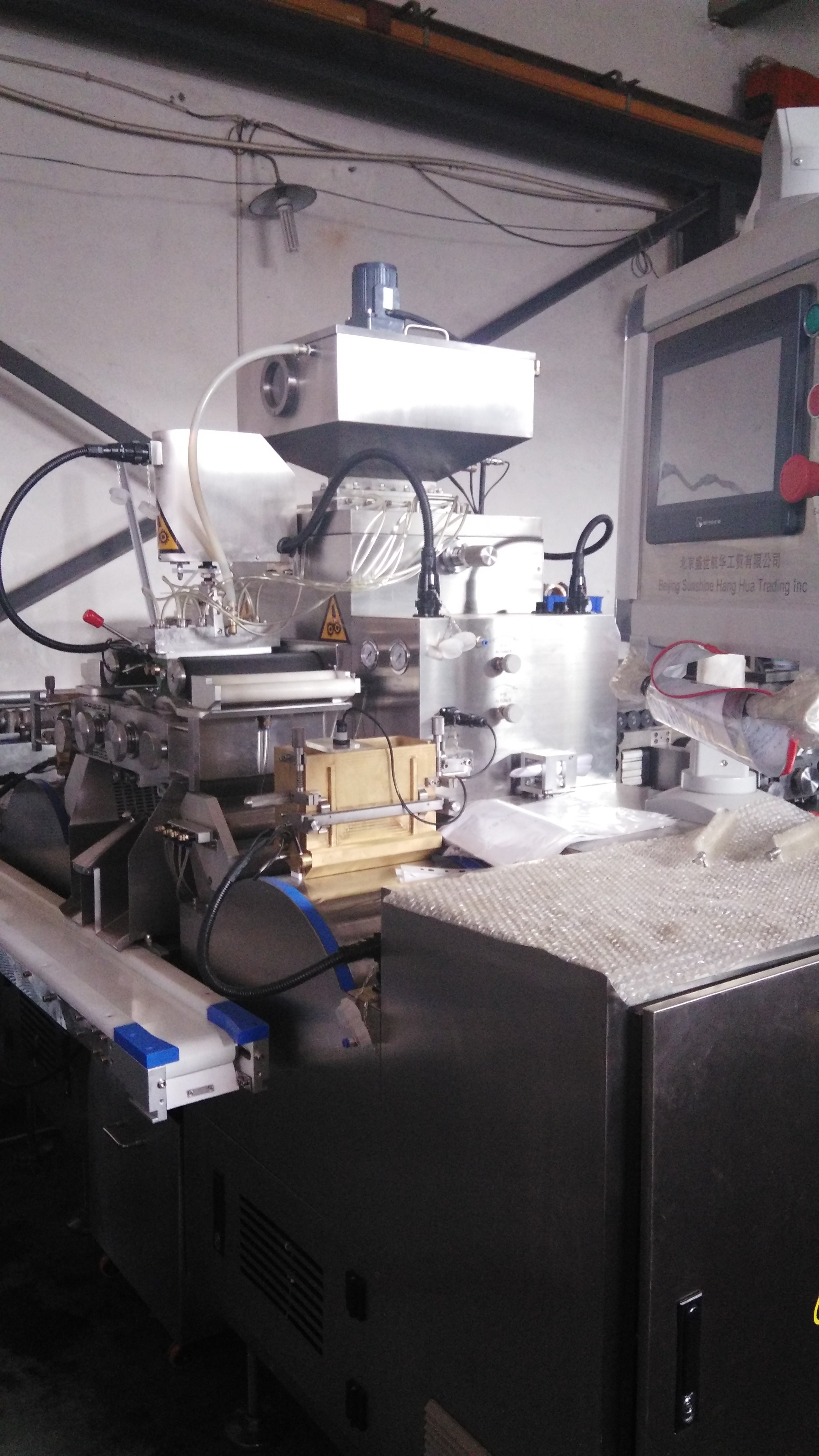

Food / Pharmaceutical Machinery Softgel Encapsulation Machine / Paintball Maker 0



Product Description



S406 soft capsule filling machine is suitable for medium scale production. Soft capsule making machine is used for making soft capsules, such as fish oil soft capsules, Vitamin E soft, Omega-3 and food capsules, etc.



Soft capsule making machine abosorbs advanced technologies at home and abroad, based on a combination of soft capsule production process and the characteristics of the use advanced technology and high quality materials to meet the GMP requirements of well-designed.



Capsule making machine consist of soft capsule machine, sol pot, mould (die roll), capsule conveyor, tumbler dryer, cooling air machine, vacuum pump, drying tray, vacuum mixing barrel and electrical control system and other ancillary equipment.



This machine can be applied to all kinds of drugs, food, cosmetics, oils and hydrophobic substances in the quantitative suspension or paste injection pressure and encapsulated in gelatin membrane, the formation of various sizes in sealing the soft capsules.



Specification



Model

S406

Die roll diameter

Ф103mm

Die roll length

152mm

Die roll speed

0~5rpm

Plunger numbers

10

Dosage tolerance

± 2%

dimension

880X640X1900mm

weight

900kg

Power consumption

7kw

Control mode

PLC+HMI Switch/buttons

Output rate

8#OV 43470 pcs/hour







Competitve Advantages



1. Good stability

2. Adjustable rotation rate during 0-5rpm

3. Easy to operate and clean, conforming to GMP

4. Compact and beautiful

5. It can be assembled or disassembled with single hand

6. Big air flow

7. Reduce the oil consumption

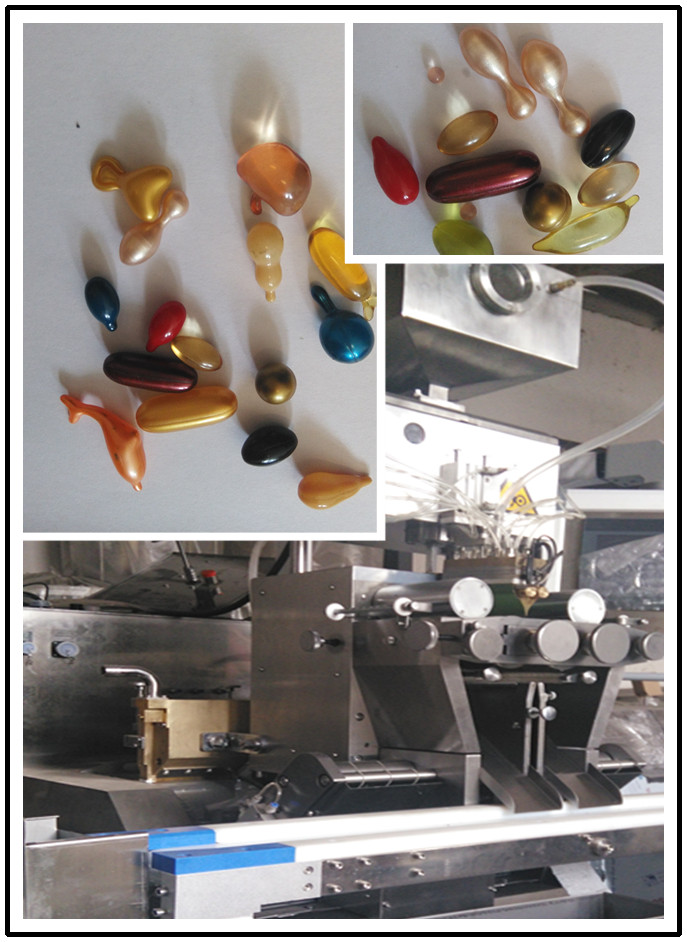

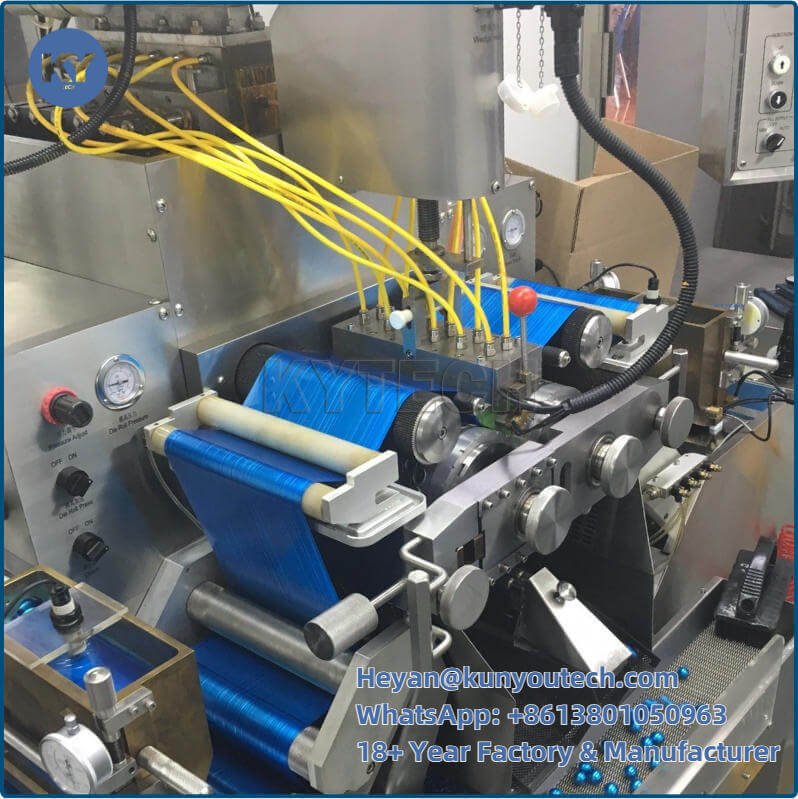

Food / Pharmaceutical Machinery Softgel Encapsulation Machine / Paintball Maker 1

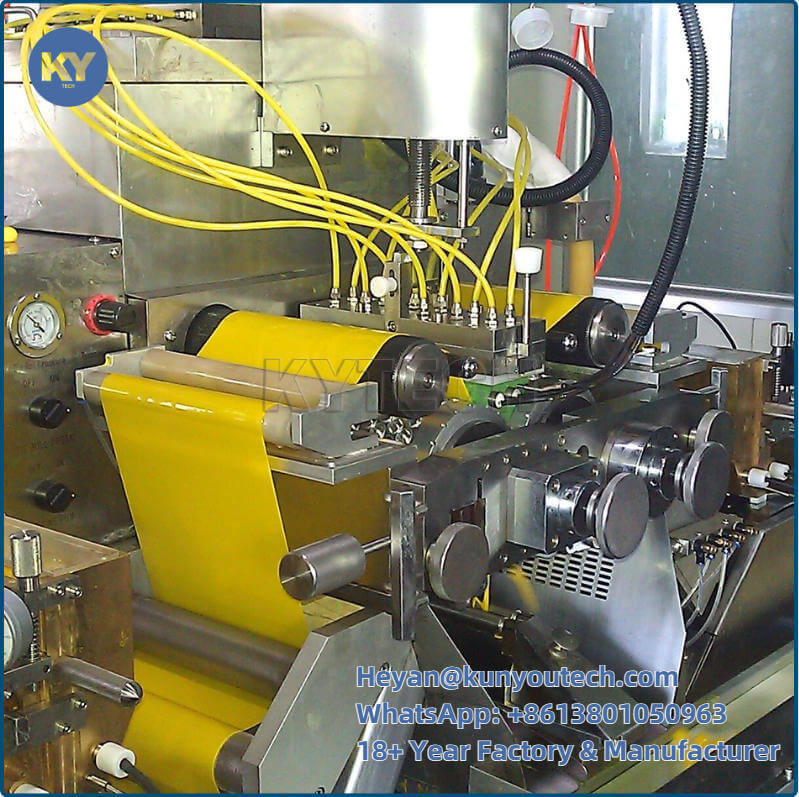

Food / Pharmaceutical Machinery Softgel Encapsulation Machine / Paintball Maker 2

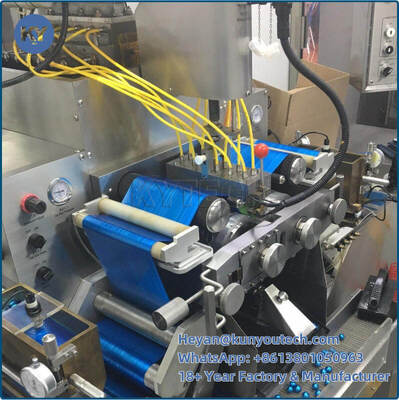

Food / Pharmaceutical Machinery Softgel Encapsulation Machine / Paintball Maker 3

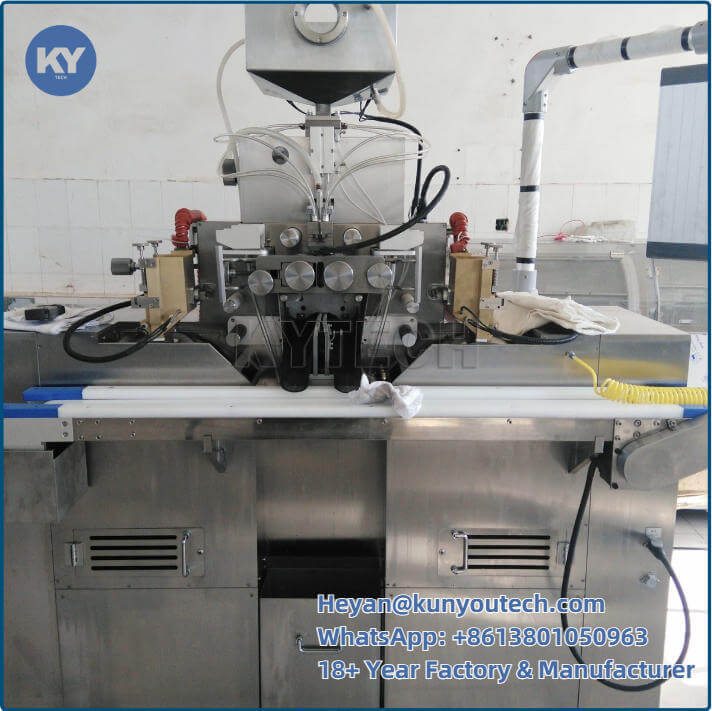

Food / Pharmaceutical Machinery Softgel Encapsulation Machine / Paintball Maker 4

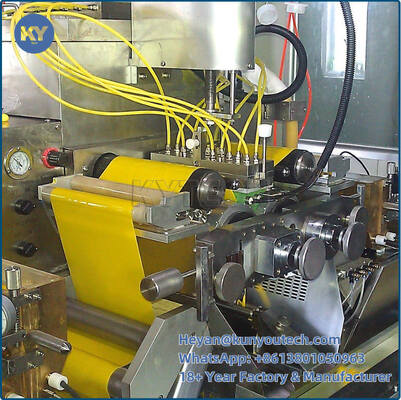

Food / Pharmaceutical Machinery Softgel Encapsulation Machine / Paintball Maker 5

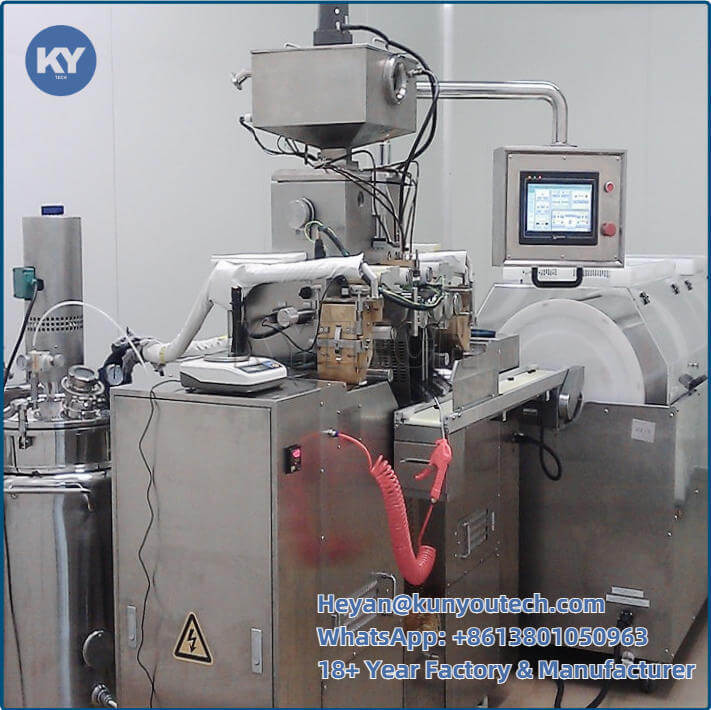

Food / Pharmaceutical Machinery Softgel Encapsulation Machine / Paintball Maker 6
