Coconut Oil Encapsulation Softgel Capsule Production Line Electric Driven Type

Coconut Oil Encapsulation Softgel Capsule Production Line Electric Driven Type

  • Coconut Oil Encapsulation Softgel Capsule Production Line Electric Driven Type
  • Coconut Oil Encapsulation Softgel Capsule Production Line Electric Driven Type
  • Coconut Oil Encapsulation Softgel Capsule Production Line Electric Driven Type
  • Coconut Oil Encapsulation Softgel Capsule Production Line Electric Driven Type
  • Coconut Oil Encapsulation Softgel Capsule Production Line Electric Driven Type
Coconut Oil Encapsulation Softgel Capsule Production Line Electric Driven Type
Product Details:
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S406
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 35000USD per set
Packaging Details: Wood cages
Delivery Time: 20-60 days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets
Contact Now
Detailed Product Description
MATERIAL: SS316 CAPACITY: 2-80000 CAPSULE /HOUR
TECHNION: Avaliable Main Market: USA ,european
Fcatory: Yes Relative Product: Avaliable
High Light:

soft gel encapsulation machine

,

automatic capsule filling machine

 COCONUT OIL ENCAPSULATION SOFTGEL CAPSULES PRODUCTION LINE

Quick Detail



Control

PLC+Touch Screen

Driven Type

Electric

Capacity

43470pcs /hour, 8#OV

Control Mode

Full Automatic

Application

Food, pharmaceutical, fish oil making

Capsule shape

OV, OB,etc







Product Description



S406 soft capsule filling machine is suitable for medium scale production. Soft capsule making machine is used for making soft capsules, such as fish oil soft capsules, Vitamin E soft, Omega-3 and food capsules, etc.



Soft capsule making machine abosorbs advanced technologies at home and abroad, based on a combination of soft capsule production process and the characteristics of the use advanced technology and high quality materials to meet the GMP requirements of well-designed.

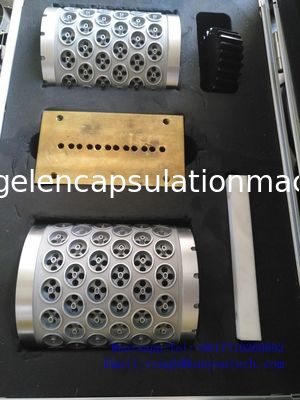

Capsule making machine consist of soft capsule machine, sol pot, mould (die roll), capsule conveyor, tumbler dryer, cooling air machine, vacuum pump, drying tray, vacuum mixing barrel and electrical control system and other ancillary equipment.



This machine can be applied to all kinds of drugs, food, cosmetics, oils and hydrophobic substances in the quantitative suspension or paste injection pressure and encapsulated in gelatin membrane, the formation of various sizes in sealing the soft capsules.





Specification



Model

S406

Die roll diameter

Ф103mm

Die roll length

152mm

Die roll speed

0~5rpm

Plunger numbers

10

Dosage tolerance

± 2%

dimension

880X640X1900mm

weight

900kg

Power consumption

7kw

Control mode

PLC+HMI Switch/buttons

Output rate

8#OV 43470 pcs/hour





Competitve Advantages



1. Good stability when the machine run

2. Adjustable rotation rate during 0-7

3. Easy to operate and clean, conforming to GMP

4. Compact and beautiful

5. It can be assembled or disassembled with single hand

6. Big air flow in the cooling drum .water and air cooling

7. Reduce the oil consumption

8.Low electricity consumption

9. Clutch in th die roll control,easy to change die roll for different shape and size in the softgel capsule production.

10.High precision in the machine, the die roll shaft prarellelism is in 0.02mm

11.Certificate of all parts such as nylon, SS





Coconut Oil Encapsulation Softgel Capsule Production Line Electric Driven Type 0

Detail

Coconut Oil Encapsulation Softgel Capsule Production Line Electric Driven Type 1
