Compact SS316 Softgel Encapsulation Machine with Dosage Deviation < ±2% and Pneumatic Wedge Lift for Pharmaceutical Enterprises

1 set
MOQ
35000-85000USD per set
Price
Compact SS316 Softgel Encapsulation Machine with Dosage Deviation < ±2% and Pneumatic Wedge Lift for Pharmaceutical Enterprises
Features Gallery Product Description Request A Quote
Features
Specifications
Origin: China，beijing
Machine Material: SS316
Capacity: R&D-80000per Hour
Use: Capsule Like Canabis Oil
Payment: Any Kind
Brand: Kunyou/Sunshine
Type: Filling Equipment
Highlight:

soft gelatin encapsulation machine

,

automatic capsule machine
Basic Infomation
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S407
Payment & Shipping Terms
Packaging Details: Wood cages
Delivery Time: 60-80 days
Payment Terms: T/T， L/C,Western Union,MoneyGram,
Supply Ability: 30 Set/Sets Per Year
Product Description
Pharmaceutical Softgel Encapsulation Machine SS316 Machine Material

High-performance Softgel Encapsulation Machine designed for pharmaceutical enterprises, featuring SS316 machine material construction. Capable of producing 50,000-70,000 capsules per hour for both animal and vegetable gelatin formulations.

Quick Specifications
Product Name Soft capsule Filling Machine
Power Consumption 13 kW
Control Mode PLC + Touch screen
Plunger Numbers 12
Dimension 880 × 2200 × 2000 mm
Dosage Deviation < ±2%
Product Description

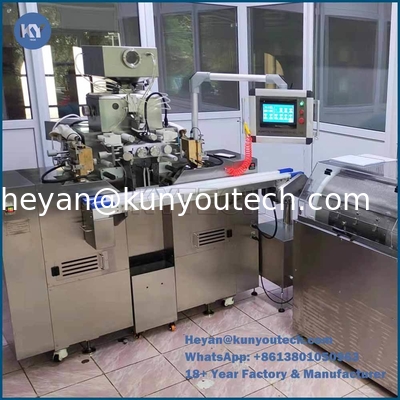

The S407 Softgel Encapsulation Machine is an advanced model developed from the S406, featuring a 20mm longer die roll. This pharmaceutical-grade machine combines international technology standards with practical user requirements, offering superior performance and operational convenience through PLC control.

Key Features
  • Precision dosage control with < ±2% deviation
  • Porous stainless steel oil roller material
  • Main shaft parallel degree <0.02mm
  • Micro gelatin ribbon oil lubrication system
  • Precision temperature control for injection wedge, spreader box and chilled water
  • Pneumatic wedge lift and left die shaft movement
  • Operation parameters storage and recall function
  • Motor-driven lubrication pump for improved performance
  • Fault diagnosis and reminder system
  • Statistical statement generation and printing capability
Technical Specifications
Model S407
Die Roll Ф103 × 172 mm
Die Roll Speed 0-7 rpm
Plunger Numbers 12
Overall Dimension 880 × 2200 × 2000 mm
Weight 1200 kg
Output Rate 50,000-70,000 pcs/hour (animal gelatin)
30,000-50,000 pcs/hour (animal-free gelatin)
Competitive Advantages
  • Enhanced production efficiency with PLC operation
  • Variable speed control (0-7 rpm)
  • Compact, ergonomic design with single-hand operation capability
  • Reduced oil consumption with optimized lubrication
  • Automatic or separate adjustment options
  • Integrated production counting system
  • Extended die roll life through pneumatic operation
  • Waterproof and oil-proof cable connections
  • Enhanced safety features throughout operation
Applications

Ideal for softgel manufacturing in pharmaceutical enterprises, research institutions, and universities. Suitable for producing pharmaceutical capsules, nutritional supplements, and specialized formulations requiring precise encapsulation.

Related Products

Soft capsule/softgel making machine, paintball making machine, tumble drying machine, gelatin melting tank
