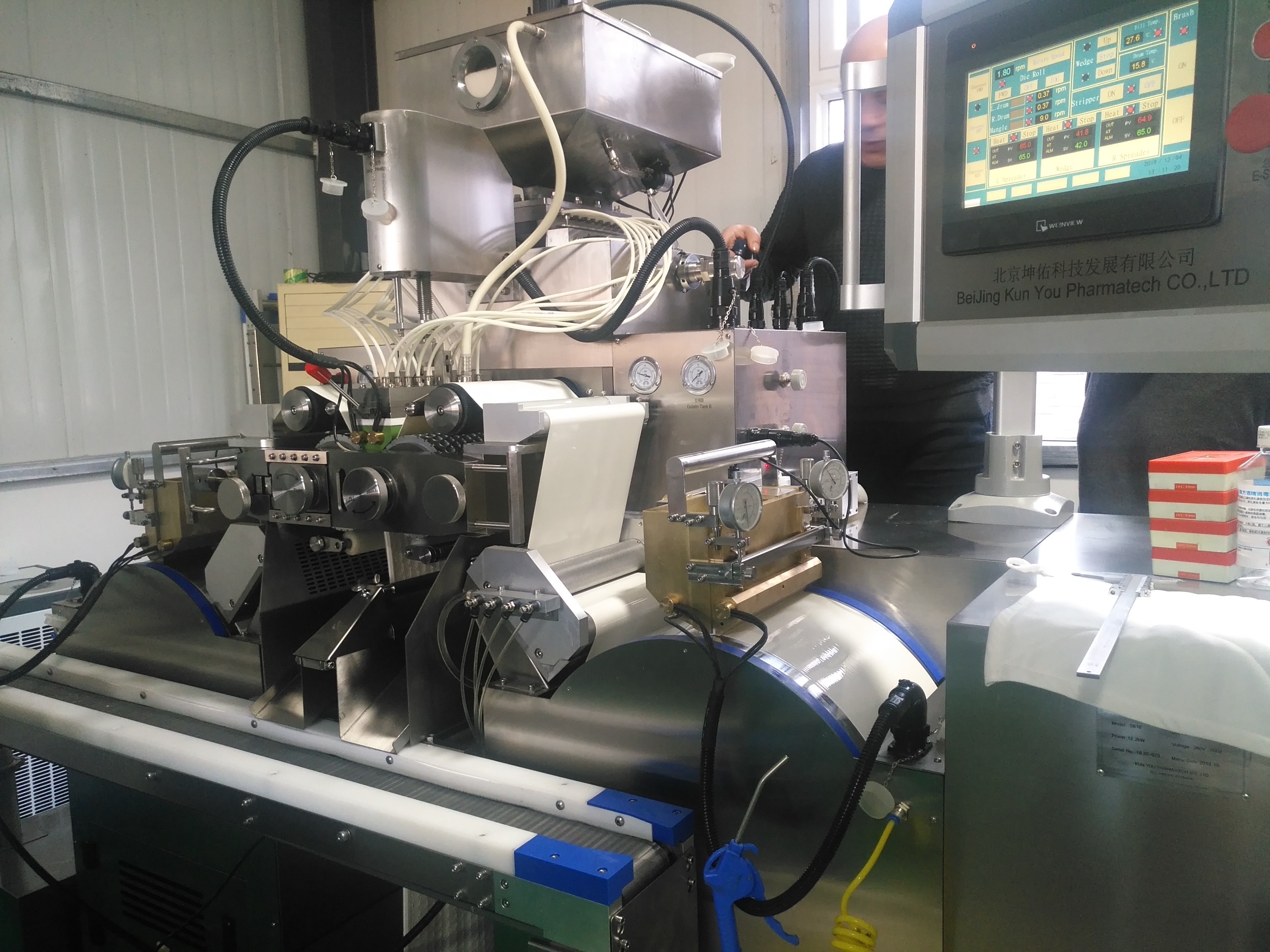

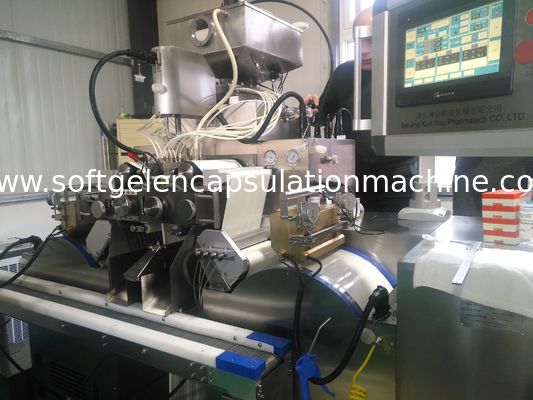

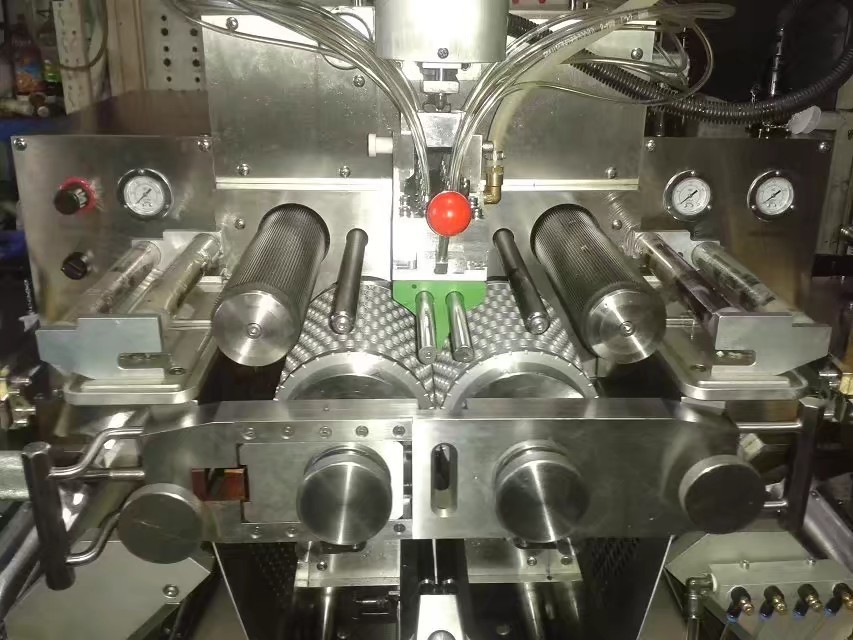

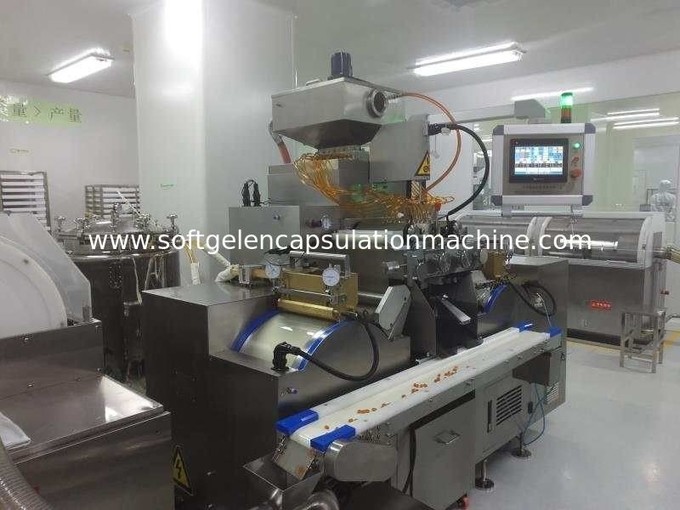

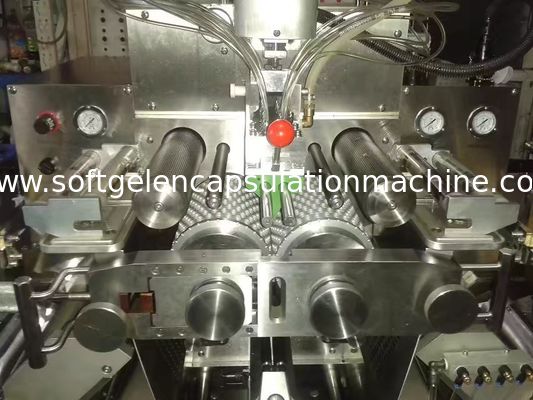

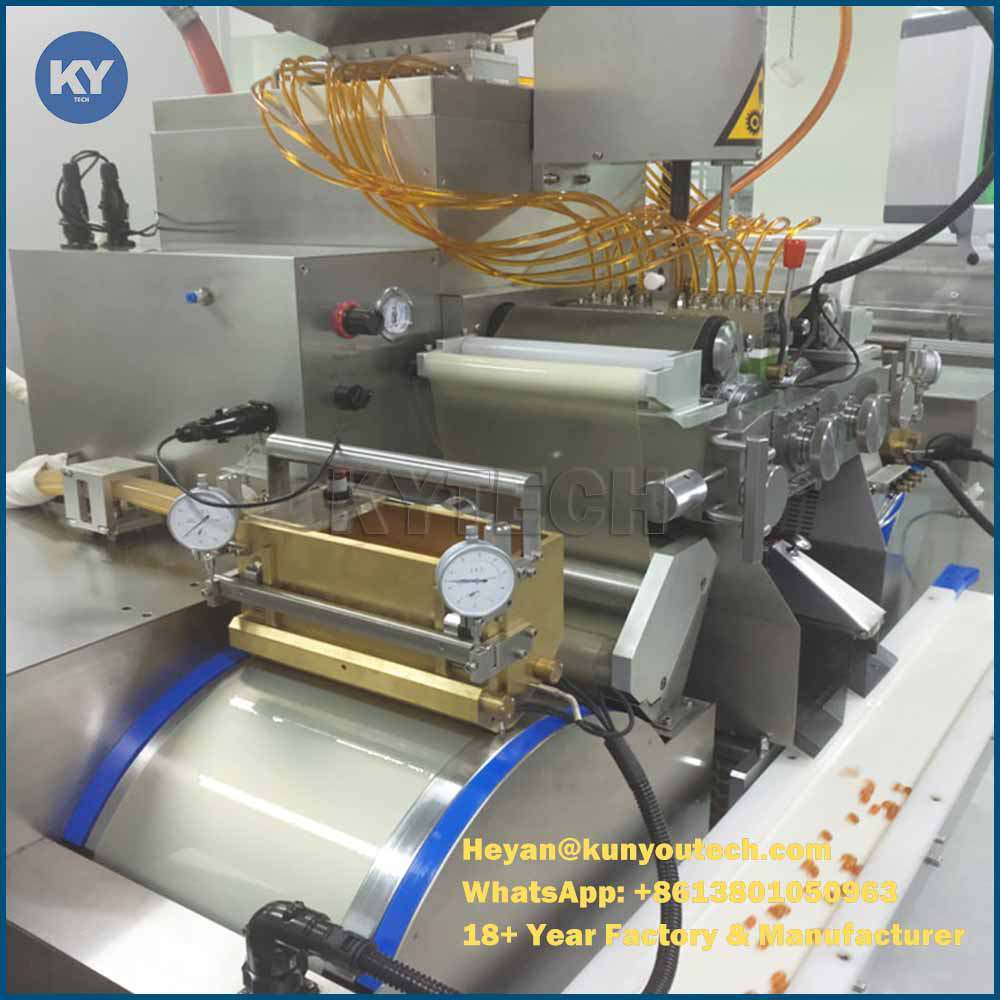

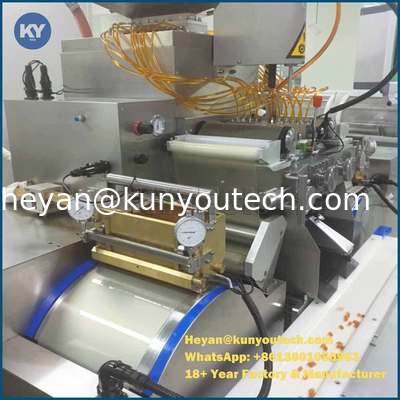

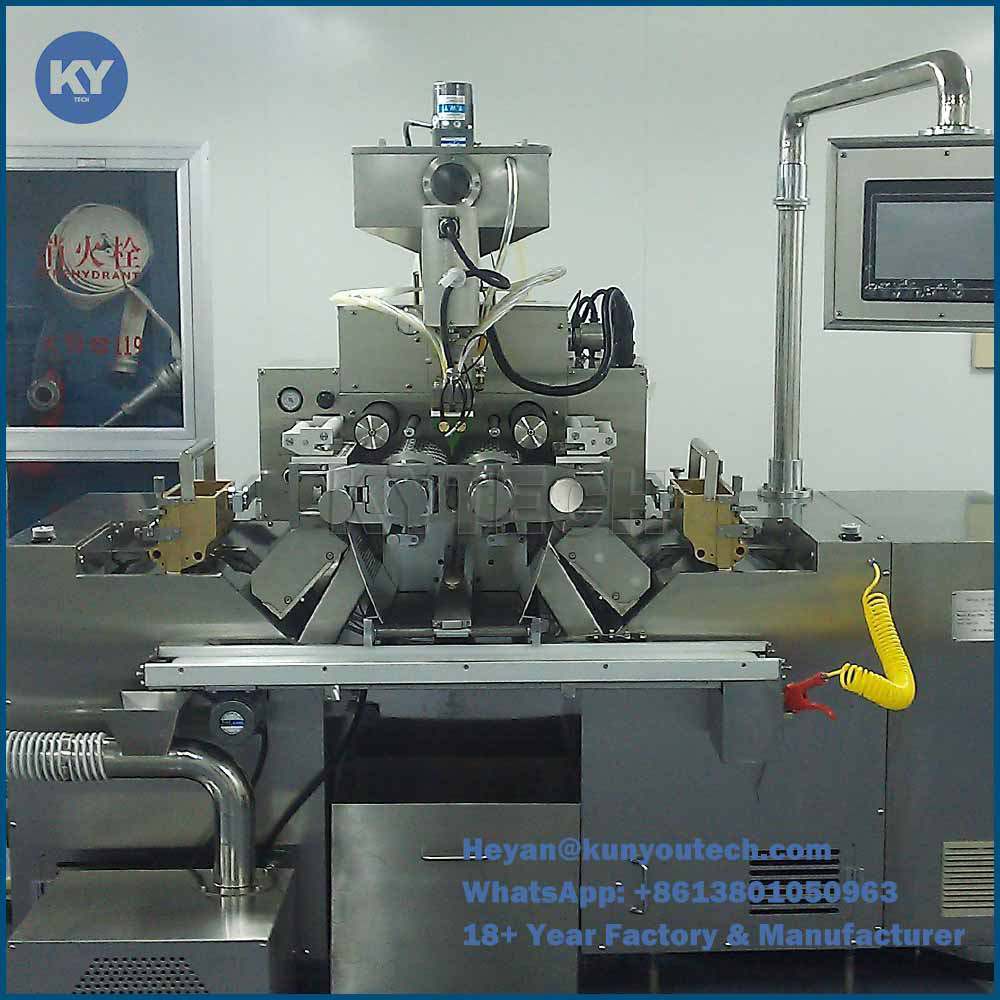

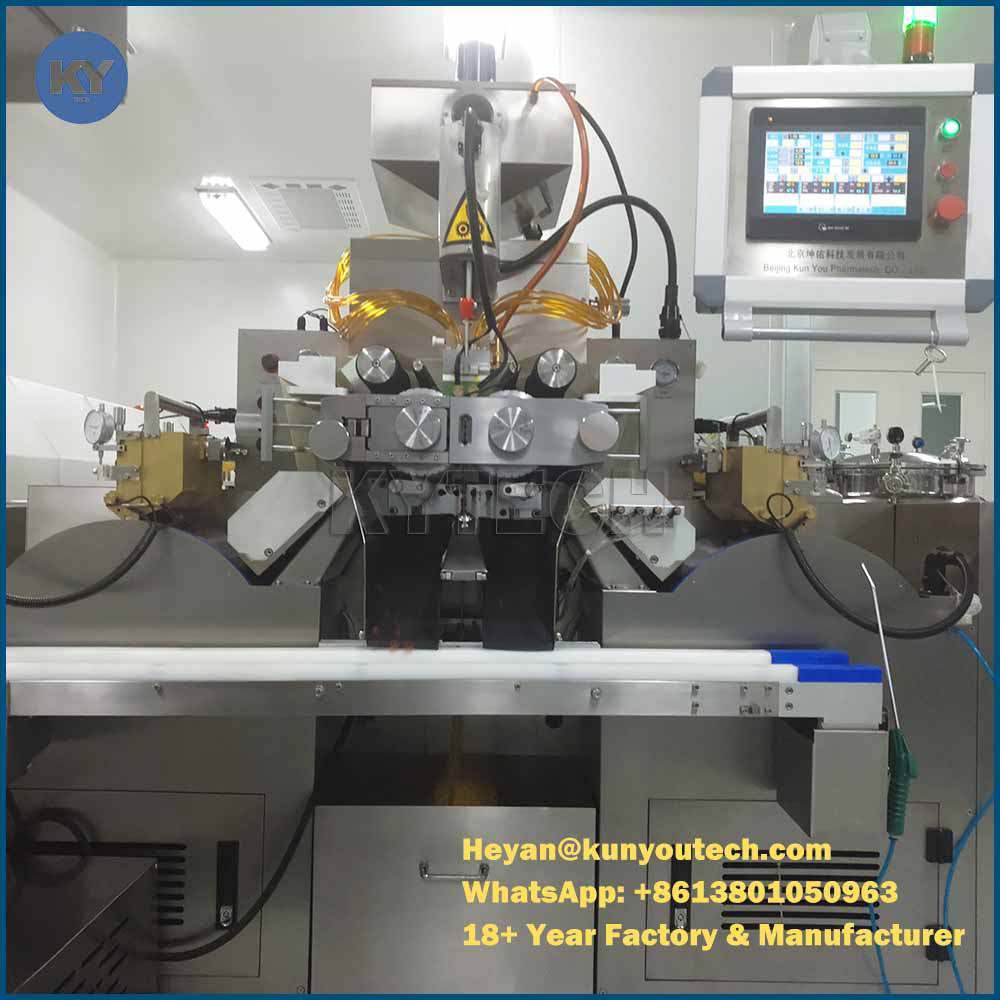

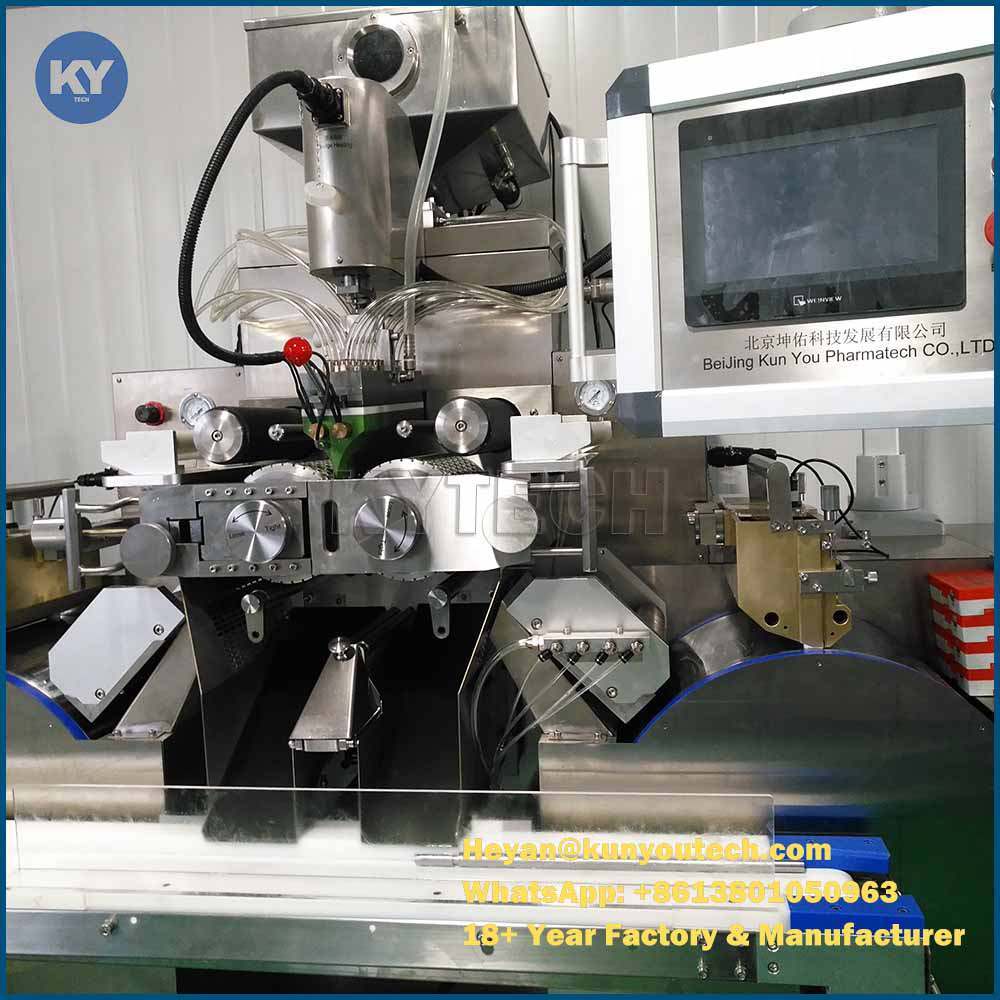

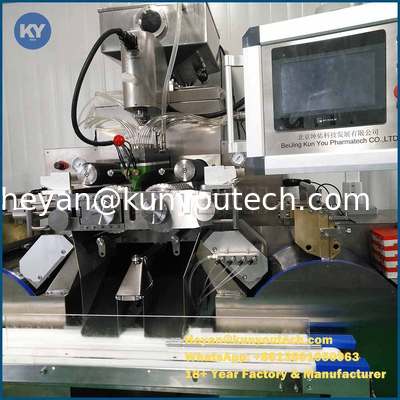

Pharmaceutical Softgel Encapsulaton Machine For Making Fish Oil / 120000 Pcs / H Max
Quick Detail
|
Product Name |
softgel automatic machine |
Driven Type |
Electric |
|
Brand Name |
KUN YOU |
Material |
Stainless Steel |
|
Application |
Food , Pharmaceutical,softgel making machine |
Capsule shape |
OV, OB,etc |
Production Description

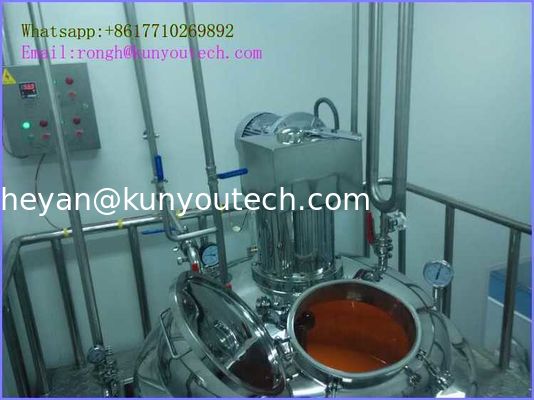

Our company is a professional supplier for softgel making machine and paintball making machine. Our softgel making machine is divided into three models, small model, medium model and large model. For small scale softgel production, our S403 R&D softgel making machine maybe fit for your requirements, it can produce about 20000 pcs softgels per hour. And S406 Softgel Encapsulation Machine is suitable for medium scale production, its production rate can get to 40000 pcs softgels per hour. The largest model, S610 Softgel Encapsulation Machine can produce 120000 pcs softgels per hour. We provide the whole line of softgel making, including the gelatin melting system, fill material system, softgel encapsulation machine and softgel drying machine. All the machine is made of high quality stainless steel and spare parts from famous brands. And we adopt the gelatin ribbon micro lubrication system.
Applications:
It’s mainly for softgel and paintball making enterprises and pharmaceutical enterprises, especially for R&D department of laboratories, pharmaceutical factories in the universities and plant health products and Research Institutes.It also can suitable for cosmetic manufactures, such as bath beads and Collagen capsule.
Specification
|
Model |
S403 |
S406 |
S407 |
S610 |
|
Die roll diameter(mm) |
80 |
103 |
103 |
150 |
|
Die roll length(mm) |
100 |
152 |
172 |
250 |
|
Die roll speed |
0-5 |
0-5 |
0-7 |
0-5 |
|
Plunger Qty. |
6 |
10 |
12 |
20 |
|
Dimension |
1450×600×1350 |
880×640×1900 |
800×2200×2000 |
2050×1200×1850 |
|
Weight(kg) |
600 |
900 |
1200 |
1900 |
|
Power(kw) |
2kw |
7kw |
13kw |
20kw |
|
control |
PLC.touch screen |
|||
Detail;
Softgel making machine,Soft capsule making machine,Soft capsule encapsulation machine,Softgel machine,Soft capsule manufacturing machine
What is the specifications of Automatic softgel encapsulation machine ?
1)According to client's sepcial requirements, provides the special design such as oxgency pretection;
2)So many optional devices for clients to choose from R&D to big scale production.
3)Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch and electric control system, the man-machine interface is friendly.
4)Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.
5)Automatic checking: with servo motor ,the machine can run at 7rpm
6)Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.
7)Main shaft parallelism is in 0.02mm
8)The die roll adjust and changment with clitch control ,save gelatin and time, easily operate
8)Use the Germany bearing; .
9)The shaft of the 2 rollers for die roll deviation is in 1.5%.
10)With Worm gear, the gear and shaft adopt special material with high accurary and long service life
11) Medicine hopper adopts thermial insulation design
12) Local language input in machine avaliable.
Product samples.
Softgel capsule with starch material
