| Place of Origin: | China,Beijing |
| Brand Name: | Kunyou |
| Certification: | CE,ISO9001 |
| Model Number: | S610 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wood cages |
| Delivery Time: | 30-90 days |
| Payment Terms: | T/T， L/C, Western Union |
| Supply Ability: | 30 Set/Sets Per Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Weight: | 1800 Kg |
|---|---|---|---|
| Warranty: | 1 Year | Material: | 304/316L Stainless Steel |
| Condition: | New | Packaging Type: | Capsule,Bottles |
| Packaging Material: | Gelatin | ||
| High Light: | automatic capsule filling machine,capsule maker machine |
||

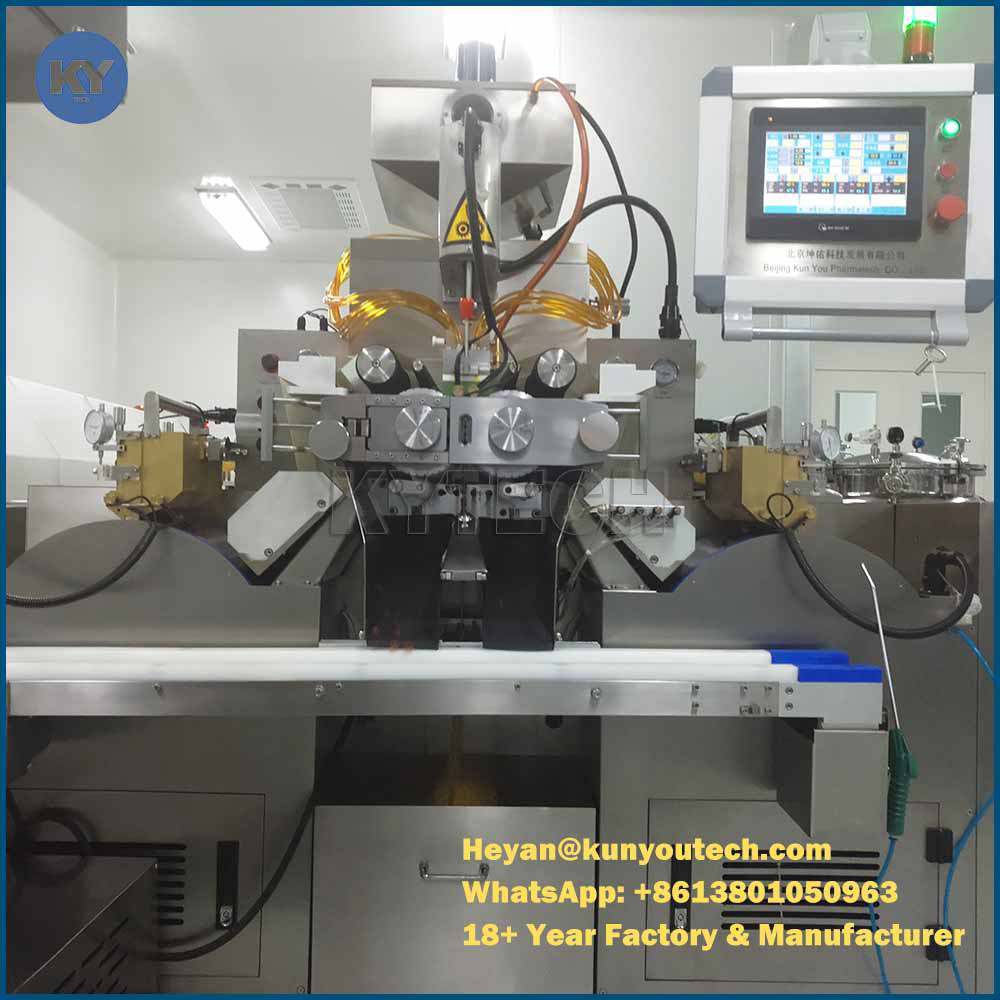

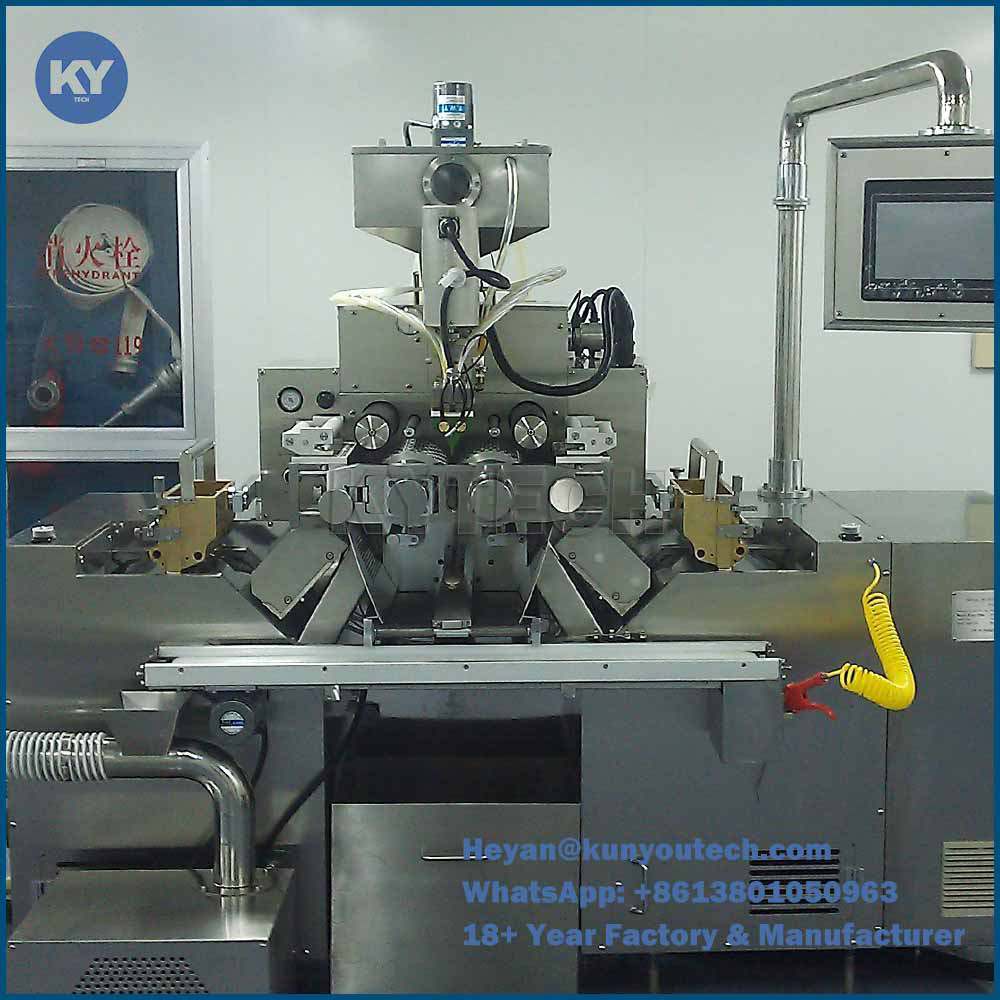

Oval / Oblong Oil Soft Capsule Making Machines
Quick Detail
Product Name | Large scale Softgel encapsulation machine | Driven Type | Electric |
Capacity | 120000pcs /hour, 8#OV | Dosage deviation | <±1.5% |
Application | Food, pharmaceutical,softgel making machine | Control | PLC+Touch Screen |
Product Description
Model | S610 |
Die roll size | 150×250mm |
Die roll speed | 0~5rpm |
Max plunging volume per stroke | 0~2ml |
Plunger numbers | 20/24 |
Overall dimension | 2050×1200×1850 |
Weight of main machine | 1900kg |
Power consumption | 20 kw |
Control mode | PLC+Touch Screen |
output | 8#OV120000 pcs/hour |
Geltain room: cleanliness class 300,000, temperature 20~24℃, relative humidity <60%.
If the original factory building is not high enough, pressure can also be used to force the release of glue), the rubber tank needs to build a rubber platform, platform height of 2 m..
The chemical glue room should be provided with floor drain, water vapor discharge, should be led to the outdoor.
Chemical glue auxiliary machine room: can be self-made one room, can also be combined with the chemical gel room in one room; there is steam in, water into the water out
final drying Room: temperature should be 18~24℃, humidity 20~30%. The area is about 60 square meters.
In order to ensure a good process effect, the room is required for horizontal laminar flow wind. The room stacked the trays on the trolley.
Both the air tray and the trolley are made by the user. According to the requirements of the plant environment, the user selects the dehumidifier and purchases it.×× size ,40 pallets, can hold ten thousand grains. According to machine output, pallet vehicles are required
1. One of the earliest manufacturers in China to deeply study the soft capsule mould
2.The first manufacturer in China to sell products and services to the inventors of soft capsule machines
3.The only domestic manufacturer with a single order of up to 20 production lines
4.The first domestic manufacturer of soft capsule machines capable of producing high wear resistance pumps
5.The only can provide FDA certified soft capsule machine full set of verification documents manufacturers in Domestic
6.Suppliers of soft capsule machines with high degree of internationalization in China
