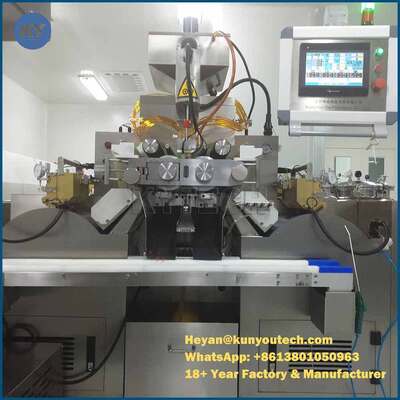

3 Kw Electric Laboratory Soft Gel Capsule Machine With PLC Control
Quick Detail
|
Overall Dimension |
1250×400×2300mm |
Driven Type |
Electric |
|
Capacity |
22800 pcs/hour, 4r/min |
Material |
Stinless Steel |
|
Application |
Food, pharmaceutical,softgel making machine |
Capsule shape |
OV, OB,etc |
Product Description

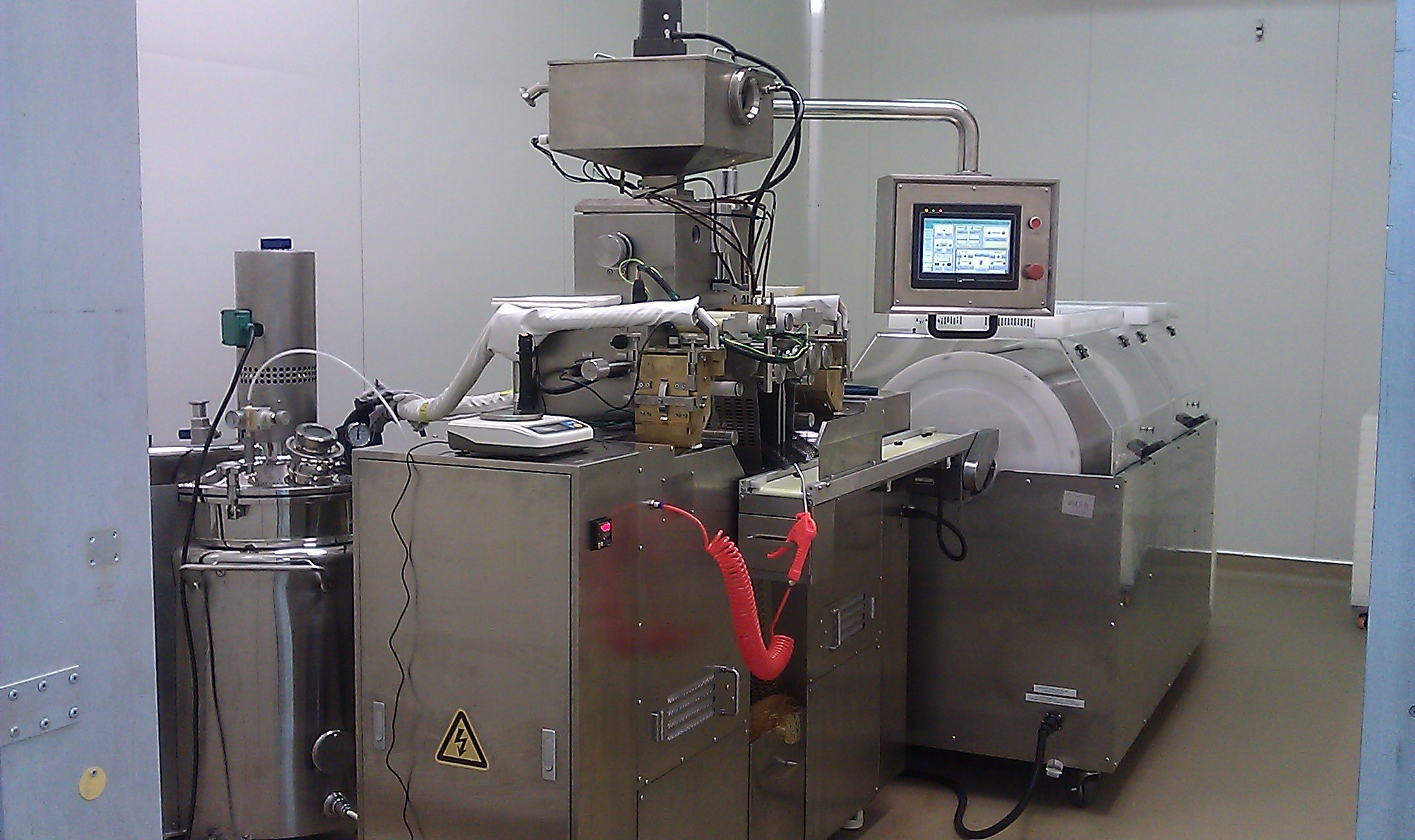

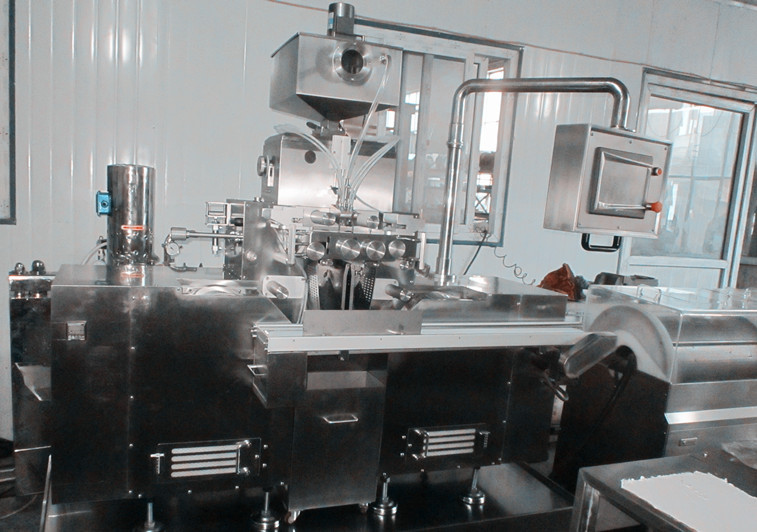

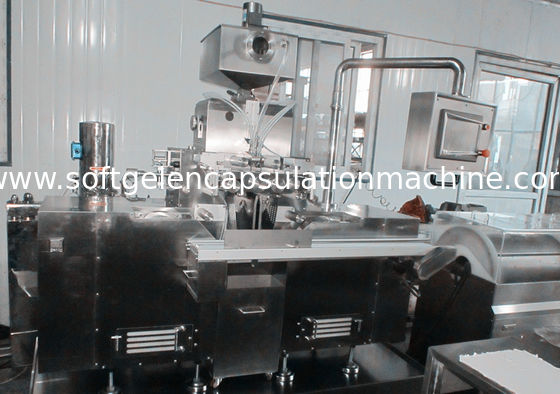

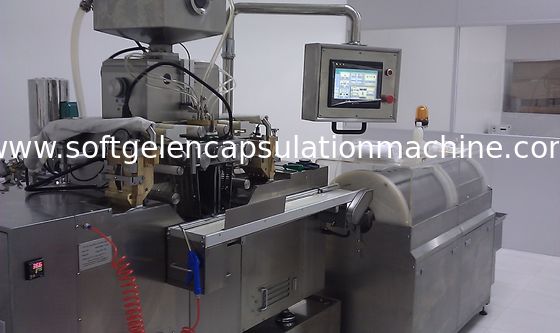

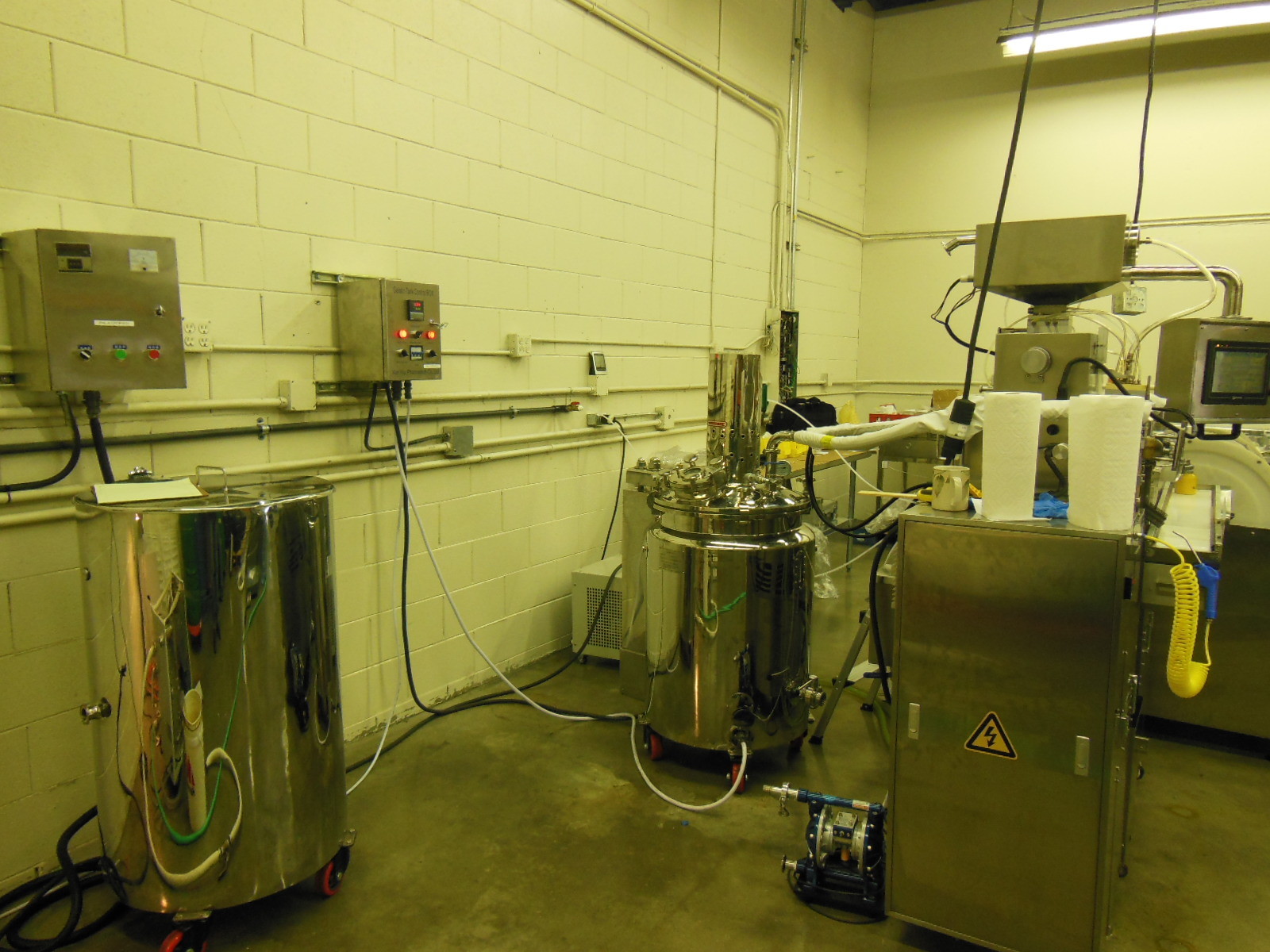

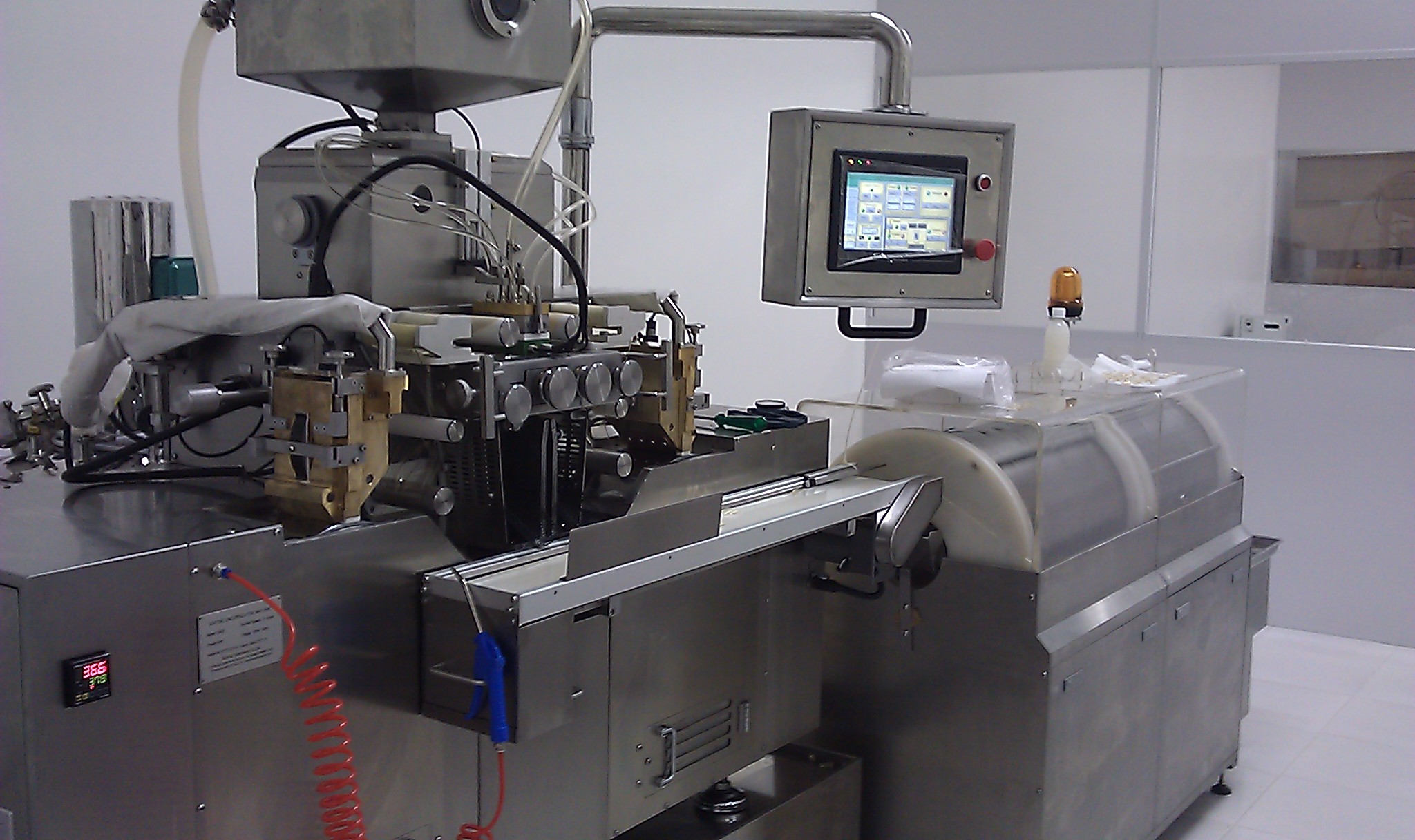

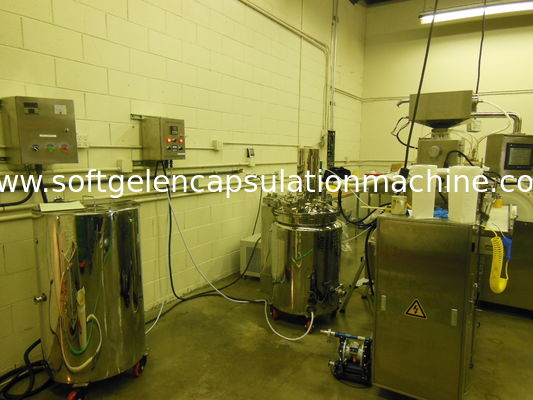

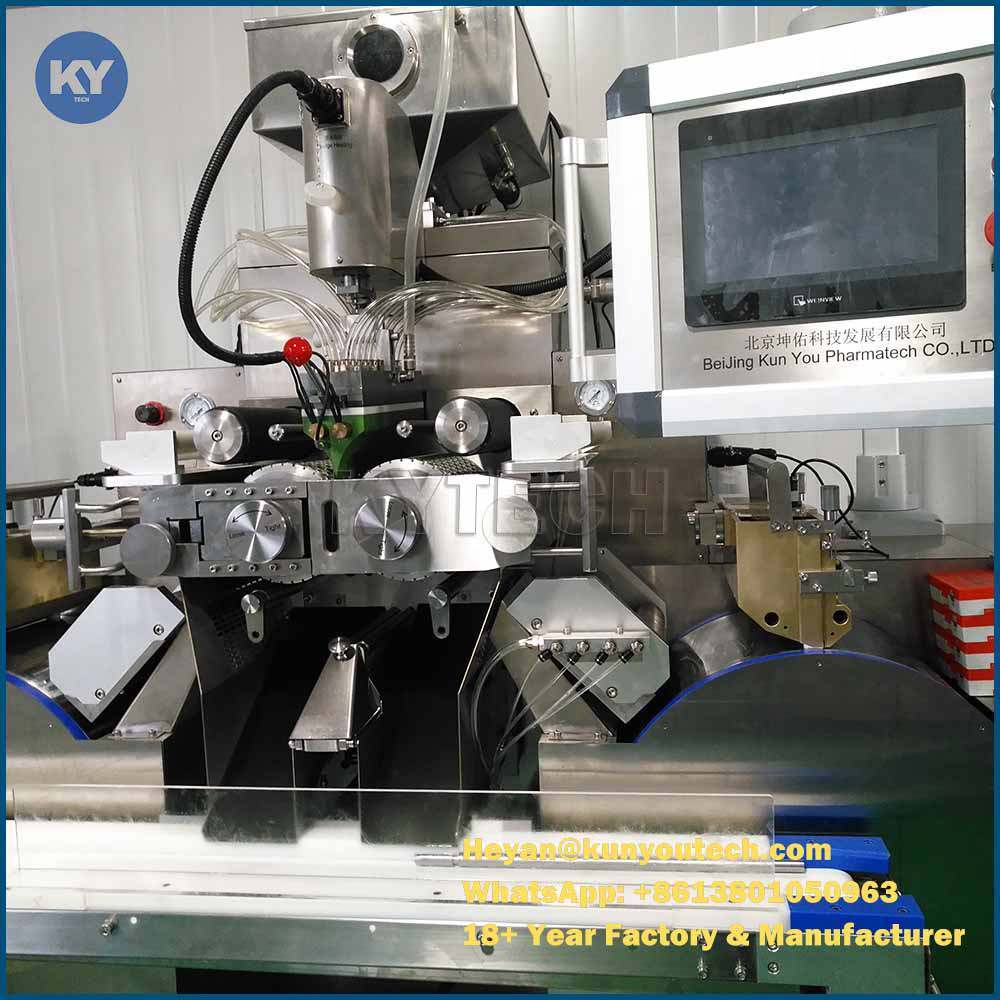

S403 soft capsule making machine is specially for laborotary and small scale production. It's elaborately designed strictly according to the requirements of GMP. The whole set of the manufacturing line is simple but efficient with a small space. In the manufacturing line, including a main machine, control system, water cooling system, lubrication oil saving system, a set of tumble dryer, one set of die roll and KUN YOU gelatin reactor. All the spare parts or other material are selected according to the requirements of GMP.
Thus making it applicable for pharmaceutical, nutrition food and cosmetic industries.
Applications:
It's widely used in pharmaceutical industries, cosmetic and food industries.
Specification
|
Model |
S403 |
|
Die roll size |
Ф80X100mm |
|
Die roll speed |
0~5rpm |
|
Overall dimension |
1250×400×2300mm |
|
weight |
600kg |
|
Power supply |
380V/240V,50/60HZ |
|
Power of the main motor |
1.1kw |
|
Power of the main machine |
3kw |
|
S403 R&D softgel encapsulation machine |
|||
|
Shape |
Capsules/hour |
||
|
2r/min |
3r/min |
4r/min |
|
|
5#OV |
12600 |
18900 |
25200 |
|
8#OV |
11400 |
17100 |
22800 |
|
10#OV |
8640 |
12960 |
17280 |
|
11#OB |
7200 |
10800 |
14400 |
|
16#OB |
6840 |
10260 |
13680 |
|
20#OB |
6480 |
9720 |
12960 |
|
24#OB |
6120 |
9180 |
12240 |
|
Paintball |
7200 |
10800 |
14400 |
|
6#round |
14280 |
21420 |
28560 |
Competitive Advantage:
1. Filling Tolerance<±1.5%
2. Easy to operate and clean
3. Die roll speed:0~5rpm, steplessly adjustable
4. Small load difference
5. Gelatin ribbon micro lubrication system
