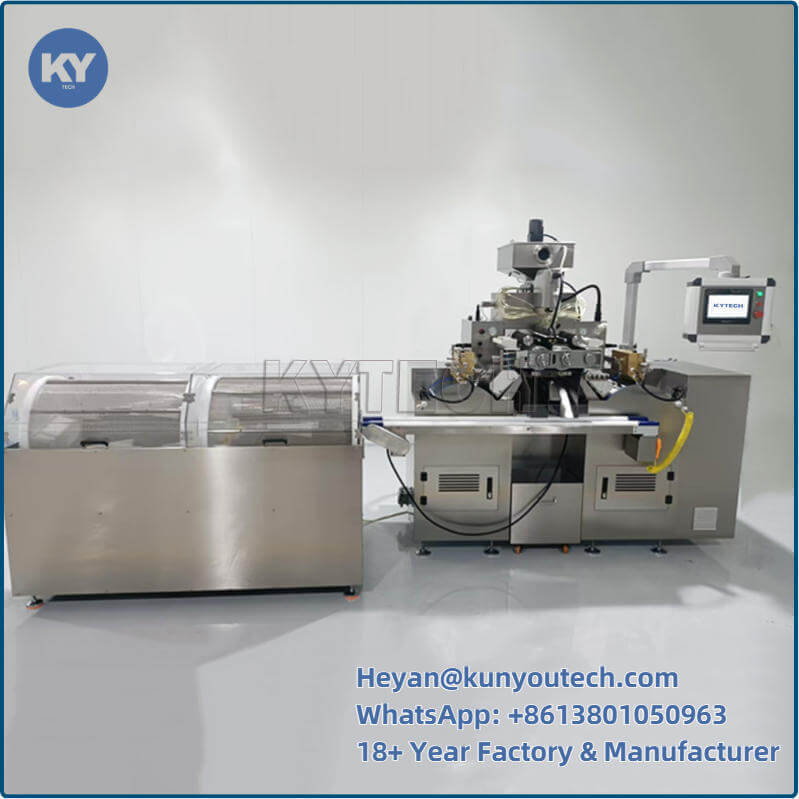

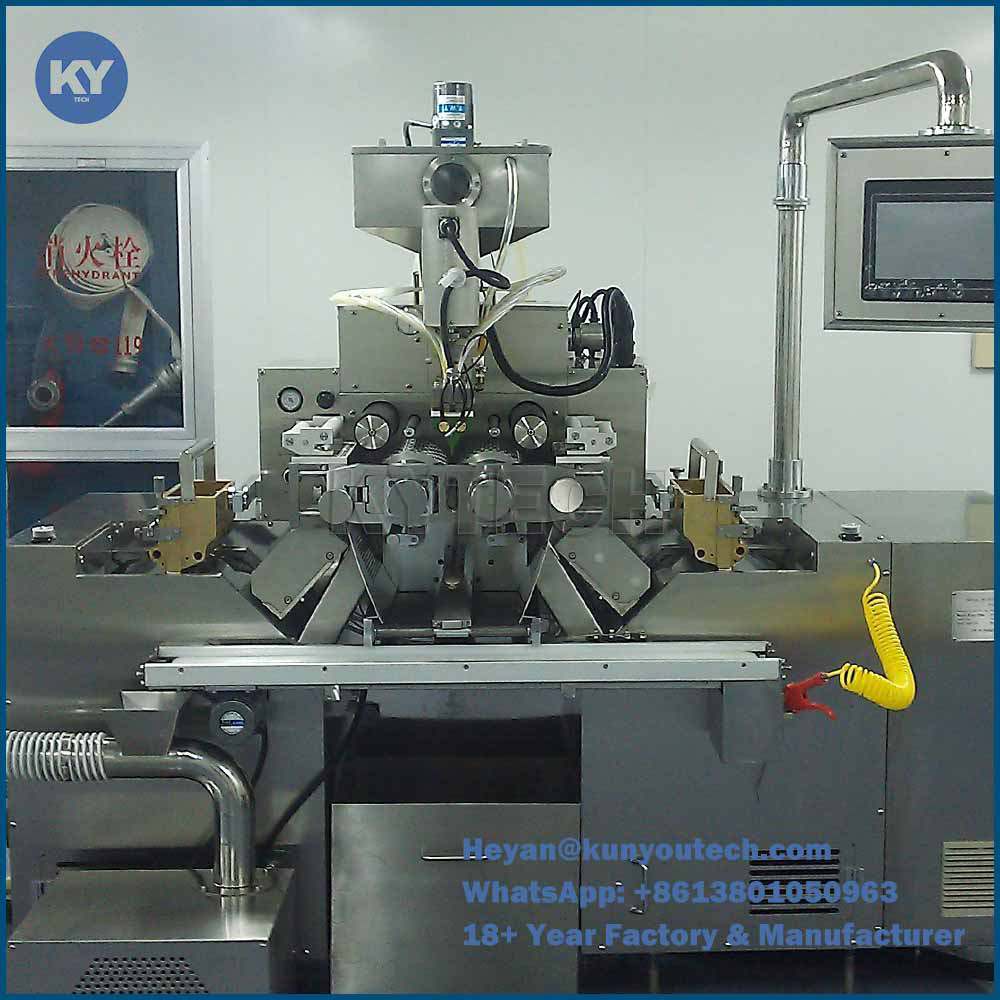

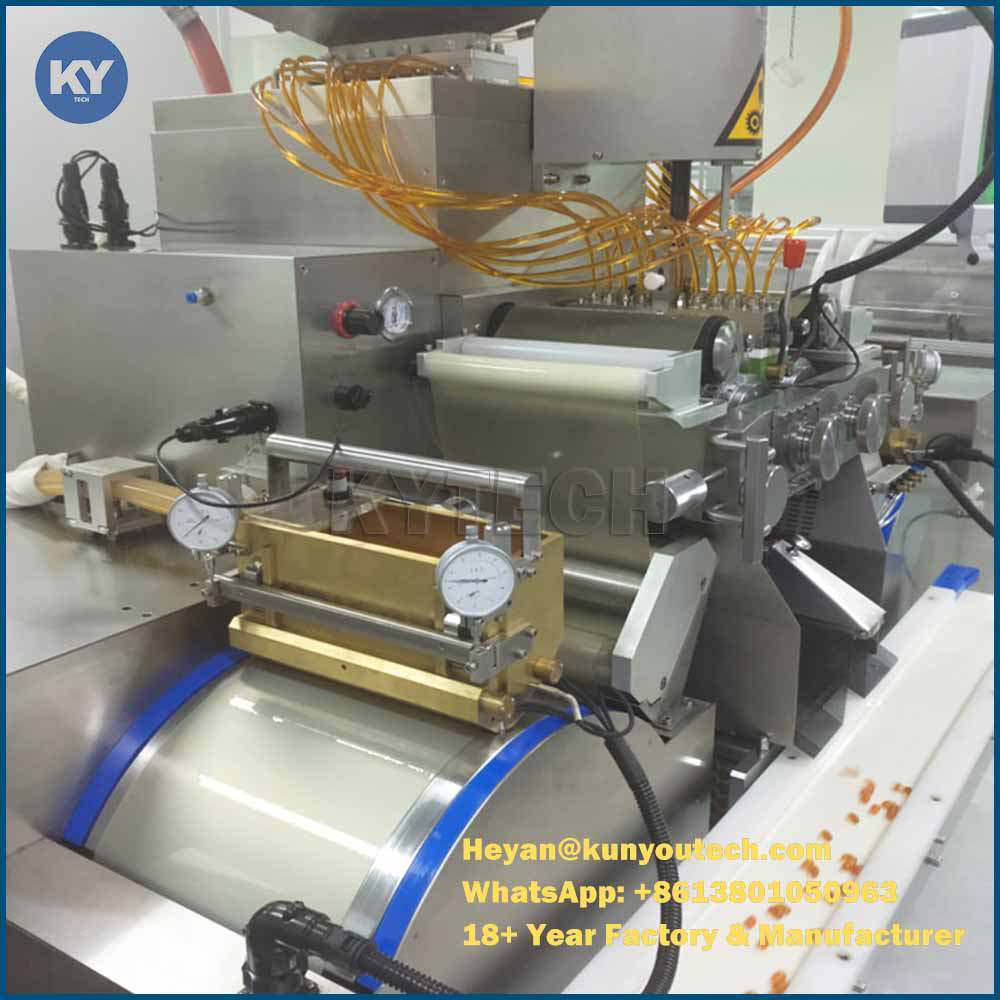

| Product Name | R&D type soft capsulate making machine | Driven Type | Electric |
| Capacity | 22800 pcs/hour, 4r/min | Material | Stinless Steel |
| Application | Food, pharmaceutical,softgel making machine | Capsule shape | OV, OB,etc |

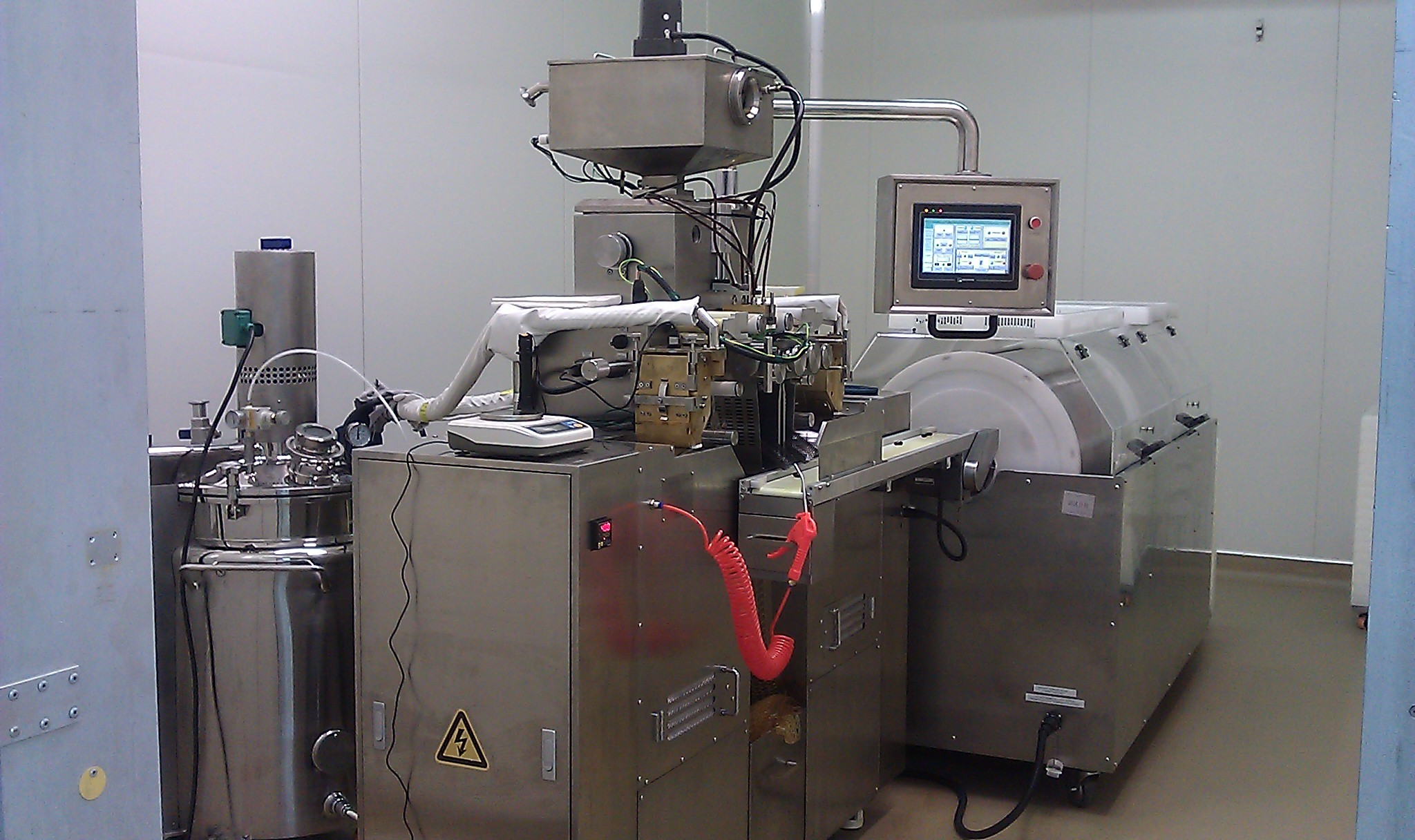

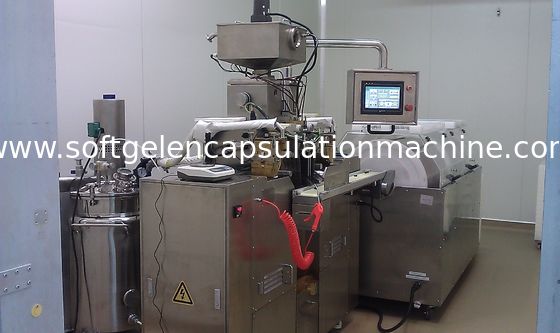

Softgel encapsulation machine can quantificationally inject the oil, mixing suspension and pasty mass into the capsule to form all kinds fo soft gel encapsulation with different size, shape and color. Because of the merits of high speed disintegration, easy to oral, hard to oxygenation, easy to store and take, the soft gel encapsulation is welcomed by more and more customers. Owing to the high productivity, charging exactly, quality stabilization, high finished product rate, it is favored by more and more manufacturers and used in the fields of medicine, health products, cosmetic and paintball and so on.
This machine is widely used in laboratory, and small scale production.
It's widely used in pharmaceutical industries, cosmetic and food industries.
| Model | S403 |
| Die roll size | Ф80X100mm |
| Die roll speed | 0~5rpm |
| Overall dimension | 1250×400×2300mm |
| weight | 600kg |
| Power supply | 380V/240V,50/60HZ |
| Power of the main motor | 1.1kw |
| Power of the main machine | 3kw |
| S403 R&D softgel encapsulation machine | |||
| Shape | Capsules/hour | ||
| 2r/min | 3r/min | 4r/min | |
| 5#OV | 12600 | 18900 | 25200 |
| 8#OV | 11400 | 17100 | 22800 |
| 10#OV | 8640 | 12960 | 17280 |
| 11#OB | 7200 | 10800 | 14400 |
| 16#OB | 6840 | 10260 | 13680 |
| 20#OB | 6480 | 9720 | 12960 |
| 24#OB | 6120 | 9180 | 12240 |
| Paintball | 7200 | 10800 | 14400 |
| 6#round | 14280 | 21420 | 28560 |
