Soft Capsule Making Machine / Hard TO Oxidate / Die Roll Ф103mm * 152mm
Quick Detail
|
Dimension(MM) |
880X640X1900mm |
Power consumption |
7 kw |
|
Pump type |
10 plungers |
Dosage Tolerance |
± 2% |
|
Advantage |
With economic price and lower using cost |
Packing Material |
Gelatin |
Product Description

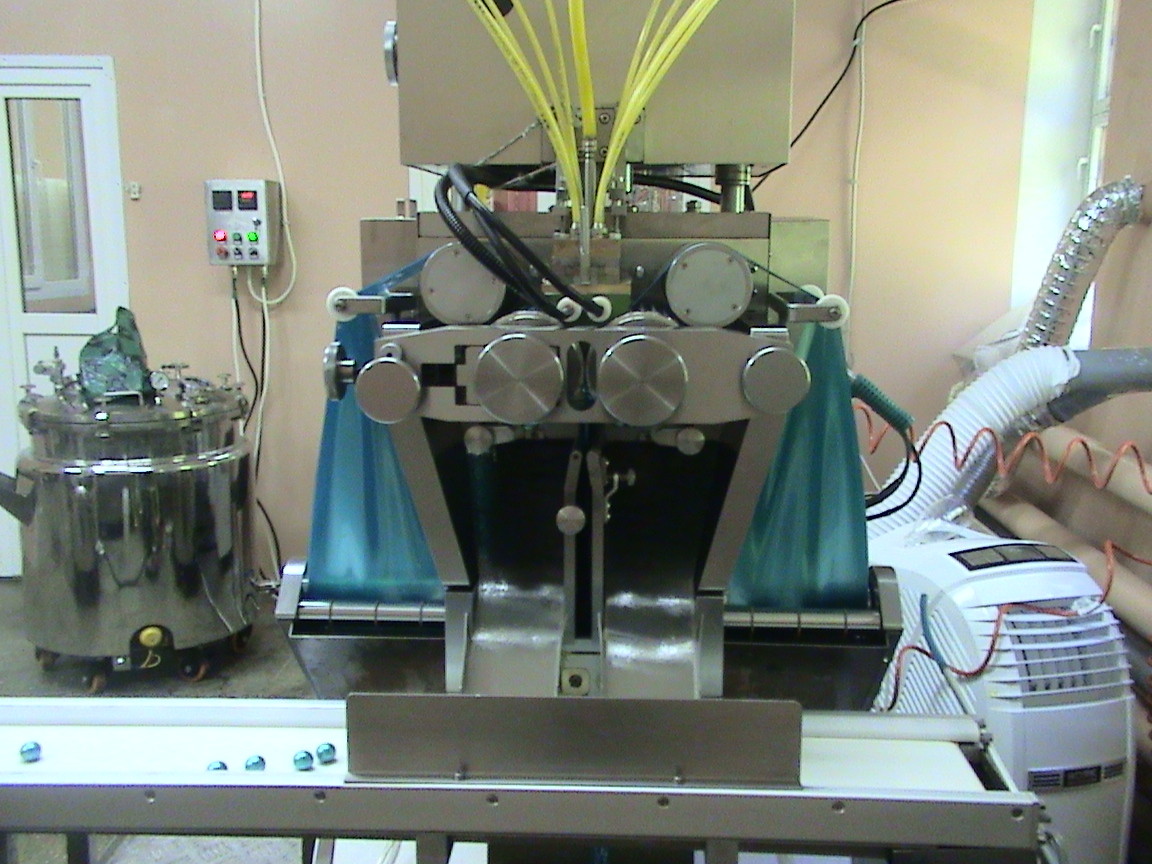

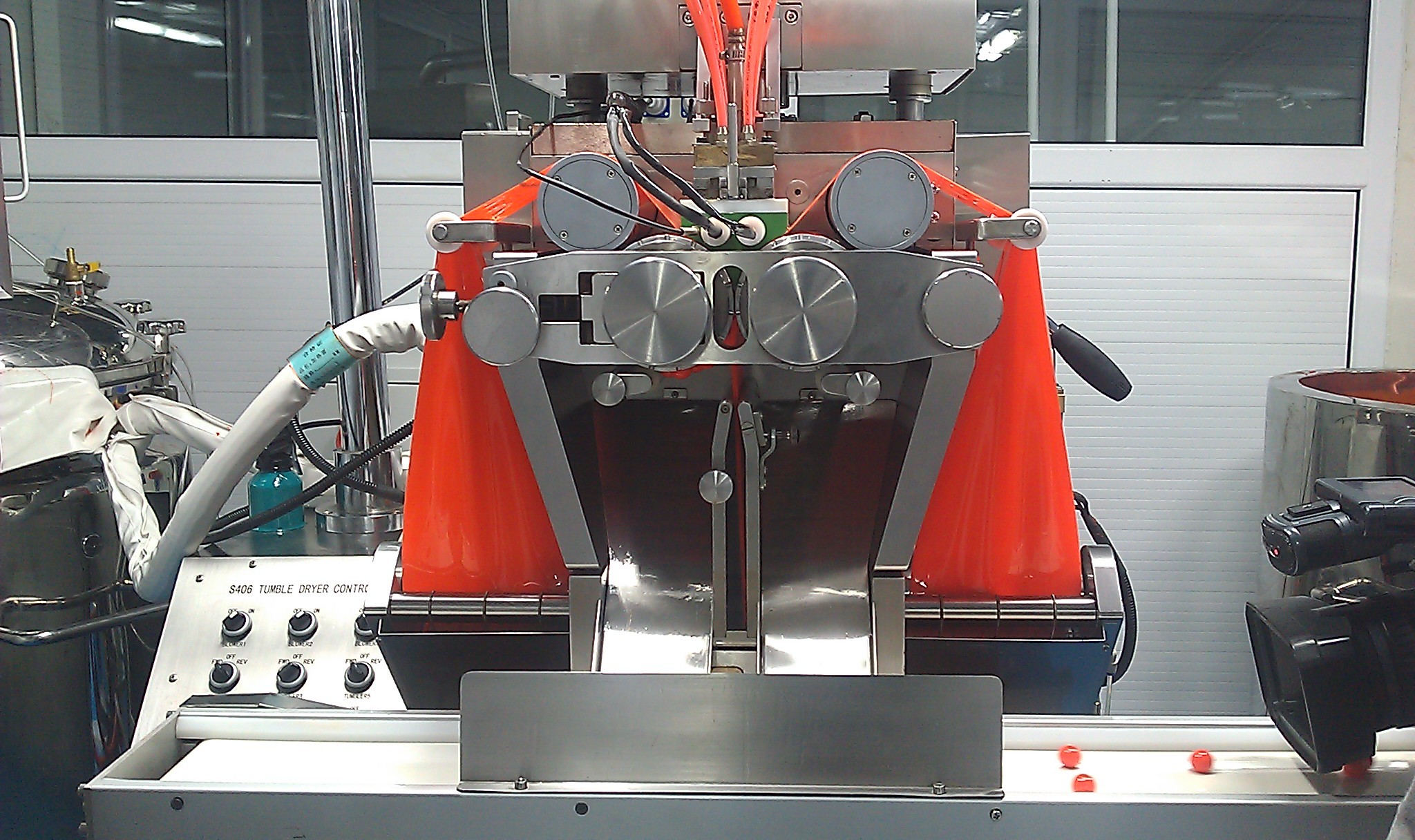

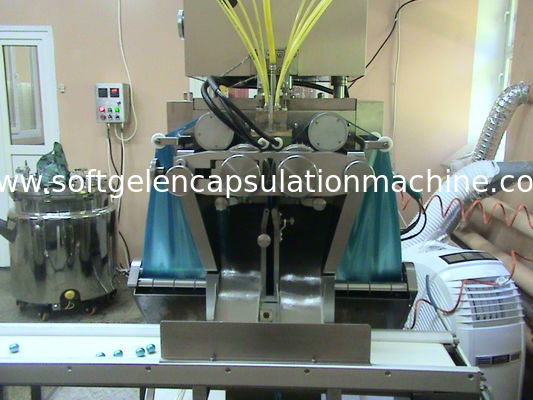

Soft gel encapsulation machine can quantificationally inject the oil, mixing suspension and pasty mass into the capsule to form all kinds fo softgel encapsulation with different size, shape and color. Because of the merits of high speed disintegration, easy to oral, hard to oxygenation, easy to store and take, the softgel encapsulation is welcomed by more and more customers. Owing to the high productivity, charging exactly, quality stabilization, high finished product rate, it is favored by more and more manufacturers and used in the fields of medicine, health products, cosmetic and paintball and so on.
Specification
|
Model |
S406 |
|
Die roll diameter |
Ф103mm |
|
Die roll length |
152mm |
|
Die roll speed |
0~5rpm |
|
Plunger numbers |
10 |
|
Dosage tolerance |
± 2% |
|
dimension |
880X640X1900mm |
|
weight |
900kg |
|
Power consumption |
7 kw |
|
Control mode |
PLC+HMI Switch/buttons |
|
Output rate |
8#OV 43470 pcs/hour |
Competitve Advantages
1. Good stability
2. Adjustable rotation rate during 0-5rpm
3. Easy to operate and clean, conforming to GMP
4. Compact and beautiful
5. It can be assembled or disassembled with single hand
6. Big air flow
7. Reduce the oil consumption
