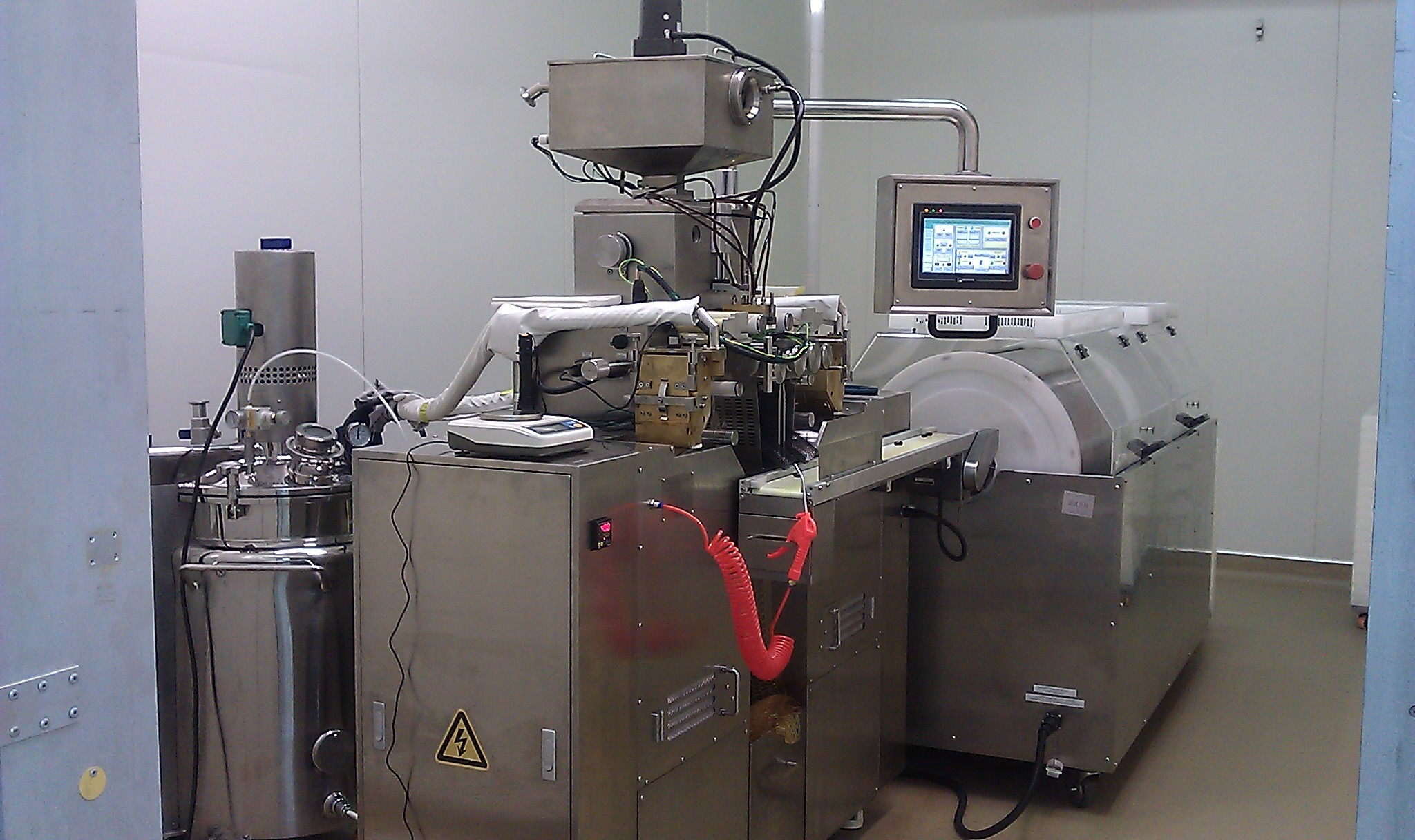

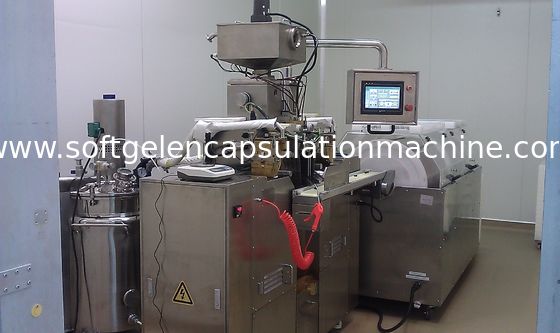

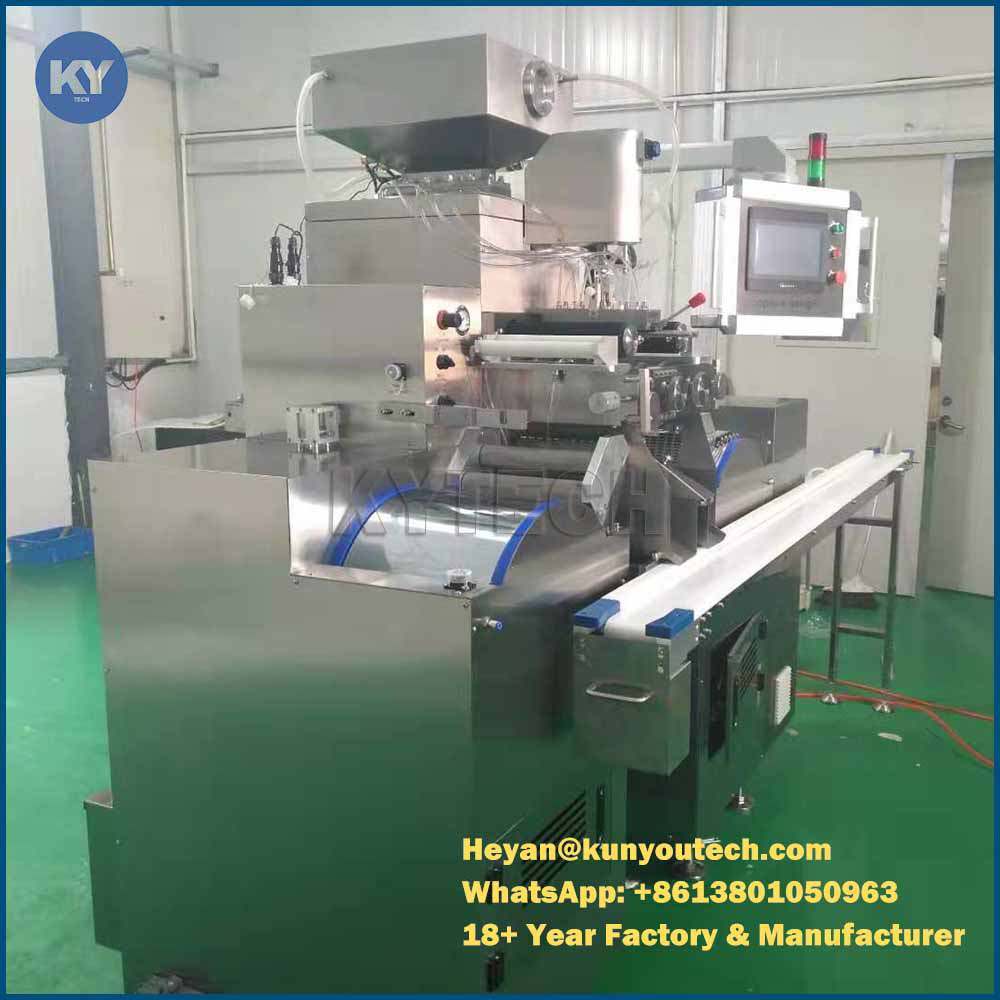

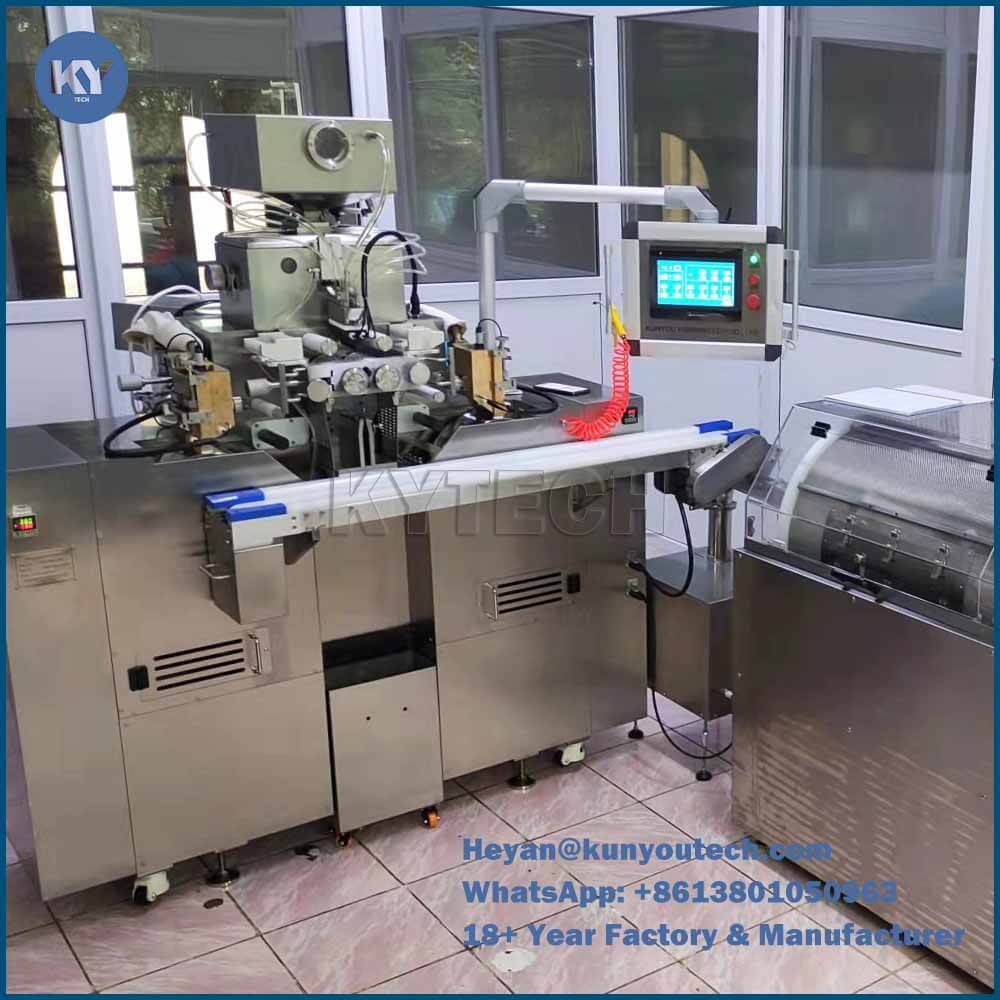

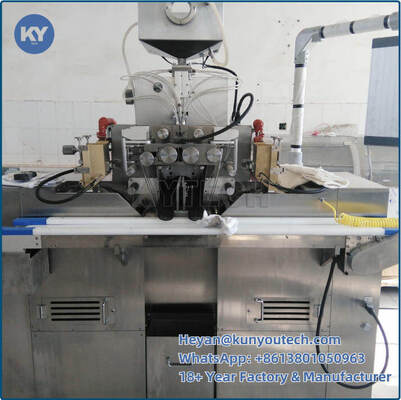

Small Soft Capsule Making Machine For Laboratory
Quick Detail
|
Product Name |
R&D type soft capsulate making machine |
Driven Type |
Electric |
|
Capacity |
22800 pcs/hour, 4r/min |
Material |
Stinless Steel |
|
Application |
Food, pharmaceutical,softgel making machine |
Capsule shape |
OV, OB,etc |
Production Description
This machine is widely used in laboratory, and small scale production.
Applications:
It's widely used in pharmaceutical industries, cosmetic and food industries.
Specification
|
Model |
S403 |
|
Die roll size |
Ф80X100mm |
|
Die roll speed |
0~5rpm |
|
Overall dimension |
1250×400×2300mm |
|
weight |
600kg |
|
Power supply |
380V/240V,50/60HZ |
|
Power of the main motor |
1.1kw |
|
Power of the main machine |
3kw |
|
S403 R&D softgel encapsulation machine |
|||
|
Shape |
Capsules/hour |
||
|
2r/min |
3r/min |
4r/min |
|
|
5#OV |
12600 |
18900 |
25200 |
|
8#OV |
11400 |
17100 |
22800 |
|
10#OV |
8640 |
12960 |
17280 |
|
11#OB |
7200 |
10800 |
14400 |
|
16#OB |
6840 |
10260 |
13680 |
|
20#OB |
6480 |
9720 |
12960 |
|
24#OB |
6120 |
9180 |
12240 |
|
Paintball |
7200 |
10800 |
14400 |
|
6#round |
14280 |
21420 |
28560 |
Competitive Advantage:
1. Small size, low energy consumption
2. Easy to operate and clean
3. High precision
4. Small load difference
5. Gelatin ribbon micro lubrication system
6. Important parts use aviation grade high wear-resisting material
