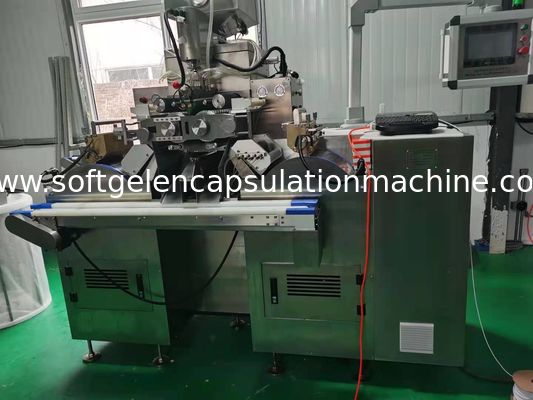

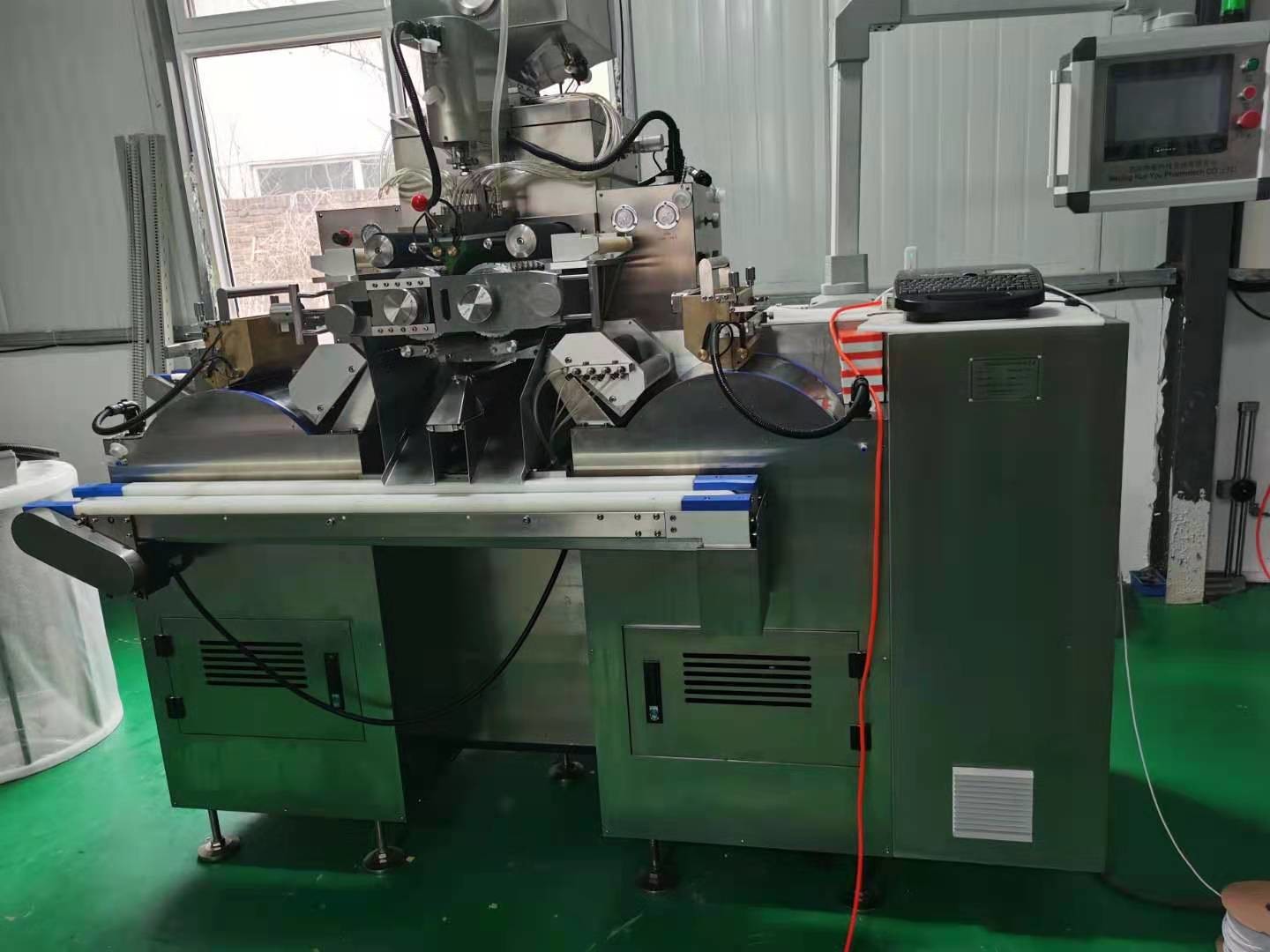

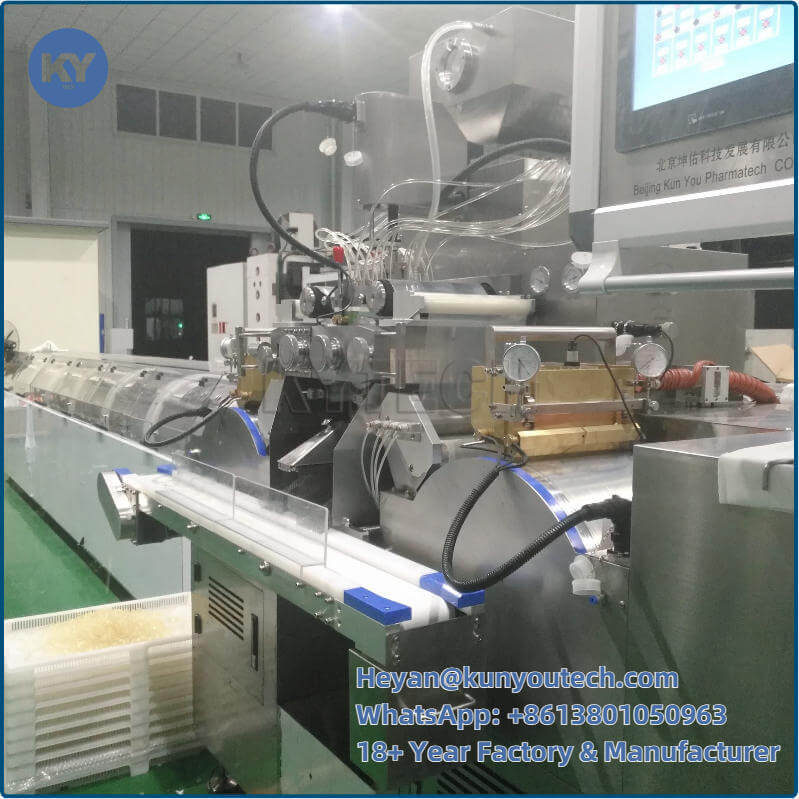

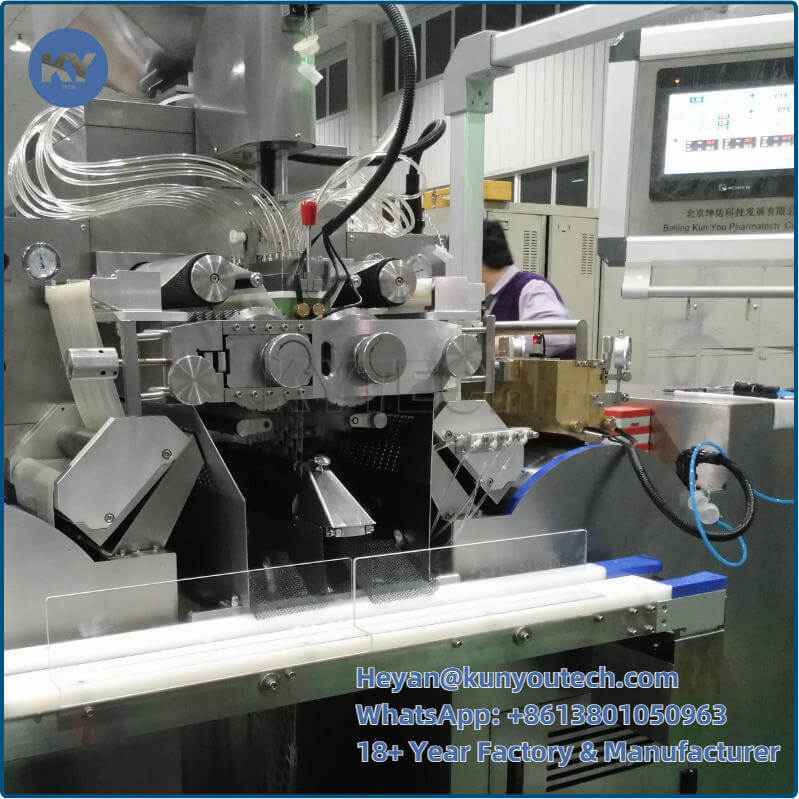

3 Kw Electric Laboratory Soft Gel Capsule Machine With PLC Control
Quick Detail
|
Overall Dimension |
1250×400×2300mm |
Driven Type |
Electric |
|
Capacity |
22800 pcs/hour, 4r/min |
Material |
Stinless Steel |
|
Application |
Food, pharmaceutical,softgel making machine |
Capsule shape |
OV, OB,etc |
Product Description

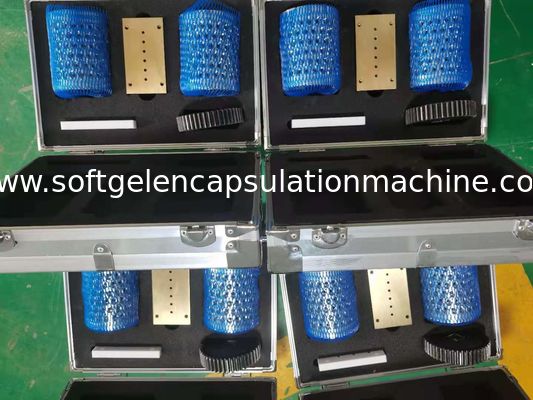

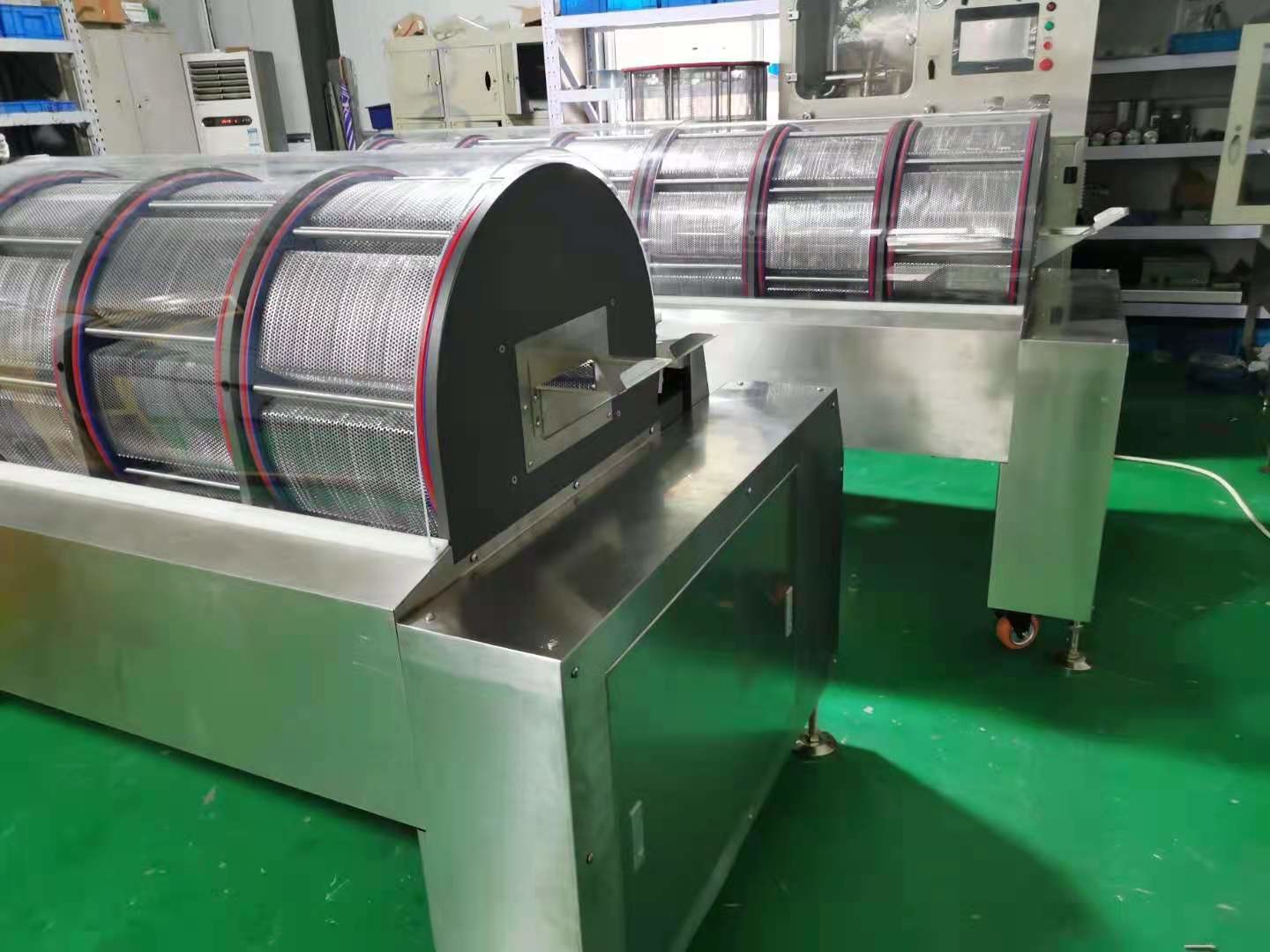

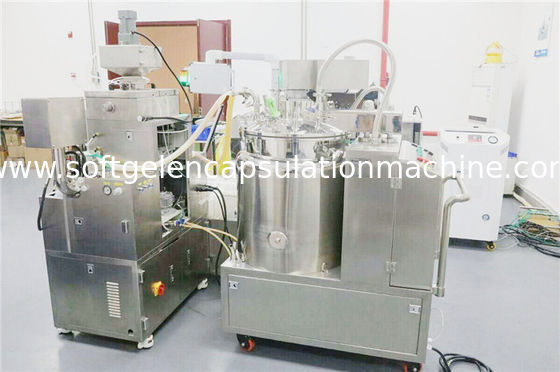

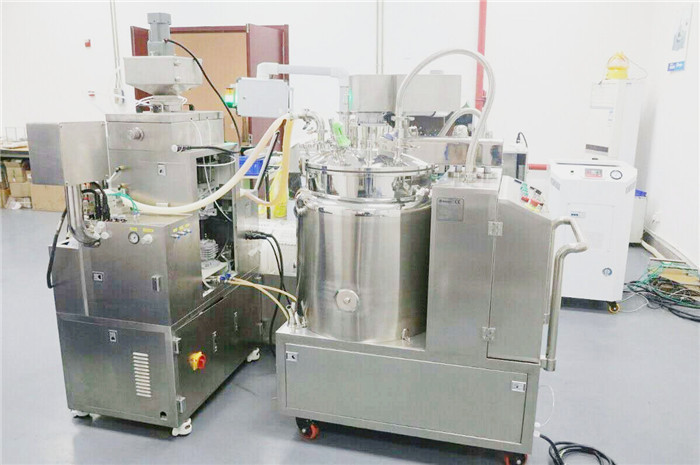

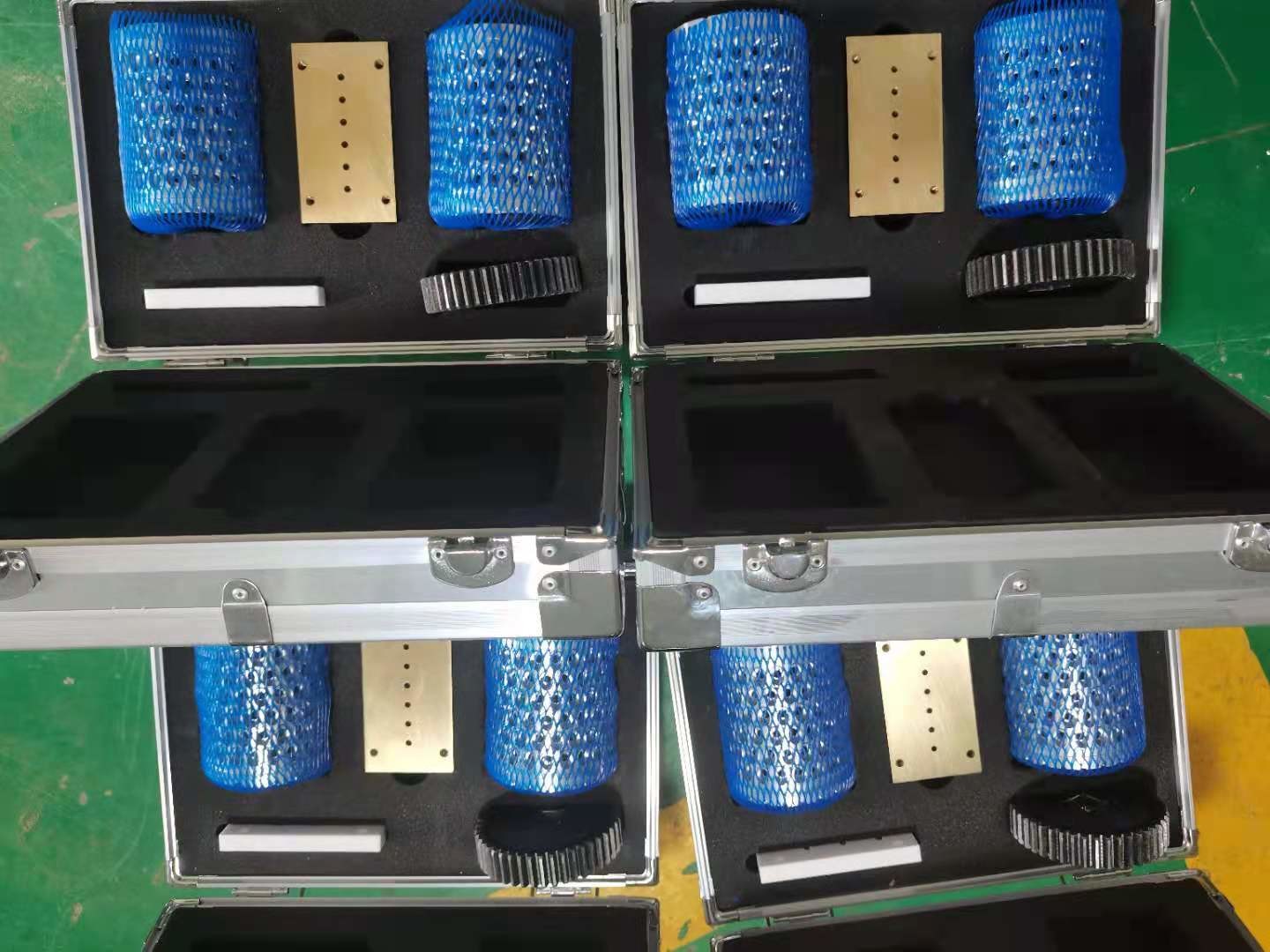

S403 soft capsule making machine is specially for laborotary and small scale production. It's elaborately designed strictly according to the requirements of GMP. The whole set of the manufacturing line is simple but efficient with a small space. In the manufacturing line, including a main machine, control system, water cooling system, lubrication oil saving system, a set of tumble dryer, one set of die roll and KUN YOU gelatin reactor. All the spare parts or other material are selected according to the requirements of GMP.
Thus making it applicable for pharmaceutical, nutrition food and cosmetic industries.
Beijing Kun You Pharmatech Co., Ltd. devotes itself to manufacture softgel encapsulation line, tumble dryer, softgel mould, softgel sorting machine, softgel auxiliary equipment, paintball production line, and related technique R&D.
We also accumulated rich experience of softgel encapsulation technique. We have many sets of high-precision CNC and auxiliary equipments, and our professional design, technology, production and service personnel, enable us to produce high performance equipment, mould and top quality service. We are not only a equipment and mould supplier, but also a turn-key solution and formula provider.Easpcially in veggie gel capsule.
Kun You is keeping good cooperation relationship with companies from USA,Swissland, Germany, Canada, Russia, Mexcio, Vietnam, Turkey, Brasil, India, etc., in the meantime, our products and service have been exported to those regions too.
1. Small size, low energy consumption
2. Easy to operate and clean
3. High precision ,die roll shaft viberation in 0.02mm
4. Small load difference
5. Gelatin ribbon micro lubrication system
6. Important parts use aviation grade high wear-resisting material
7.Famous brand of Simens and Schanider
8. Franquency motor for spped adjustable
9. Food grade filling pump for material
10. Double layer hopper with circle water in jacket
Pneumatic die press system, pneumatic wedge up and down, independent driven capsule stripper.
Important parts use aviation grade high wear-resisting material
Main shaft run out and parellelism within 0.02mm
All bearing use well know brand
Medicine pump dosing deviation less than 1.5%
Worm gear, gear and shaft adopt special material with high accuracy and long service life
Gelatin ribbon micro lubrication system
Main shaft, mangle roller, colling drum driven by independent motor, speed controlled viafrequency inverter.
Precision PID temperature control of the medicine hopper, injection wedge and spreader box.
Medicine hopper adopts thermal insulation design.
PLC and touch screen control, with functions of failure diagnosis.
| Model | S403 |
| Die roll size | Φ80×Φ100mm |
| Die roll speed | 0~5 rpm |
| Plunger number | 20/24 |
| Overall dimension | 1250×480×2300mm |
| Weight | 600kg |
| Power | 3kw |
| Control model | PLC+Touch Screen |
| Output |
8#OA16,000-20,000pcs/hour 20#OB73,500pcs/hour |
| Dosage deviation | ≤1.5% |
Details
Applications:
It's widely used in pharmaceutical industries, cosmetic and food industries.
|
S403 R&D softgel encapsulation machine |
|||
|
Shape |
Capsules/hour |
||
|
2r/min |
3r/min |
4r/min |
|
|
5#OV |
12600 |
18900 |
25200 |
|
8#OV |
11400 |
17100 |
22800 |
|
10#OV |
8640 |
12960 |
17280 |
|
11#OB |
7200 |
10800 |
14400 |
|
16#OB |
6840 |
10260 |
13680 |
|
20#OB |
6480 |
9720 |
12960 |
|
24#OB |
6120 |
9180 |
12240 |
|
Paintball |
7200 |
10800 |
14400 |
|
6#round |
14280 |
21420 |
28560 |
