Medeium Scale Soft Capsule encapsule Machine / Pharmaceutic Machine

1 set
MOQ
Medeium Scale Soft Capsule encapsule Machine / Pharmaceutic Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Pharmaceutic / Hard TO Oxidate /al Machine
Die Roll Size: Die Roll Ф103mm * 152mm
Dimension: 880X640X1900mm
Control Mode: PLC+Touch Screen
Output Rate: 8#OV 43470 Pcs/h
Power: 2.75KW
Highlight:

capsule maker machine

,

automatic capsule filling machine

Basic Infomation
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S406
Payment & Shipping Terms
Packaging Details: Wood cages
Delivery Time: 30-60 days
Payment Terms: T/T, L/C
Supply Ability: 40 Set/Sets
Product Description

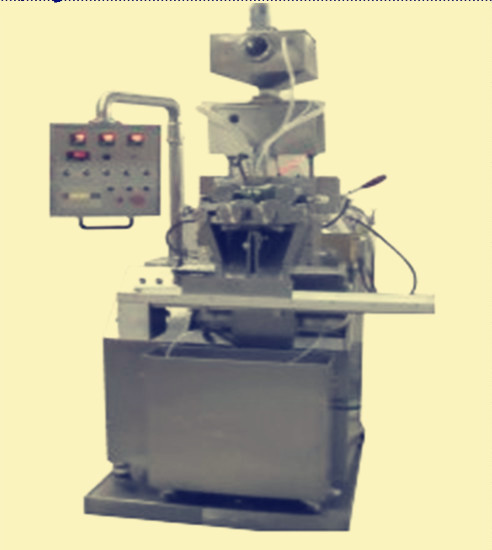

Medeium Scale Soft Capsule encapsule Machine / Pharmaceutic Machine





Quick Detail



Dimension(MM)

 880X640X1900mm

Power consumption

7 kw

Pump type

10 plungers

Dosage Tolerance

± 2%

Advantage

With economic price and lower using cost

Packing Material

Gelatin



Medeium Scale Soft Capsule encapsule Machine / Pharmaceutic Machine 0



Product Description



Soft gel encapsulation machine can quantificationally inject the oil, mixing suspension and pasty mass into the capsule to form all kinds fo softgel encapsulation with different size, shape and color. Because of the merits of high speed disintegration, easy to oral, hard to oxygenation, easy to store and take, the softgel encapsulation is welcomed by more and more customers. Owing to the high productivity, charging exactly, quality stabilization, high finished product rate, it is favored by more and more manufacturers and used in the fields of medicine, health products, cosmetic and paintball and so on.



Specification



Model

S406

Die roll diameter

Ф103mm*152mm

Die roll speed

0~5rpm

Plunger numbers

10

Dosage tolerance

± 2%

dimension

880X640X1900mm

weight

900kg

Power consumption

 7 kw

Control mode

PLC+HMI Switch/buttons

Output rate

8#OV 43470 pcs/hour

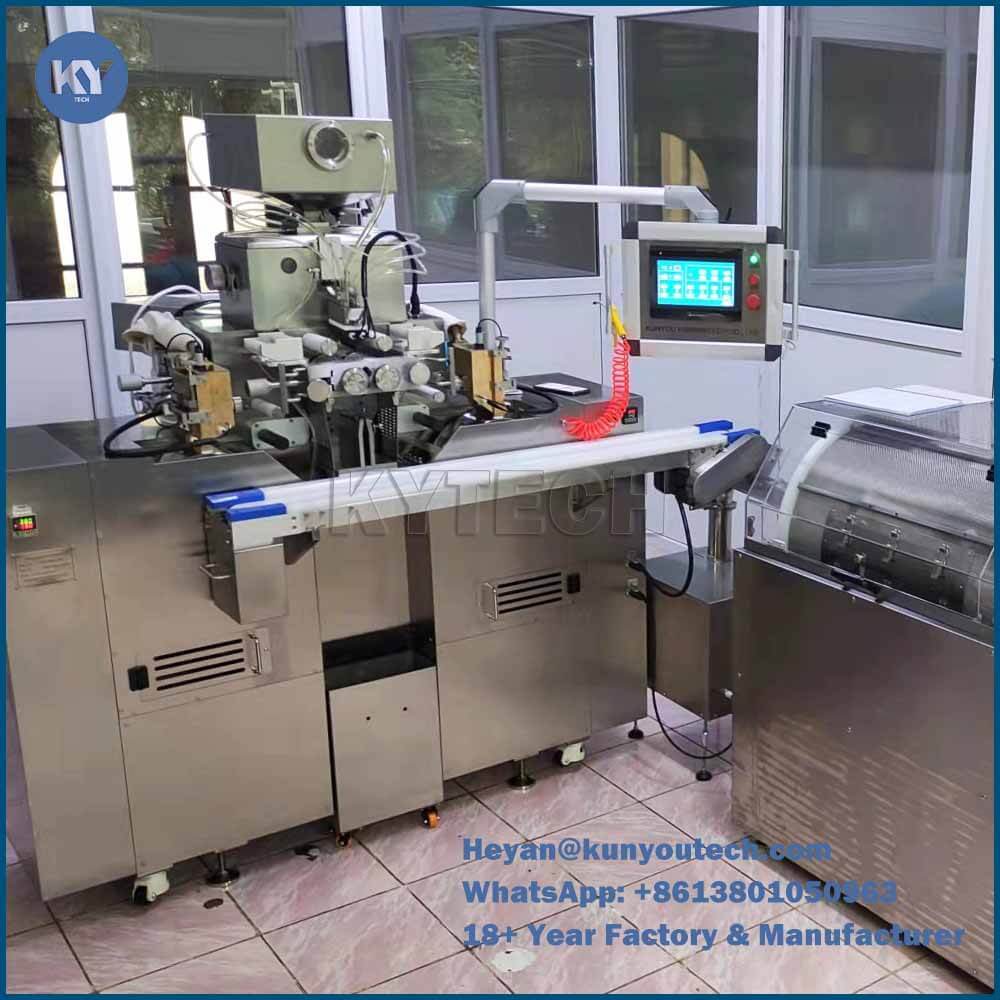

Medeium Scale Soft Capsule encapsule Machine / Pharmaceutic Machine 1



Competitve Advantages



1. Good stability

2. Easy to operate and clean, conforming to GMP

3.Adjustable rotation rate during 0-5rpm

4. Compact and beautiful

5. It can be assembled or disassembled with single hand

6. Big air flow

7. Reduce the oil consumption

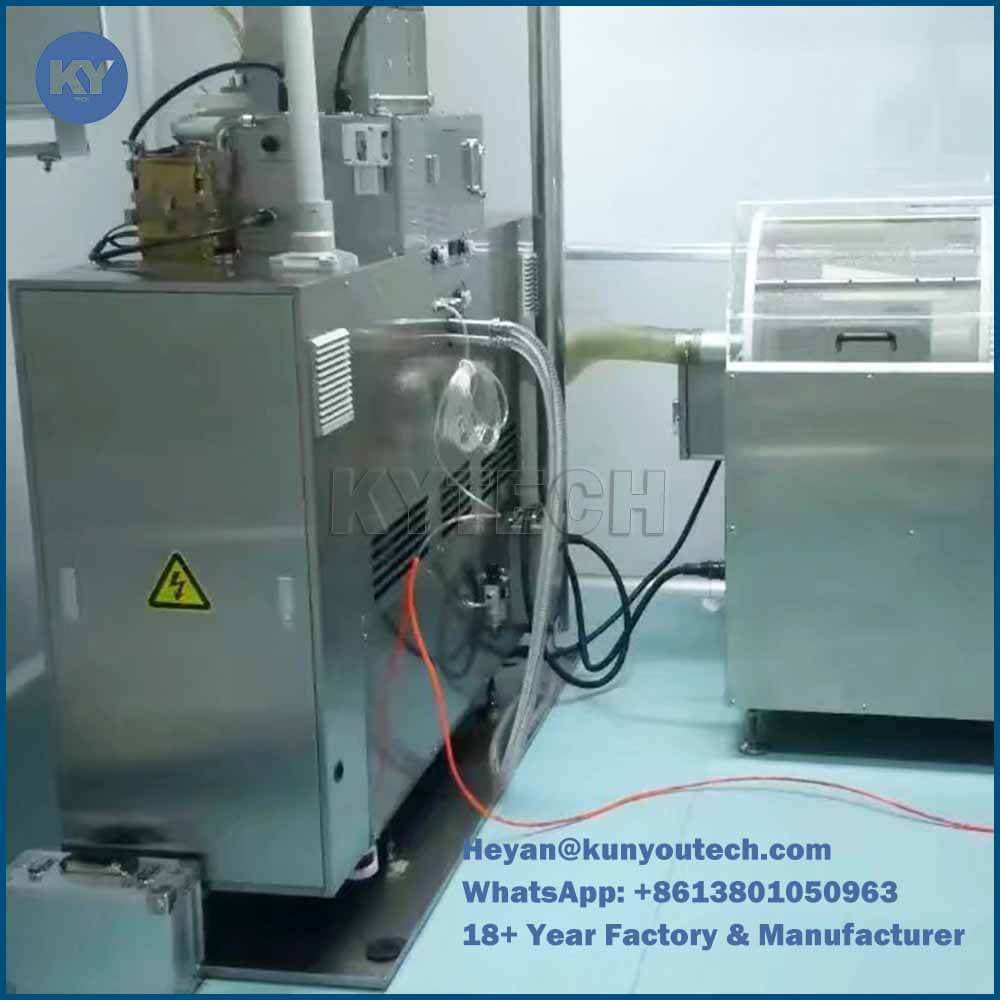

Medeium Scale Soft Capsule encapsule Machine / Pharmaceutic Machine 2
