S406 Automatic Capsule Machine with 43470 Pcs/Hour Capacity 7 KW Power and 152 mm Die Roll

1 set
MOQ
S406 Automatic Capsule Machine with 43470 Pcs/Hour Capacity 7 KW Power and 152 mm Die Roll
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

automatic capsule machine

,

softgel capsule machine

Basic Infomation
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S406
Payment & Shipping Terms
Packaging Details: Wood cages
Delivery Time: 20-60 days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets
Product Description

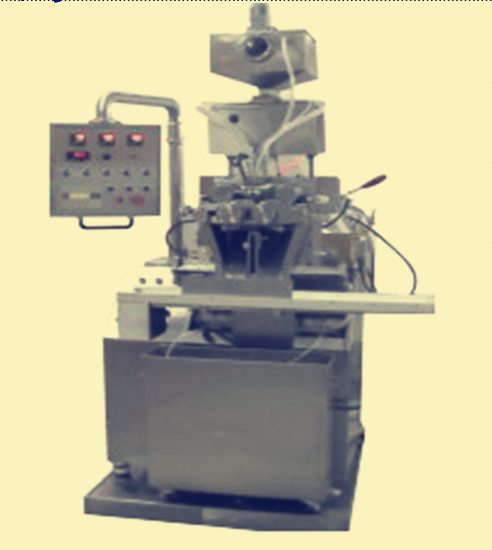

S406 Automatic Capsule Machine Line With Ground Automatic Feeding
Product Overview

7 KW Softgel Encapsulation Machine with ground automatic feeding capability, producing up to 43,470 pieces per hour.

Product Name Soft capsule making machine/Softgel machine
Driven Type Electric
Capacity 43,470 pcs/hour, 8#OV
Control Mode Full Automatic
Application Food, pharmaceutical, softgel production
Capsule Shape OV, OB, etc.
Product Description

The S406 Softgel Encapsulation Machine combines international equipment advantages with customer requirements, featuring a 152 mm long die roll with adjustable rotation rate (0-5 rpm) for optimal material processing.

Key engineering improvements include:

  • Enhanced bearing spindle support for improved accuracy and easier maintenance
  • Precision machining with increased helical gear usage for better transmission stability
  • Split cooling fan structure to reduce thermal effects on pressure pills
  • Wheel-mounted gelatin barrel for convenient mobility
  • Optional stirring/insulation hopper with ground automatic feeding
  • Stainless steel oil roller meeting GMP requirements

This advanced encapsulation system operates with just three main motors, featuring stepless speed regulation via frequency inverter and individual temperature control for injection wedge and gelatin components.

Technical Specifications
Model S406
Die Roll Diameter Φ103mm
Die Roll Length 152mm
Die Roll Speed 0-5rpm
Plunger Numbers 10
Dosage Tolerance ±2%
Dimensions 880×640×1900mm
Weight 900kg
Power Consumption 7 kW
Control Mode PLC+HMI Switch/buttons
Output Rate 8#OV 43,470 pcs/hour
Competitive Advantages
  • Exceptional stability and precision operation
  • Adjustable rotation rate (0-5rpm) for material optimization
  • GMP-compliant design for easy operation and cleaning
  • Compact footprint with aesthetic industrial design
  • Single-hand assembly/disassembly capability
  • High airflow cooling system
  • Reduced oil consumption design
  • Waterproof and oil-proof cable connections
  • Advanced technical loading capacity
  • Drum design prevents gelatin wrinkling and sideslip
Applications: Soft capsule encapsulation machine, Softgel making machine, Soft capsule Full Automatic Machine, Paintball Encapsulation machine, Paintball making machine
