Canabis Oil Softgel Capsule Machine With Porous Stainless Steel Oil Roller

Non animal Softgel Encapsulation Machine For 50000 - 70000 Capsules / H

Vegetable Gelatin Softgel Encapsulation Machine For 50000 - 70000 Capsules / H

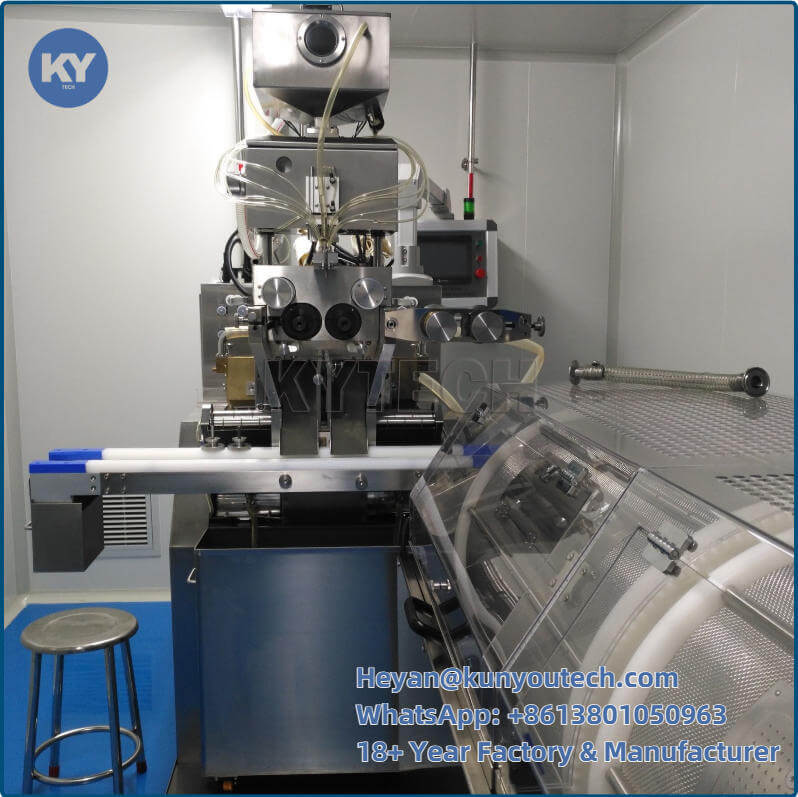

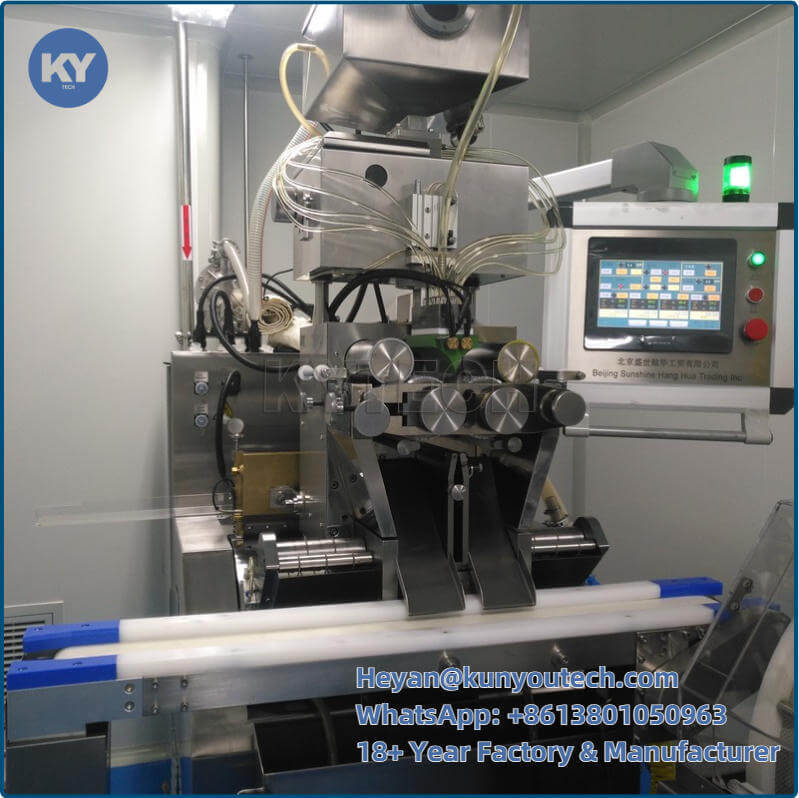

S407 Softgel Encapsulation Machine is developed based on Model S406 softgel encapsulation machine. The die roll length is 20mm longer. It combines advantages of foreign equipment and requirements of customers,considering the needs and the biggest benefits of customers as start point.There are following features besides S406’s. S407 adopts PLC operation, making operation more convenient. The die roll’s rotation rate can be regulated within 0 to 7 rpm, so users can choose the most proper rotation rate according to data of different material and techniques. Drying cycle is controlled by PLC unified, so users can regulate the cycle time conveniently. The tumbler dryer is designed with a device to remind operators to prepare well when discharging. S407 can realize the function of statistical statements and printing. The machine drive system’s lubrication pump is droved by motor alone, which greatly improves the lubrication performance when main equipment operating at a very slow speed. At the same time, it can reduce machine vibration, prolong machine overhaul time and save investment for users.

• Dosage deviation:< ±2%

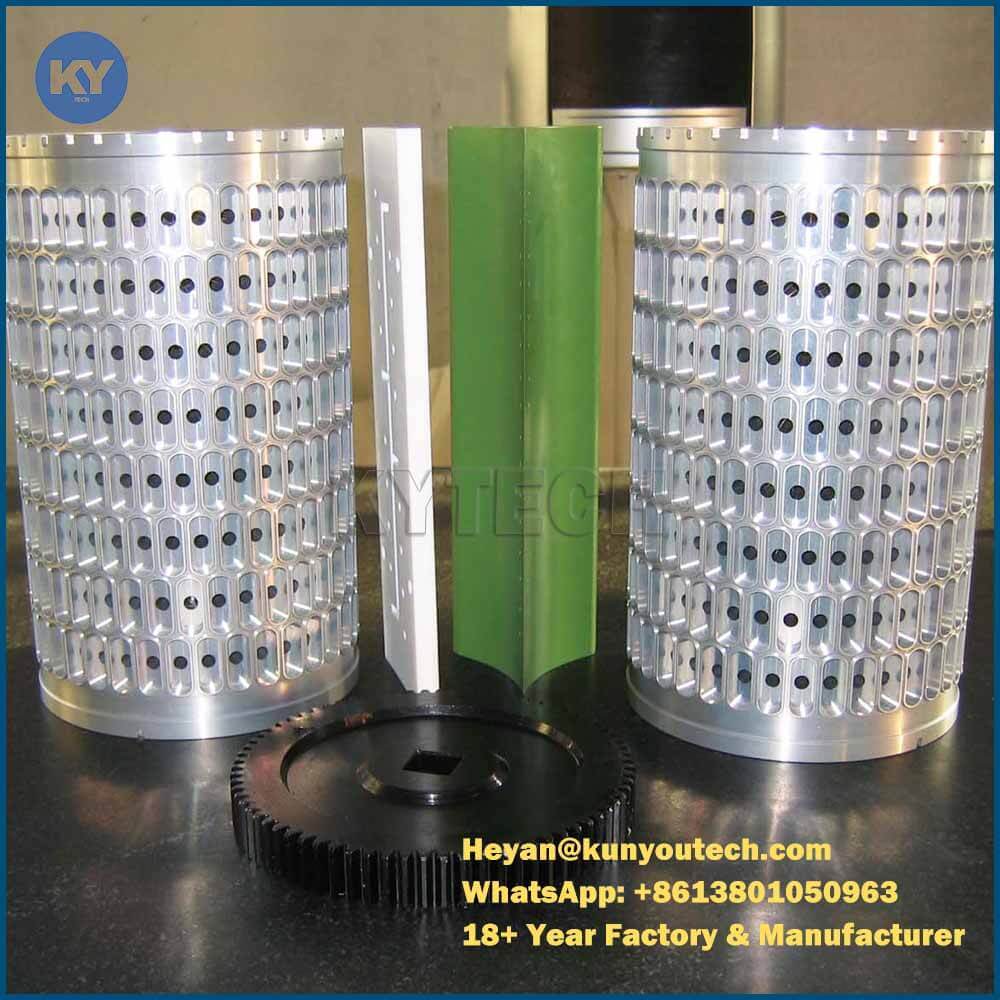

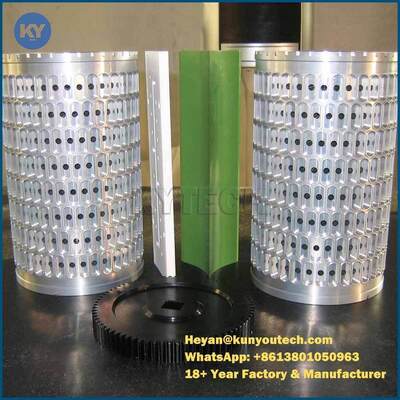

• Material of oil roller: porous stainless steel
• Parallel degree of main shaft of the die rolls:<0.02mm
• Micro gelatin ribbon oil lubrication
• Precision temperature control for injection wedge, spreader box and chilled water.
• The running parameters can be stored and recalled with a finger tip touch if necessary.
• Pneumatic wedge lift up.
• Pneumatic left die shaft movement.

It’s mainly for softgel making enterprises and pharmaceutical enterprises and universities.

PLC operation

Improve the efficiency of production largely

Adjustable rotation rate during 0-7rpm

Compact and beautiful

It can be assembled or disassembled with single hand

Reduce the oil consumption

Adjustable separately or automatically

The control system has a counting function to make operators get the number of pills clearly

Store and apply operating data

Lengthen the life of die roll by using pneumatic

Reminding and diagnosing faults function

Can realize the function of statistical statements and printing

More safety

The cable plug has good waterproof and oil proof function
