S610 Large Scale Medical Softgel Encapsulation Machine For softgel and painball production With PLC And Touch Screen

Softgel Making Machine

Product Description

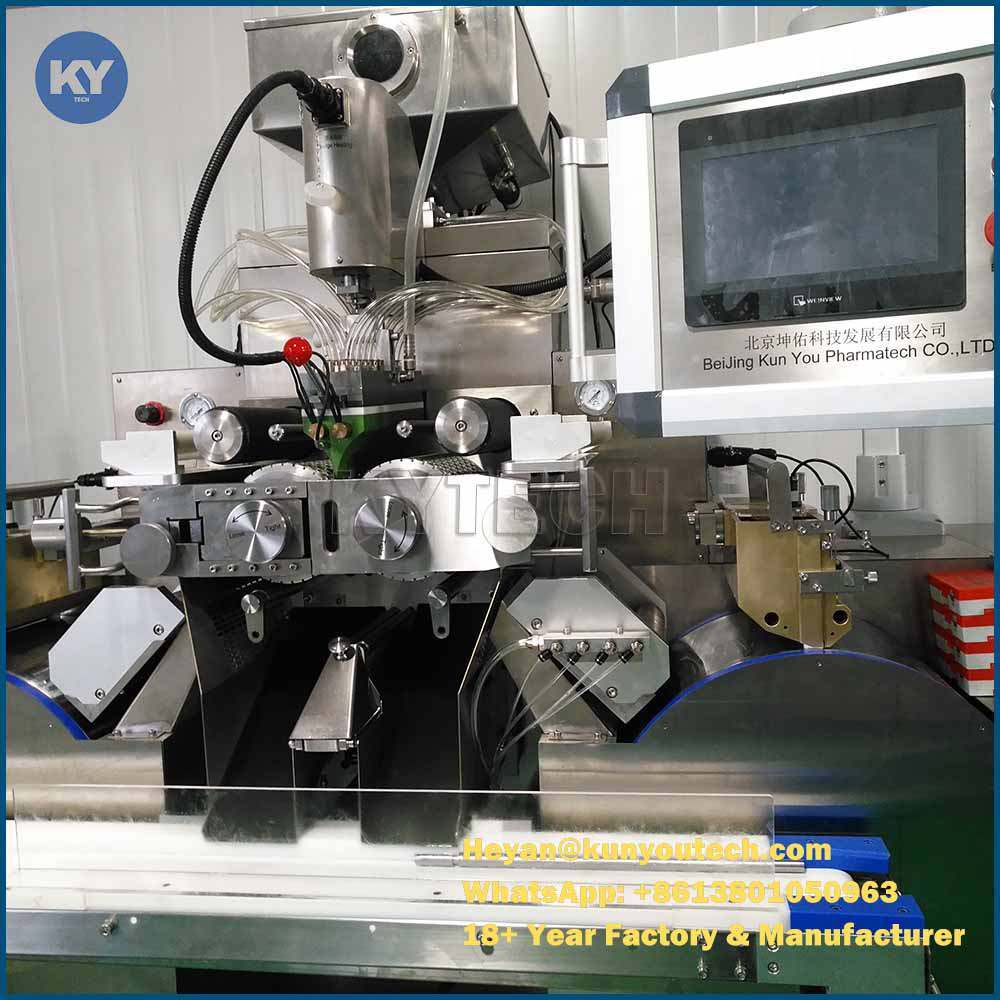

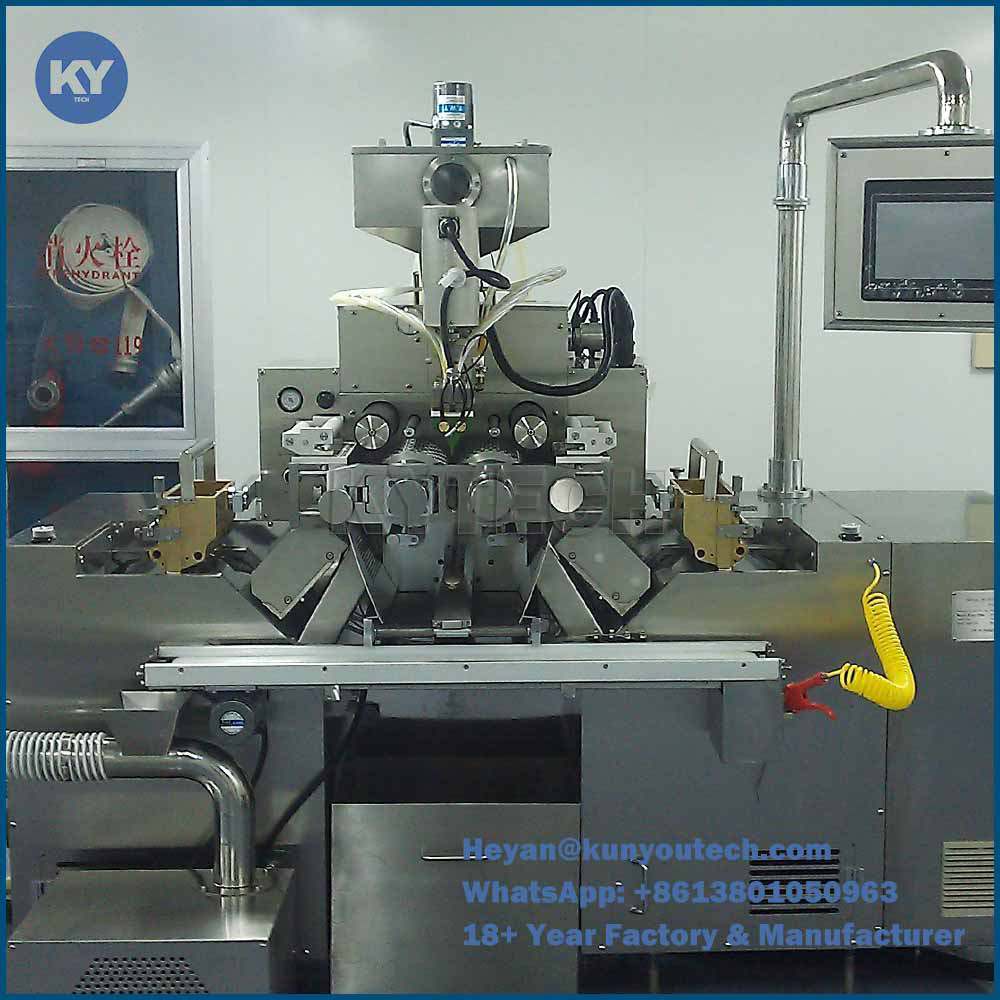

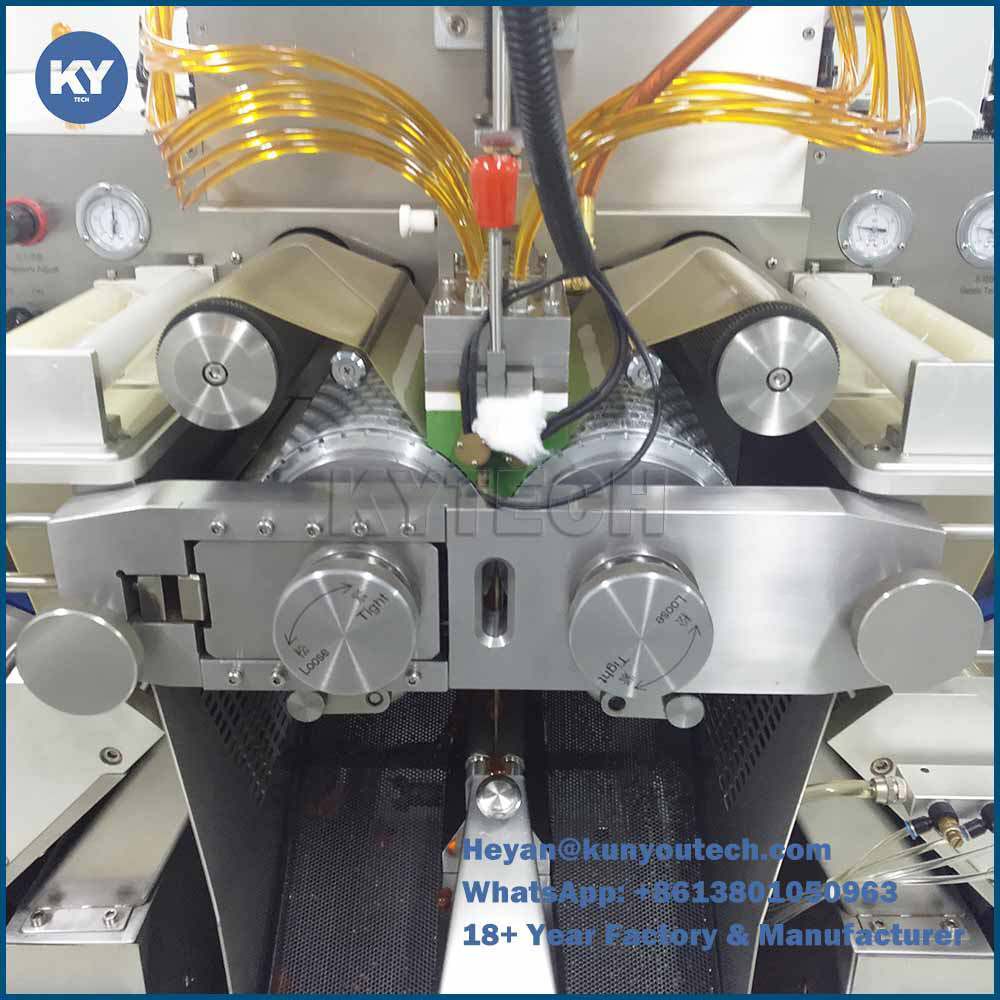

S610 roll type soft capsule’s key parts of the machine select Germany precision bearings. The whole machine’s mechanical parts adopt independent single adjustable lubrication, reducing mechanical wear and prolonging the time without any mistakes. The drug pump can run together with the die roll automatically and synchronously, it’s very convenient to adjust the spraying time. S610 adopts a new cam mechanism, which relieved the reversing board manual synchronization process. There are two ways which use the cantilever to operate, large size touch screen and switch button to choose from. The control system has faults diagnosis function. It can realize remote diagnosis after the upgrade. New 8 type amorphous drying roll cage is charactered by variable frequency speed regulation and more reasonable structure. The cage can be disassembled without moving dryer. It’s easy to clean. There are material receiving discs under the roll cage, making S610 more in line with the requirements of GMP. S610 roll type soft capsule automatic production line is used to press and inject the oil liquid, suspension liquid or paste quantitatively and encapsulated them in the gelatin, then producing different sizes and different shapes of the sealing softgels. The production line is mainly composed of main machine, tumbler dryer, fill material system and pneumatic theroms plastic barrels, etc.

Specifically speaking, it has the following characteristics:

• Dosage deviation:<+1.5%
• Gelatin ribbon lubrication: paraffin oil or fractionated coconut oil, less than 1kg in 8 hours. Solvent free.
• Major bearing made in Germany.
• Capsule brushes are driven by independent motor to prevent the gelatin stuck into the die roll cavity.
• Separate lubrication system for medicine pump and die roll assembly.
• Water cooled drum also have air blowers
• PLC and touch screen control with self-trouble diagnostic.
• Automatic medicine supply. The system can even alarm when the fill material tank is empty.
• High accuracy medicine pump. The diameter tolerance of the 20 plungers are less than 0.005mm.

Specification

Applications

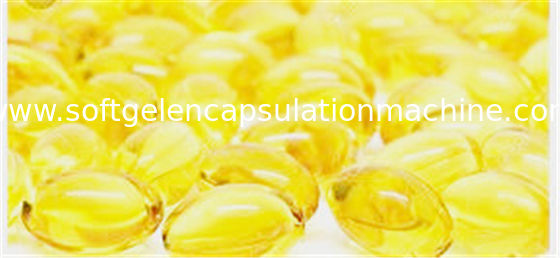

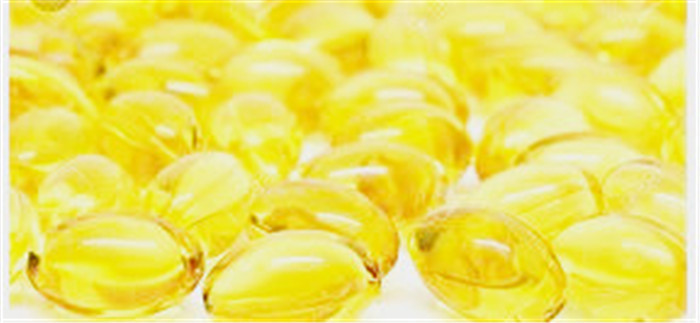

Softgel encapsulation machine can quantificationally inject the oil, mixing suspension and pasty mass into the capsule to form all kinds of softgel encapsulation with different size, shape and color. Because of the merits of high speed disintegration, easy to oral, hard to oxygenation, easy to store and take, the softgel encapsulation is welcomed by more and more customers. Owing to the high productivity, charging exactly, auality stabilization, high finished product rate, it is faoured by more and more manufacturers and used in the fields of medicine, health products, cosmetic and paintball and so on. This product has passed provincial-level appreise of new product and the certification of EU, adopted two items of patent technology in manufacturing with exquisite workmanship.

Characteristics

1. Strong product capacity, it can produce 370 million granules (Take the 200C for example, No. 8 oval shape, 3 rpm/minute, 24 hours / day, 300 days/year).
2. Medicine injecting part adopts advanced linearity driving system, and it makes sure that the precision of charging and filling is less than 2%. Capsule package rate is up to 98%.
3. Advanced water cooling system, can avoid to the pollution by air.
4. The gelatin ribbon is lubricated by fine oil supply technology in order to lower the consumption of lubrication oil. If the ribbon is lubricated by vegetable oil, so the capsules produced is free of wash.
5. High quality capsule deferent equipment adopts food conveyer belt authorized by American FDA, without poison and adhibition and easy to clean.
6. Optimized designed mould is made of high quality aviation alloy material by high precision numerical control process to ensure the mould's service life.
7. Advanced process and assembly technics make the complete appliance quality stabilization, high working rate, and good shape pill.
8. Adopt automatic system project of supplying capsule and material to reduce workers' labor intensity and improve the working environment, which accords with the requirement of GMP.
9. The liquid level in the gelatin box is fixed automatically in the constant position, and the centigrade mater display the thickness of rubber, which is easy and accurate in adjustment.
10. The power of main motor is 1.1KW, which can avoid the phenomenon of insufficient driving power when the content is rather thick ( take 200 model for example).
11. Adopt the nonpoisonous materials to human body or now dropping matters into medicine liquid in this machine and medicine liquid, and the touching parts for gelatin.
