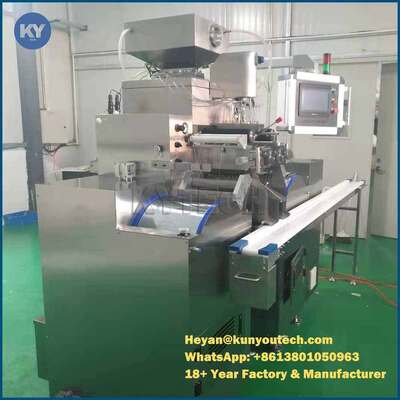

Electric Soft Gelatin Capsule Filling Machine Painball / Capsule Making GMP Standard

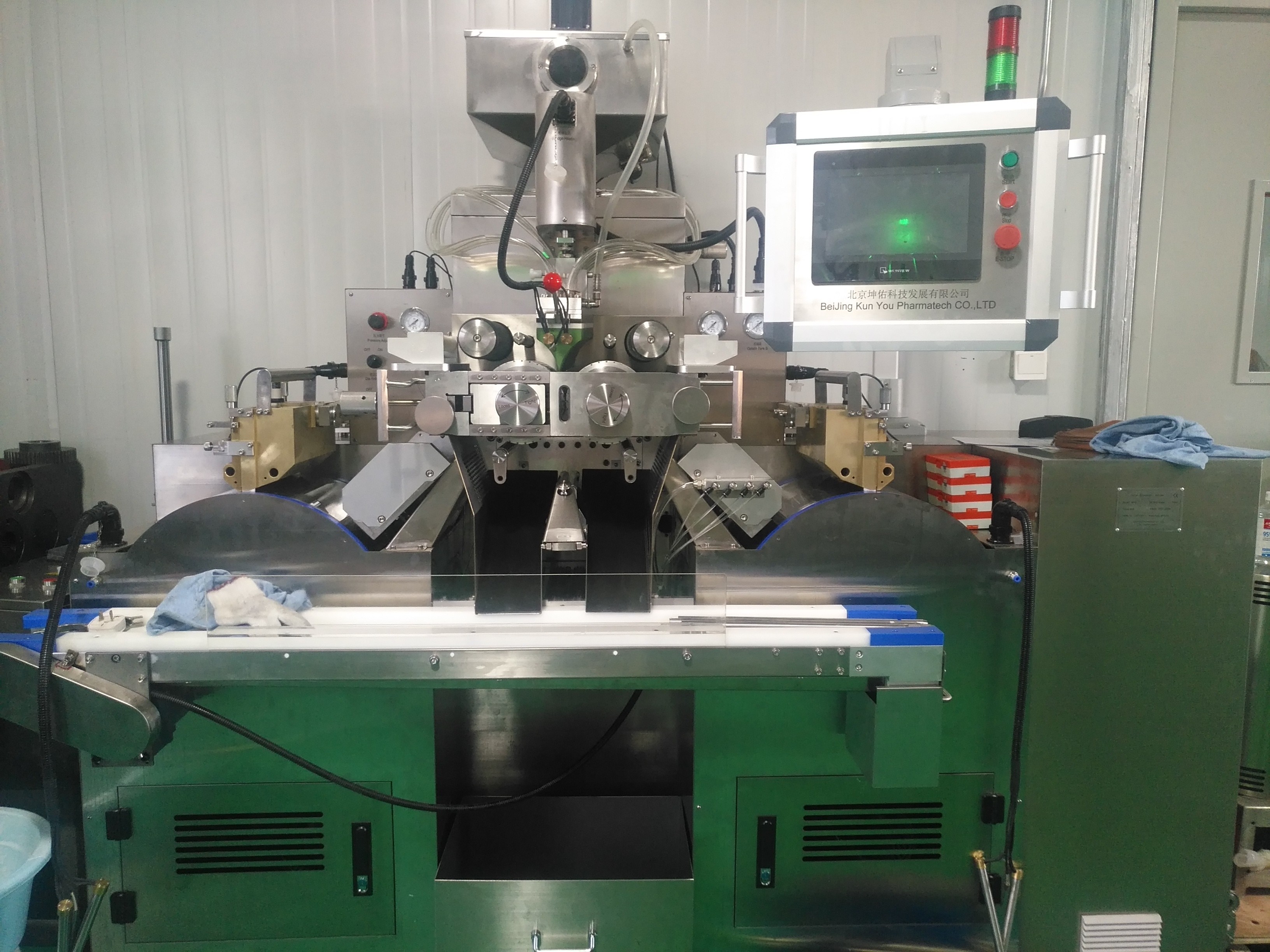

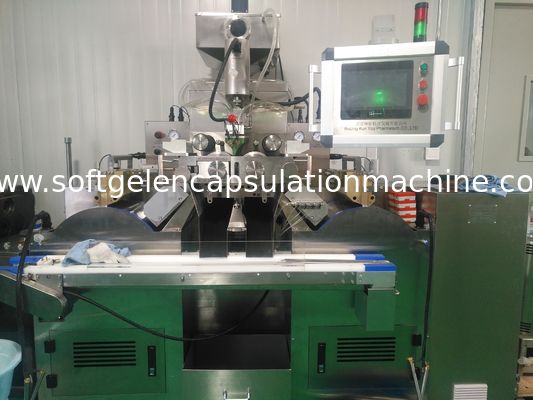

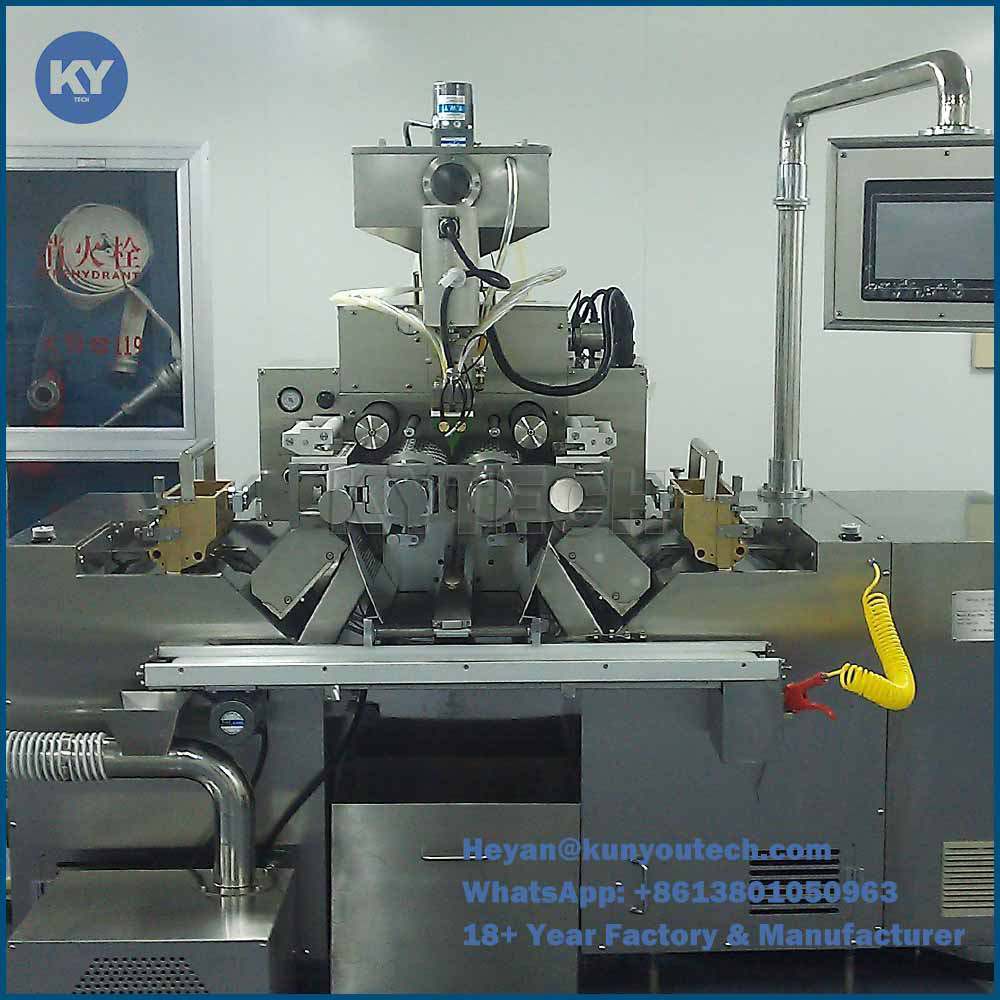

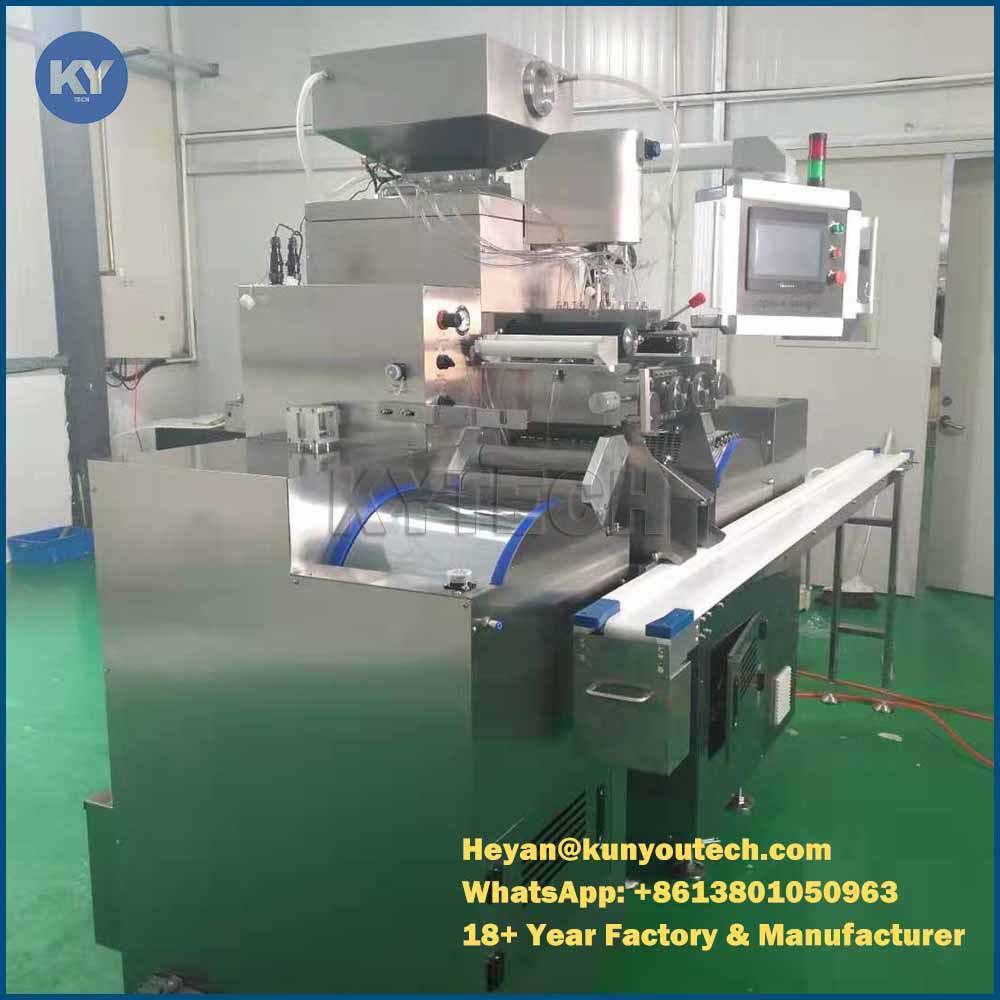

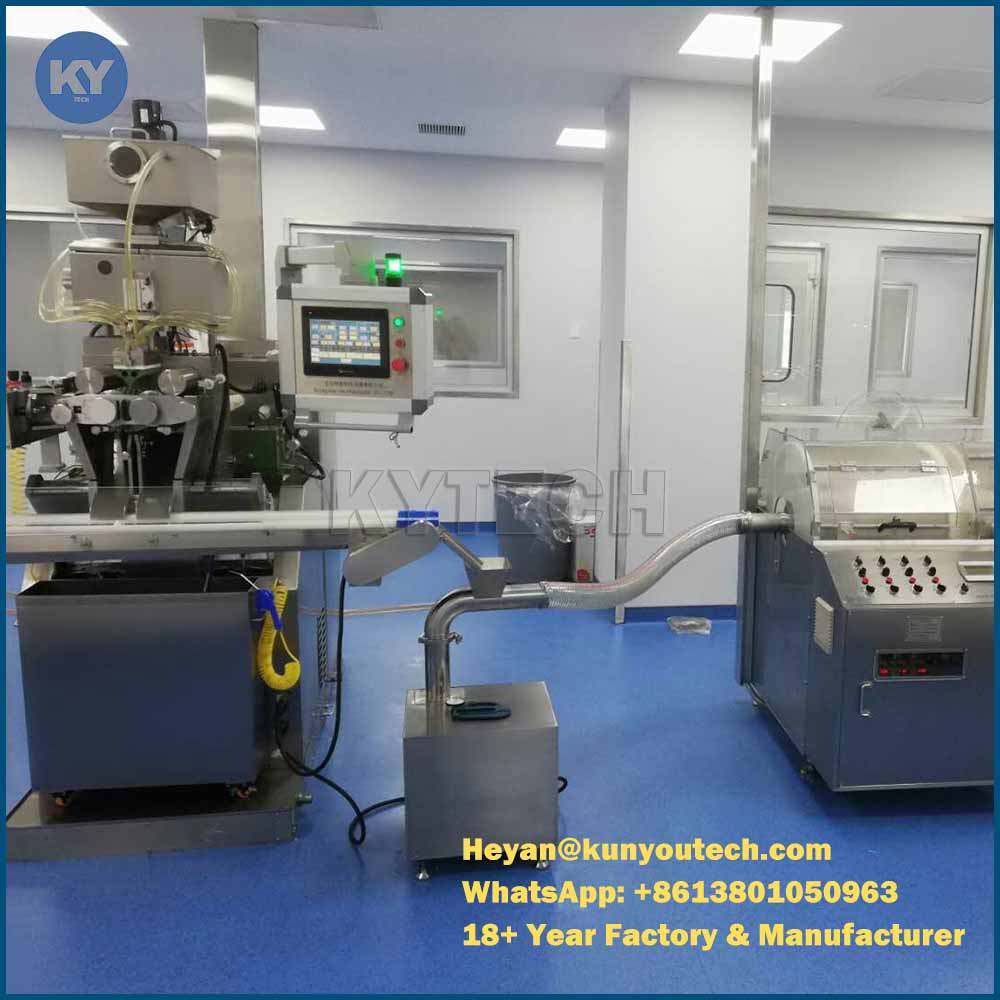

S403 R&D type softgel making machine/soft capsule making machine is an experimental soft capsule machine designed especially for R&D department of laboratories, pharmaceutical factories in the universities and plant health products and Research Institutes.

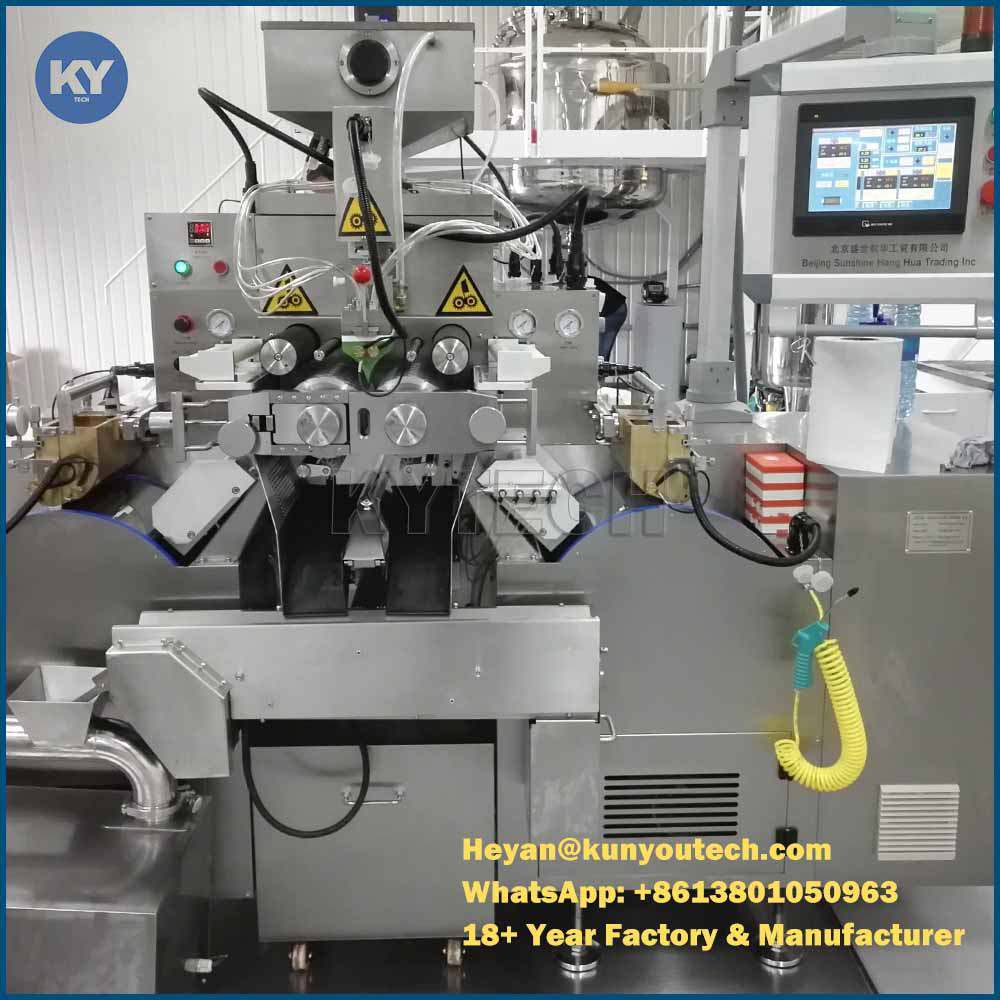

• Pneumatic die press system, pneumatic wedge up and down, independent driven capsule stripper.
• Important parts use aviation grade high wear-resisting material
• Main shaft run out and parellelism within 0.02mm
• All bearing use well know brand
• Medicine pump dosing deviation less than 1.5%
• Worm gear, gear and shaft adopt special material with high accuracy and long service life
• Gelatin ribbon micro lubrication system
• Main shaft, mangle roller, colling drum driven by independent motor, speed controlled via frequency inverter.
• Precision PID temperature control of the medicine hopper, injection wedge and spreader box.
• Medicine hopper adopts thermal insulation design.
• PLC and touch screen control, with functions of failure diagnosis.

Casting Drum Formatting proper thickness of gelatin ribbon over chilled casting drum surface Water cooling system TIR flatness 0.03’ (Total Inch Run-out)

It’s mainly for softgel and paintball making enterprises and pharmaceutical enterprises, especially for R&D department of laboratories, pharmaceutical factories in the universities and plant health products and Research Institutes.It also can suitable for cosmetic manufactures, such as bath beads and Collagen capsule.

• Small size, low energy consumption
• Very Easy to operate and clean
• High precision
• Small load difference
• Gelatin ribbon micro lubrication system
• Important parts use aviation grade high wear-resisting material
