7 KW Softgel Encapsulation Machine With Ground Automatic Feeding / 43470 Pcs / Hour

China 7 KW Softgel Encapsulation Machine With Ground Automatic Feeding / 43470 Pcs / Hour supplier
7 KW Softgel Encapsulation Machine With Ground Automatic Feeding / 43470 Pcs / Hour supplier 7 KW Softgel Encapsulation Machine With Ground Automatic Feeding / 43470 Pcs / Hour supplier 7 KW Softgel Encapsulation Machine With Ground Automatic Feeding / 43470 Pcs / Hour supplier 7 KW Softgel Encapsulation Machine With Ground Automatic Feeding / 43470 Pcs / Hour supplier

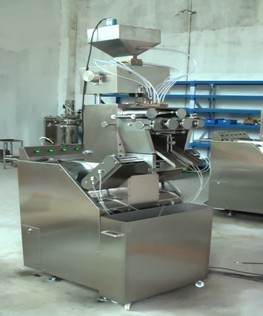

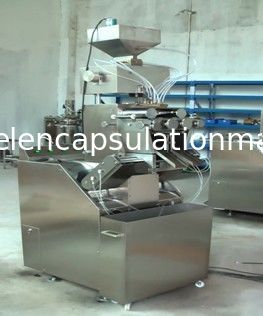

Large Image :  7 KW Softgel Encapsulation Machine With Ground Automatic Feeding / 43470 Pcs / Hour

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S406

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 20-60 days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets
Contact Now
Detailed Product Description





7 KW Softgel Encapsulation Machine With Ground Automatic Feeding / 43470 Pcs / Hour





Quick Detail



Product Name

Soft capsule making machine/Softgel machine

Driven Type

Electric

Capacity

43470pcs /hour, 8#OV

Control Mode

Full Automatic

Application

Food, pharmaceutical,softgel making machine

Capsule shape

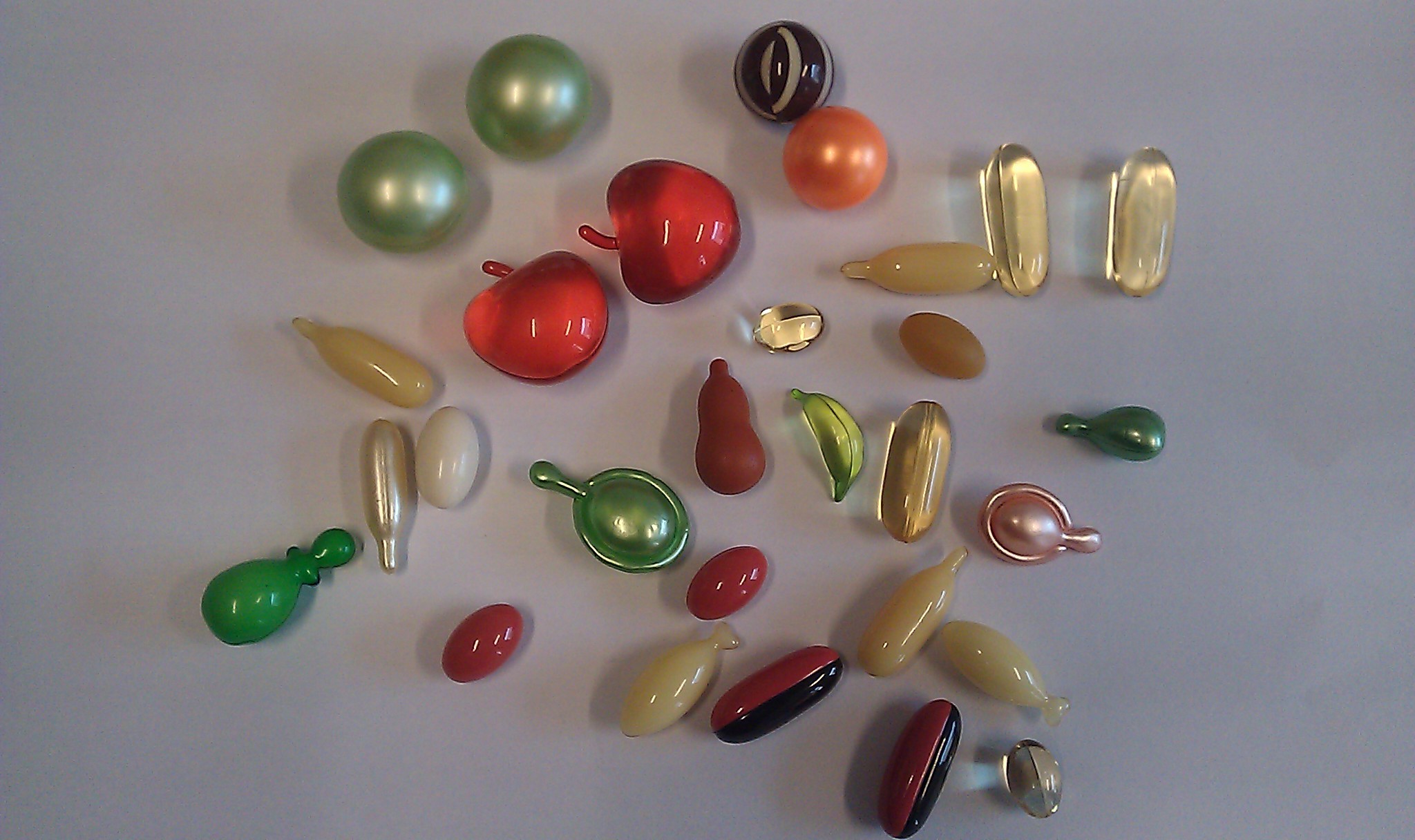

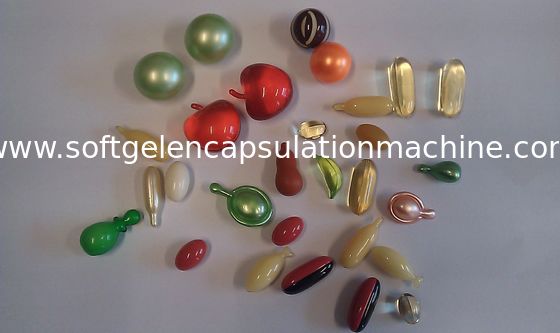

OV, OB,etc



7 KW Softgel Encapsulation Machine With Ground Automatic Feeding / 43470 Pcs / Hour



Product Description

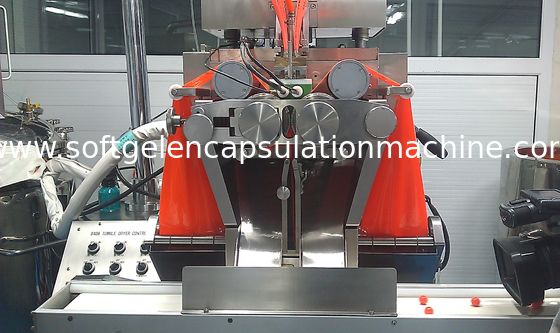

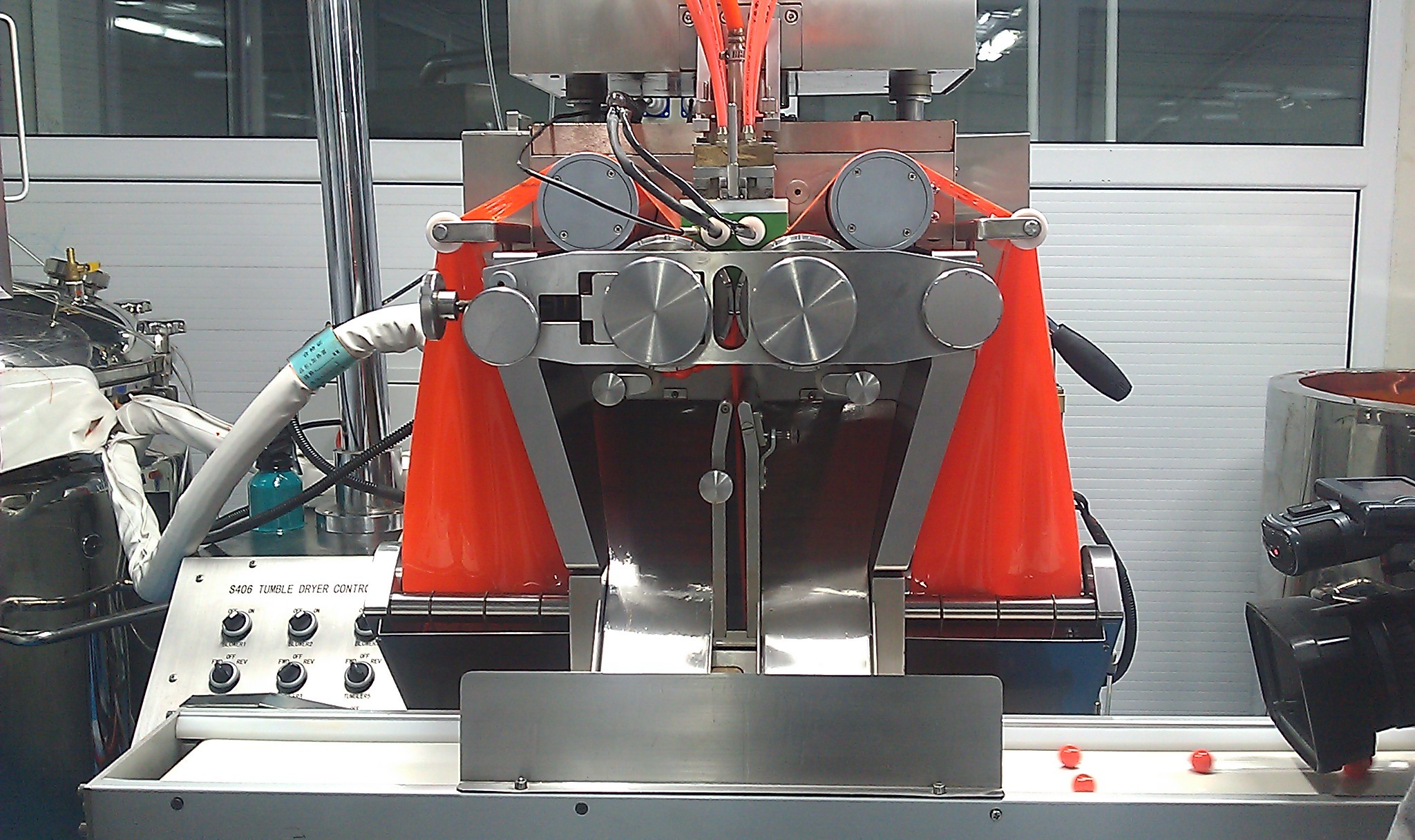

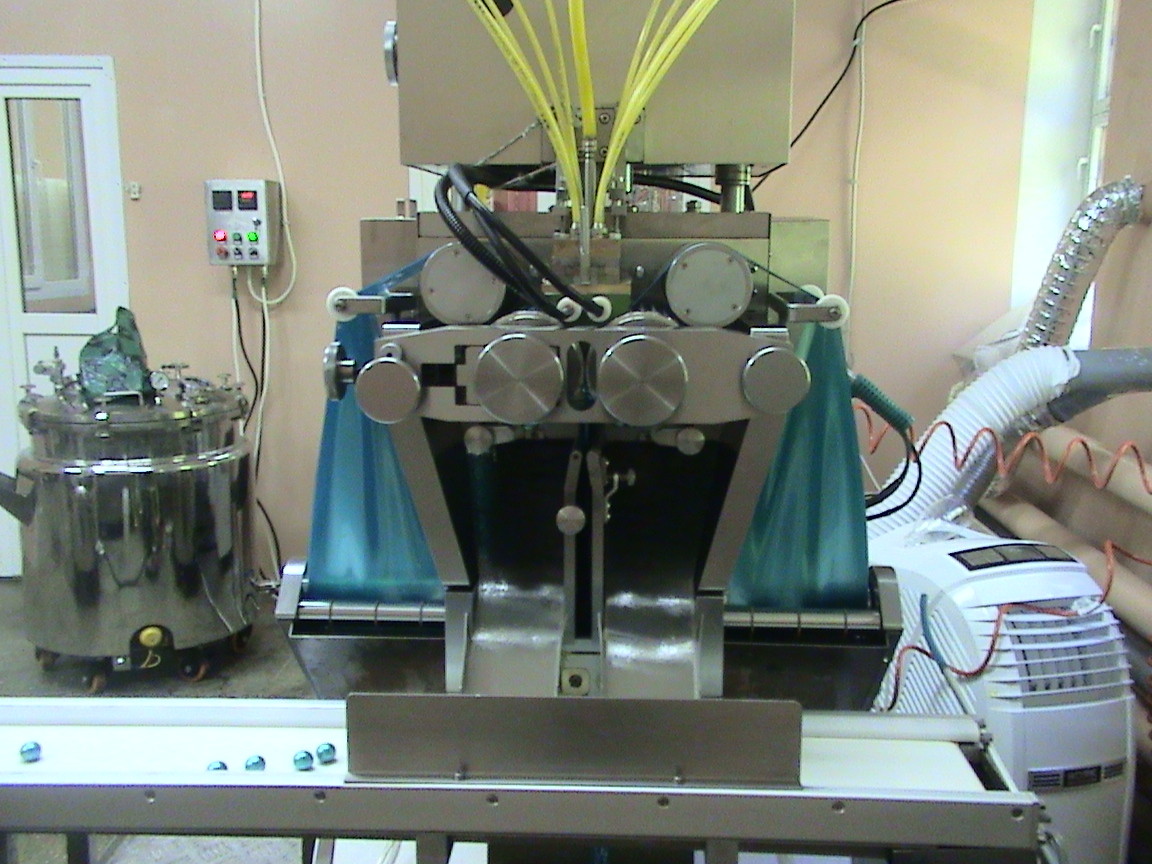

S406 Softgel Encapsulation Machine considers the need and the biggest benefits of customers as start point, combining advantages of foreign equipment and requirements of customers. S406 Softgel Encapsulation Machine’s die roll is 152 mm long. The die roll’s rotation rate can be regulated within 0 to 5 rpm, so users can choose the most appropriate speed according to different materials and process parameters. S406 Softgel Encapsulation Machine improves the bearing spindle supporting way of die roll, thus making the spindle more accuracy and much easier to repair. In addition, the machine further improves the machining precision. More helical gears are used in the process of gear moving, which improve the gear coincidence degree and transmission stability. The spilt structure of cooling fan reduces the thermal effect to the pressure pill. Besides, gelatin barrel is added with wheel which can be moved more conveniently and easily. The machine is provided with stirring or insulation optional hopper, using ground automatic feeding method. The soft capsule machine’s oil roller is made of stainless steel material, so it’s more in line with the requirements of GMP.



S406 Softgel Encapsulation machine was developed based on the traditional design, The main machine is driven by only three motors. Adopting a frequency inverter, the die roll speed can be regulated from 0 to 5 rpm steplessly. The temperature of the injecting wedge, the gelatin spreader boxes and the gelatin tanks can be regulated as desired with individual thermometer regulator. This machine has advantages of high level of automation and high productivity, and is accurate in dosage filling. It is suitable for producing pharmaceuticals, cosmetics and food, paintballs etc.



7 KW Softgel Encapsulation Machine With Ground Automatic Feeding / 43470 Pcs / Hour





Specification



Model

S406

Die roll diameter

Ф103mm

Die roll length

152mm

Die roll speed

0~5rpm

Plunger numbers

10

Dosage tolerance

+ 2%

dimension

880X640X1900mm

weight

900kg

Power consumption

7 kw

Control mode

PLC+HMI Switch/buttons

Output rate

8#OV 43470 pcs/hour







Competitve Advantages



1. Good stability

2. Adjustable rotation rate during 0-5rpm

3. Easy to operate and clean, conforming to GMP

4. Compact and beautiful

5. It can be assembled or disassembled with single hand

6. Big air flow

7. Reduce the oil consumption

8. The cable plug has good waterproof and oil proof function

9. High technical loading capacity

10. High precision

11. Easy to move and operate

12. Drum design to prevent gelatin wrinkling and sideship



Soft capsule encapsulation machine, Softgel making machine, Soft capsuel Full Automatic Machine, Paintball Encapsulation machine, Paintball  making machine
