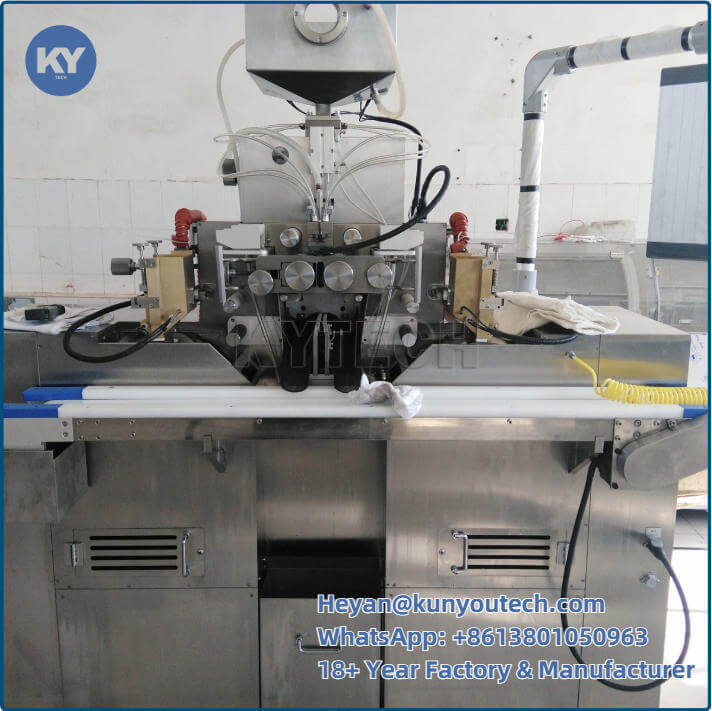

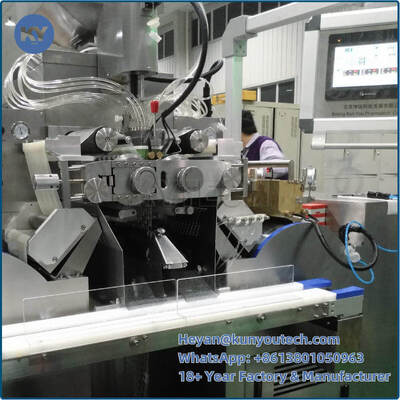

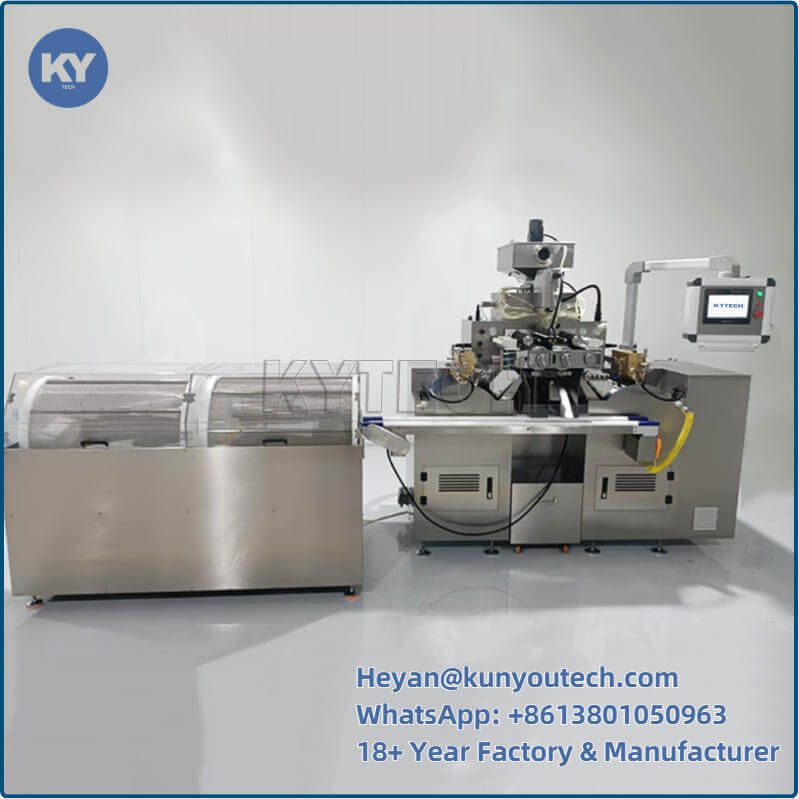

Electric Vitamin Softgel Encapsulation Machine / Softgel Manufacturing Equipment
Quick Detail
Product Name |
Soft capsule filling machine |
Driven Type |
Electric |
Capacity |
43470pcs /hour, 8#OV |
Control Mode |
Full Automatic |
Application |
Food, pharmaceutical, fish oil making |
Capsule shape |
OV, OB,etc |
Product Description
S406 soft capsule filling machine is suitable for medium scale production. Soft capsule making machine is used for making soft capsules, such as fish oil soft capsules, Vitamin E soft, Omega-3 and food capsules, etc.
Softgel encapsulation machine can control and precisionally inject the oil,mixing suspension and pasty mass into the capsule to form all kinds of softgel encapsulation with different size,shape and color. Owing to the high productivity,charging exactly,quality stabilization,high finished product rate,it is favoured by more and more manufacturers and used in the fields of medicine,health products,cosmetic and game-colour ball,etc.
Specification
Model |
S406 |
Die roll diameter |
Ф103mm |
Die roll length |
152mm |
Die roll speed |
0~5rpm |
Plunger numbers |
10 |
Dosage tolerance |
+ 2% |
dimension |
880X640X1900mm |
weight |
900kg |
Power consumption |
7 kw |
Control mode |
PLC+HMI Switch/buttons |
Output rate |
8#OV 43470 pcs/hour |
Competitve Advantages
1. Good stability
2. Adjustable rotation rate during 0-5rpm
3. Easy to operate and clean, conforming to GMP
4. Compact and beautiful
5. It can be assembled or disassembled with single hand
6. Big air flow
7. Reduce the oil consumption
8. The cable plug has good waterproof and oil proof function
9. High technical loading capacity
10. High precision
11. Easy to move and operate
12. Drum design to prevent gelatin wrinkling and sideship
Tumble dryer:
The rotating tumble dryer is specially designed for soft capsule and paintball.
