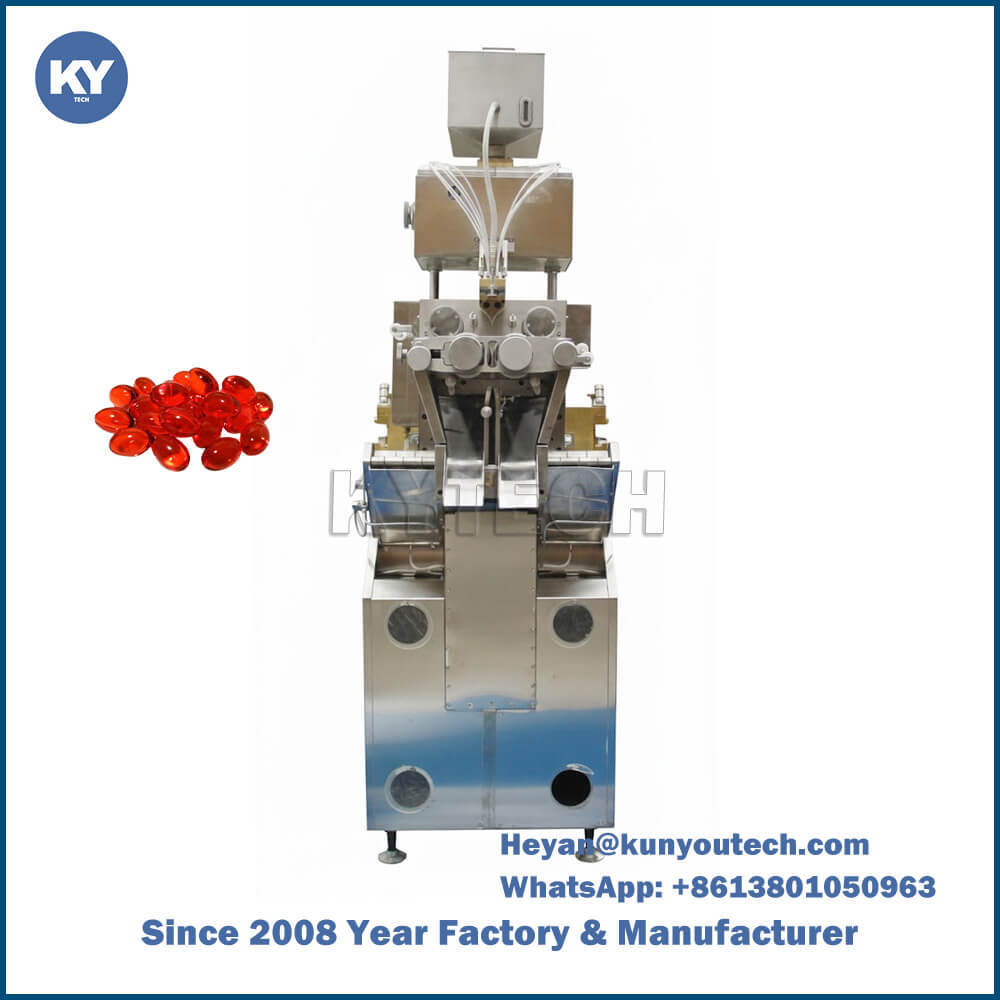

High Precision Softgel Automatic Encapsulation Machine For 8#OV 43470 Capsules / H
Quick Detail
Dimension(MM) |
880X640X1900mm |
Power consumption |
7 kw |
Pump type |
10 plungers |
Dosage Tolerance |
+2% |
Advantage |
With economic price and lower using cost |
Packing Material |
Gelatin |
Product Description

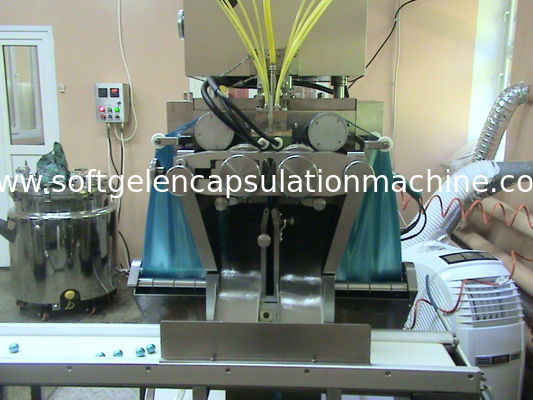

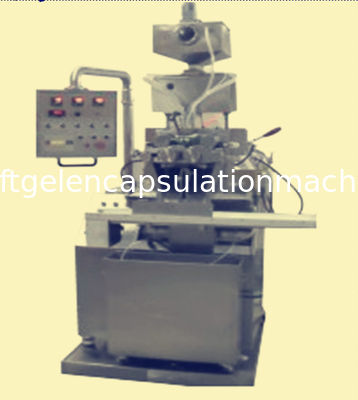

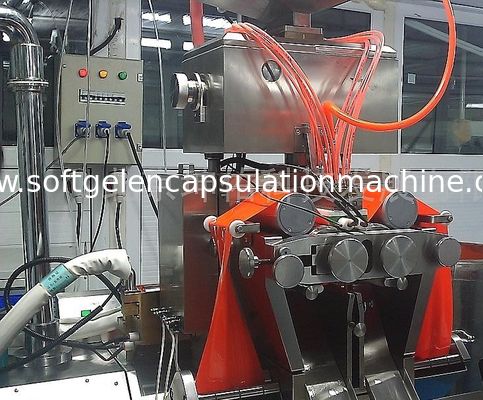

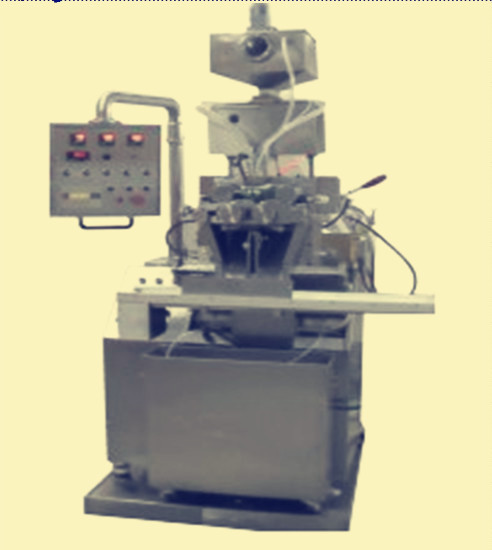

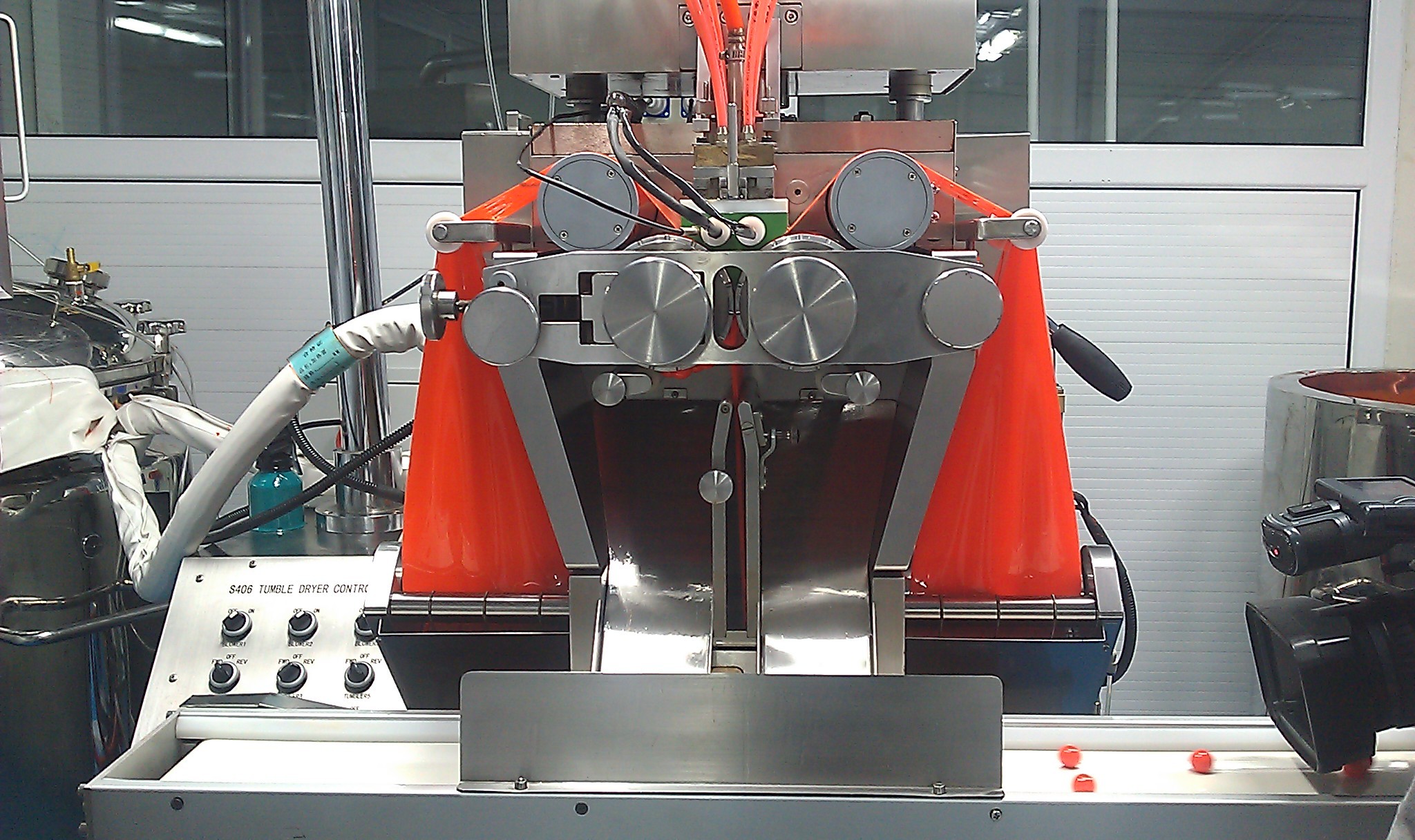

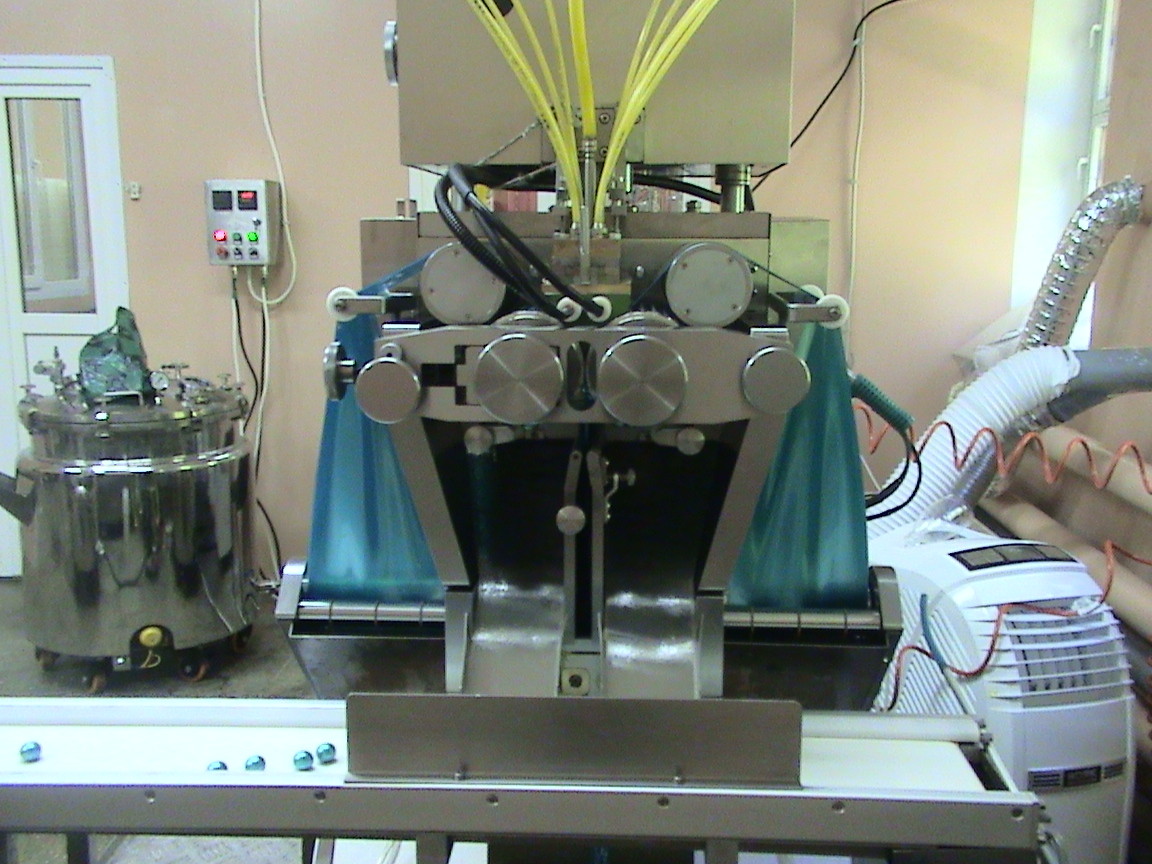

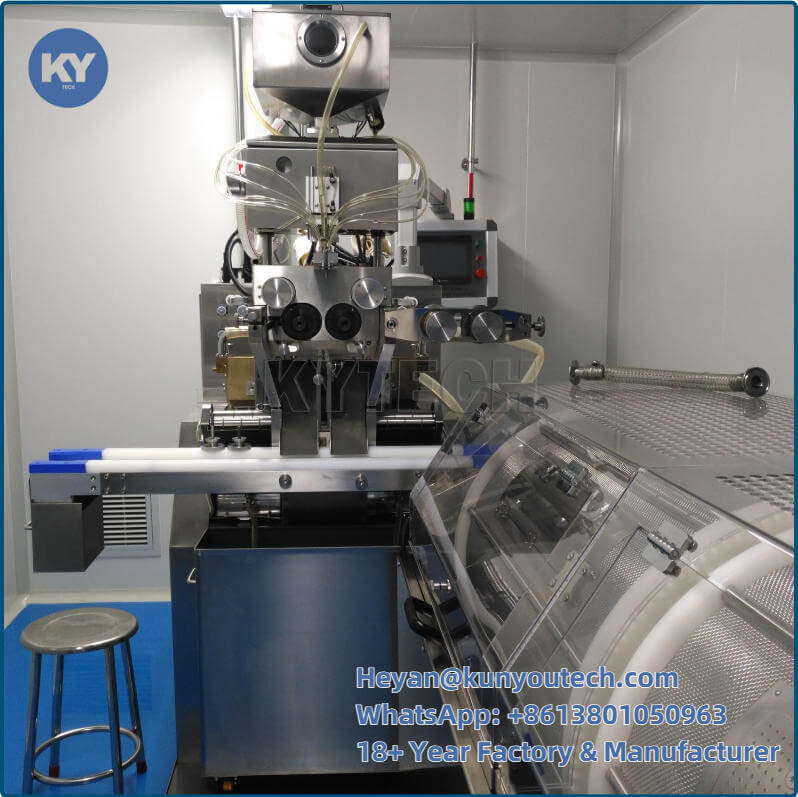

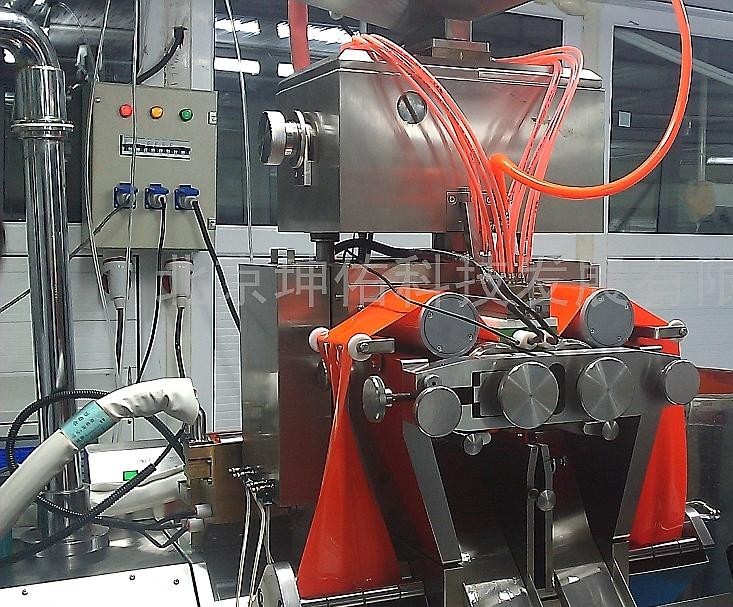

S406 Softgel Encapsulation Machine considers the need and the biggest benefits of customers as start point, combining advantages of foreign equipment and requirements of customers. S406 Softgel Encapsulation Machine’s die roll is 152 mm long. The die roll’s rotation rate can be regulated within 0 to 5 rpm, so users can choose the most appropriate speed according to different materials and process parameters. S406 Softgel Encapsulation Machine improves the bearing spindle supporting way of die roll, thus making the spindle more accuracy and much easier to repair. In addition, the machine further improves the machining precision. More helical gears are used in the process of gear moving, which improve the gear coincidence degree and transmission stability. The spilt structure of cooling fan reduces the thermal effect to the pressure pill. Besides, gelatin barrel is added with wheel which can be moved more conveniently and easily. The machine is provided with stirring or insulation optional hopper, using ground automatic feeding method. The soft capsule machine’s oil roller is made of stainless steel material, so it’s more in line with the requirements of GMP.
S406 Softgel Encapsulation machine was developed based on the traditional design, The main machine is driven by only three motors. Adopting a frequency inverter, the die roll speed can be regulated from 0 to 5 rpm steplessly. The temperature of the injecting wedge, the gelatin spreader boxes and the gelatin tanks can be regulated as desired with individual thermometer regulator. This machine has advantages of high level of automation and high productivity, and is accurate in dosage filling. It is suitable for producing pharmaceuticals, cosmetics and food, paintballs etc.
Specification
Model |
S406 |
Die roll diameter |
Ф103mm |
Die roll length |
152mm |
Die roll speed |
0~5rpm |
Plunger numbers |
10 |
Dosage tolerance |
+ 2% |
dimension |
880X640X1900mm |
weight |
900kg |
Power consumption |
7 kw |
Control mode |

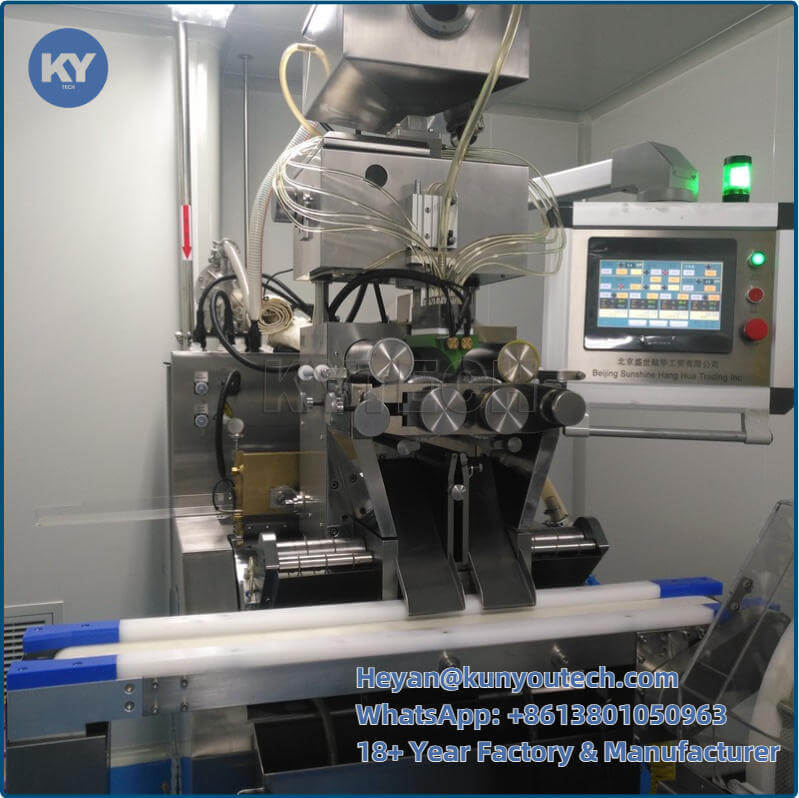

PLC+HMI Switch/buttons |
Output rate |
8#OV 43470 pcs/hour |
Competitve Advantages
1. Good stability
2. Adjustable rotation rate during 0-5rpm
3. Easy to operate and clean, conforming to GMP
4. Compact and beautiful
5. It can be assembled or disassembled with single hand
6. Big air flow
7. Reduce the oil consumption
8. The cable plug has good waterproof and oil proof function
9. High technical loading capacity
10. High precision
11. Easy to move and operate
12. Drum design to prevent gelatin wrinkling and sideship
