Stainless Steel / Alumium Softgel Capsule Machine For Pharmaceutical Enterprises

1 set
MOQ
USD 1-100000 per set
Price
Stainless Steel / Alumium Softgel Capsule Machine For Pharmaceutical Enterprises
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Soft Gelatin Encapsulation Making
Material: Stainless Steel And Alumium
Highlight:

soft gelatin encapsulation machine

,

automatic capsule machine

Basic Infomation
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S407
Payment & Shipping Terms
Packaging Details: Wood cages
Delivery Time: 6 weeks
Payment Terms: T/T, L/C
Supply Ability: 1000 sets per year
Product Description

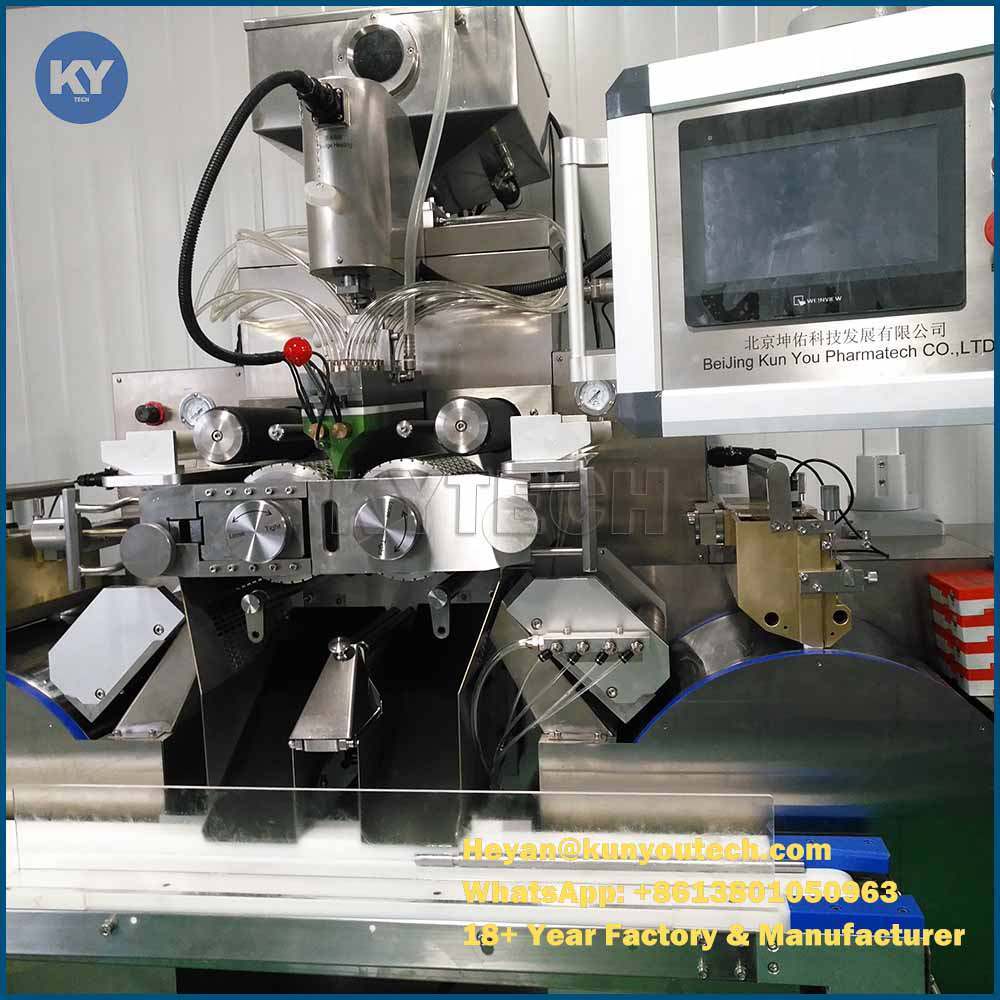

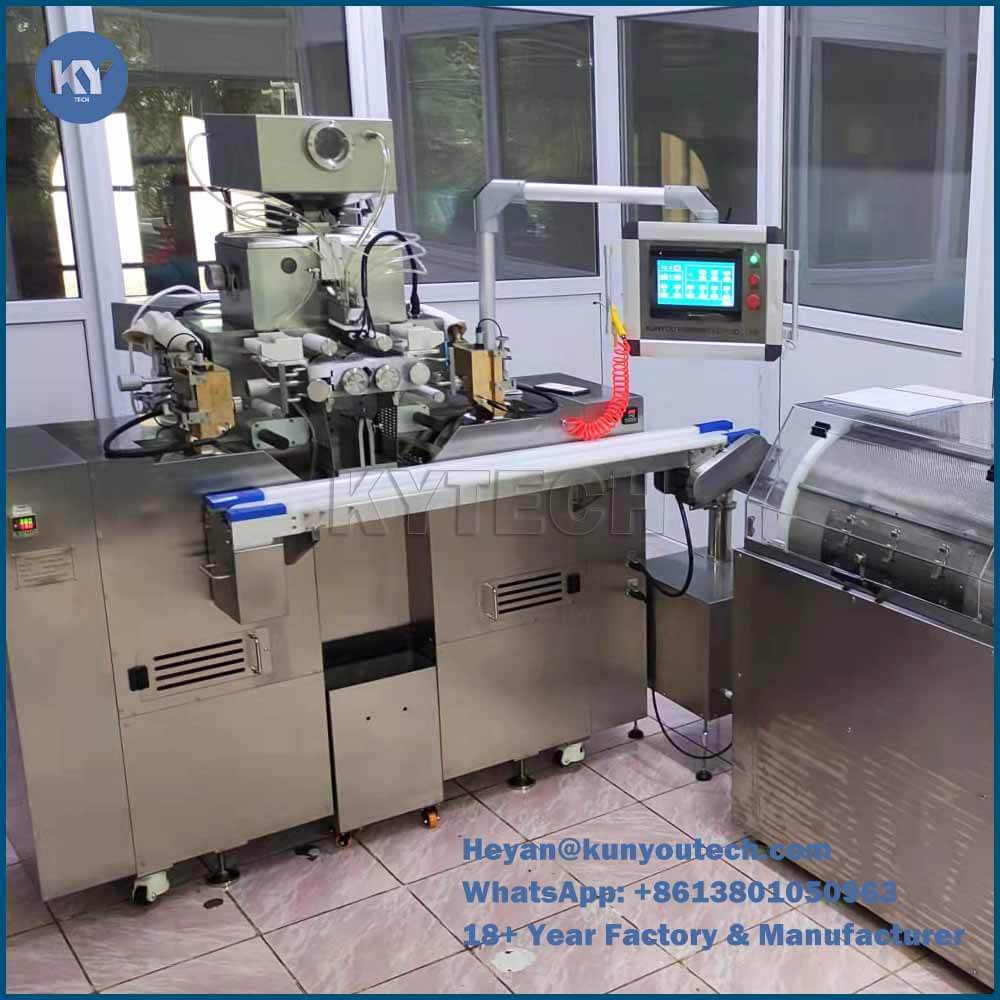

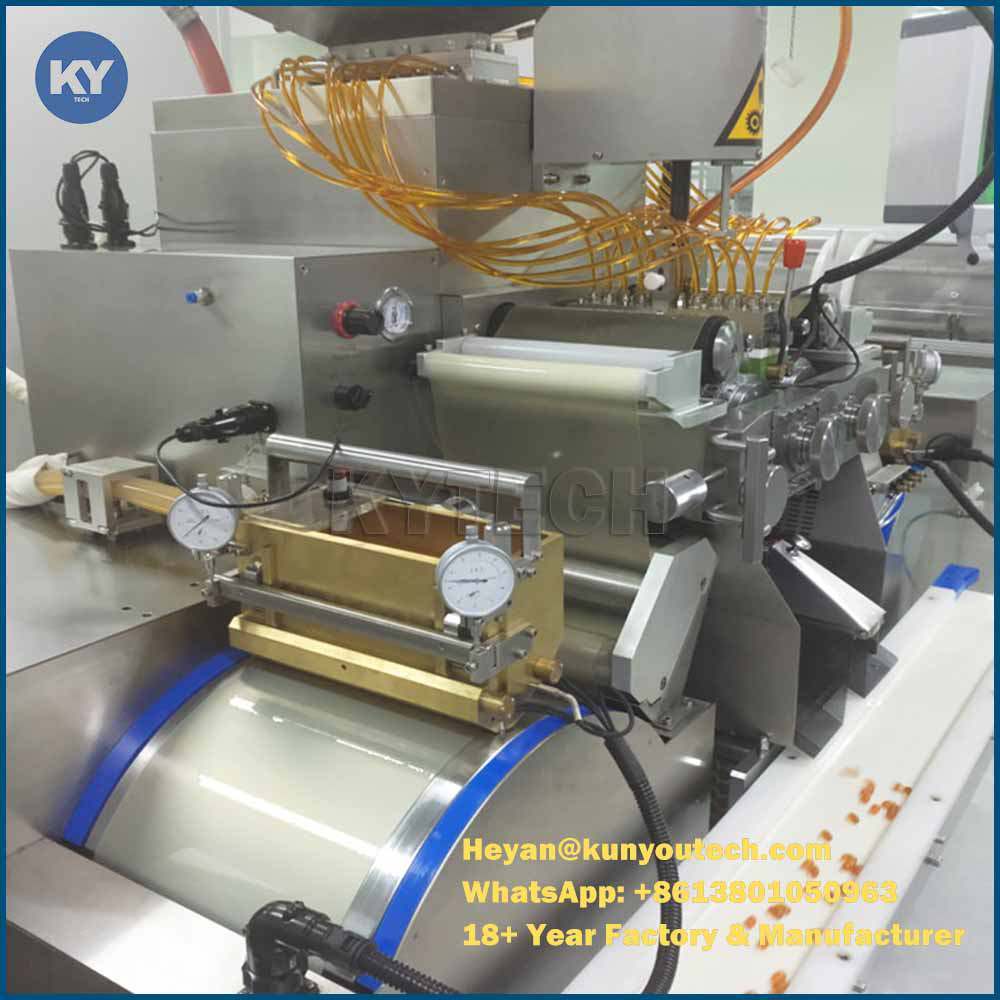

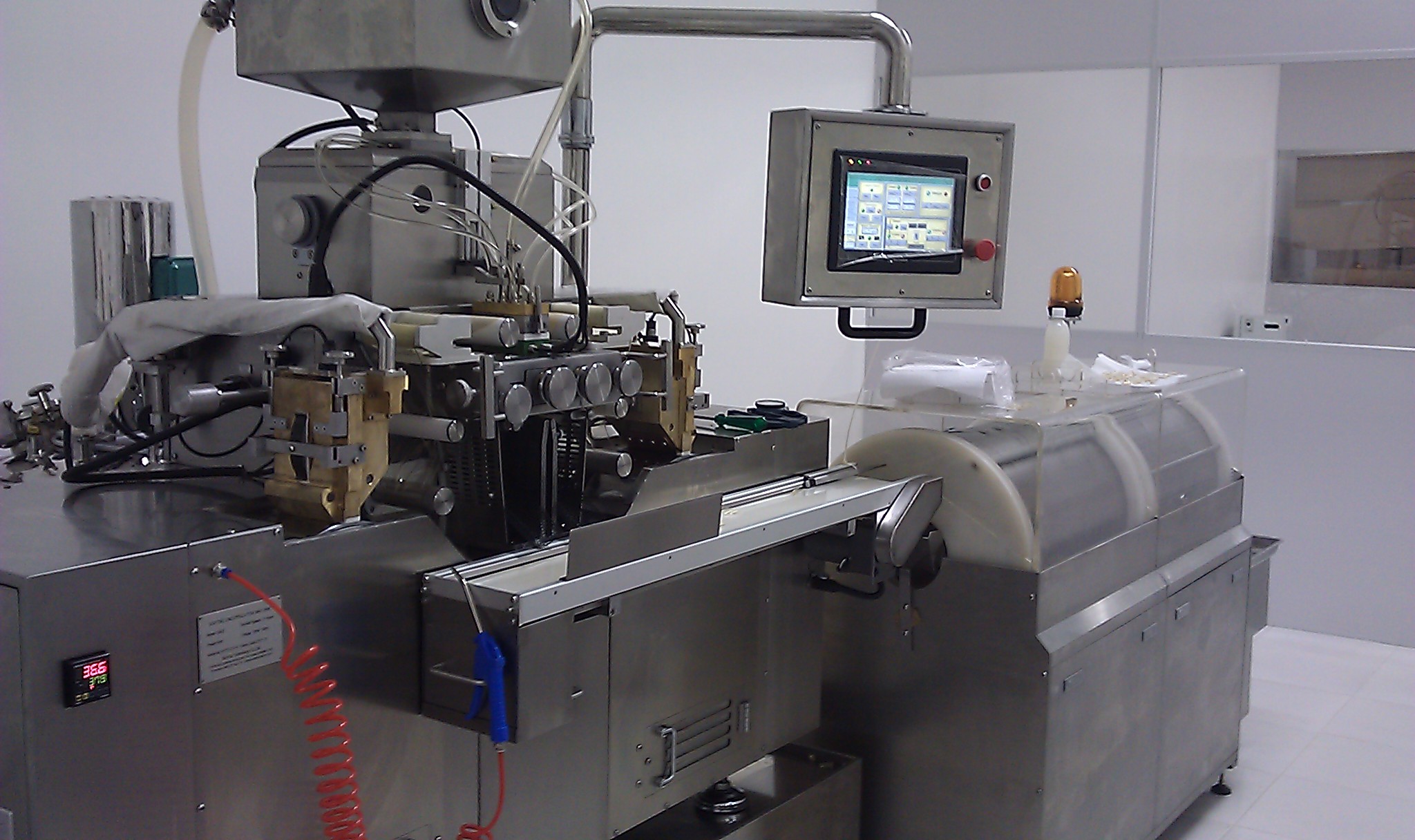

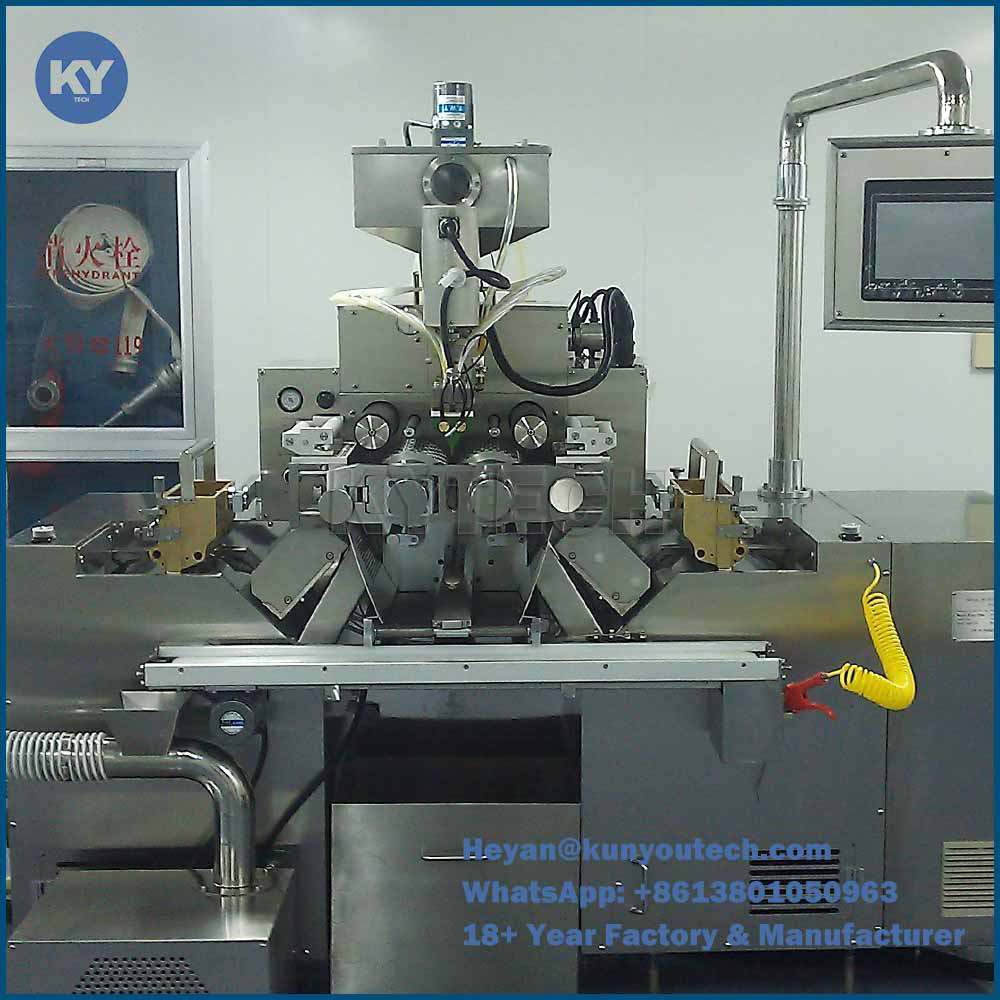

S407 softgel capsule machine paintball encapsulation making





Product Description



S407 Softgel Encapsulation Machine is developed based on Model S406 softgel encapsulation machine. The die roll length is 20mm longer. It combines advantages of foreign equipment and requirements of customers,considering the needs and the biggest benefits of customers as start point.There are following features besides S406’s. S407 adopts PLC operation, making operation more convenient. The die roll’s rotation rate can be regulated within 0 to 7 rpm, so users can choose the most proper rotation rate according to data of different material and techniques. Drying cycle is controlled by PLC unified, so users can regulate the cycle time conveniently. The tumbler dryer is designed with a device to remind operators to prepare well when discharging. S407 can realize the function of statistical statements and printing. The machine drive system’s lubrication pump is droved by motor alone, which greatly improves the lubrication performance when main equipment operating at a very slow speed. At the same time, it can reduce machine vibration, prolong machine overhaul time and save investment for users.


Specifically speaking, it has the following characteristics:

Dosage deviation:< ±2%
Material of oil roller: porous stainless steel
Parallel degree of main shaft of the die rolls:<0.02mm
Micro gelatin ribbon oil lubrication
Precision temperature control for injection wedge, spreader box and chilled water.
The running parameters can be stored and recalled with a finger tip touch if necessary.
Pneumatic wedge lift up.
Pneumatic left die shaft movement.

Application

It’s mainly for softgel making enterprises and pharmaceutical enterprises and universities.
