Large Scale Fish oil softgel Encapsulation Machine With Stainless Steel Cover

China Large Scale Fish oil softgel Encapsulation Machine With Stainless Steel Cover supplier
Large Scale Fish oil softgel Encapsulation Machine With Stainless Steel Cover supplier Large Scale Fish oil softgel Encapsulation Machine With Stainless Steel Cover supplier Large Scale Fish oil softgel Encapsulation Machine With Stainless Steel Cover supplier Large Scale Fish oil softgel Encapsulation Machine With Stainless Steel Cover supplier Large Scale Fish oil softgel Encapsulation Machine With Stainless Steel Cover supplier

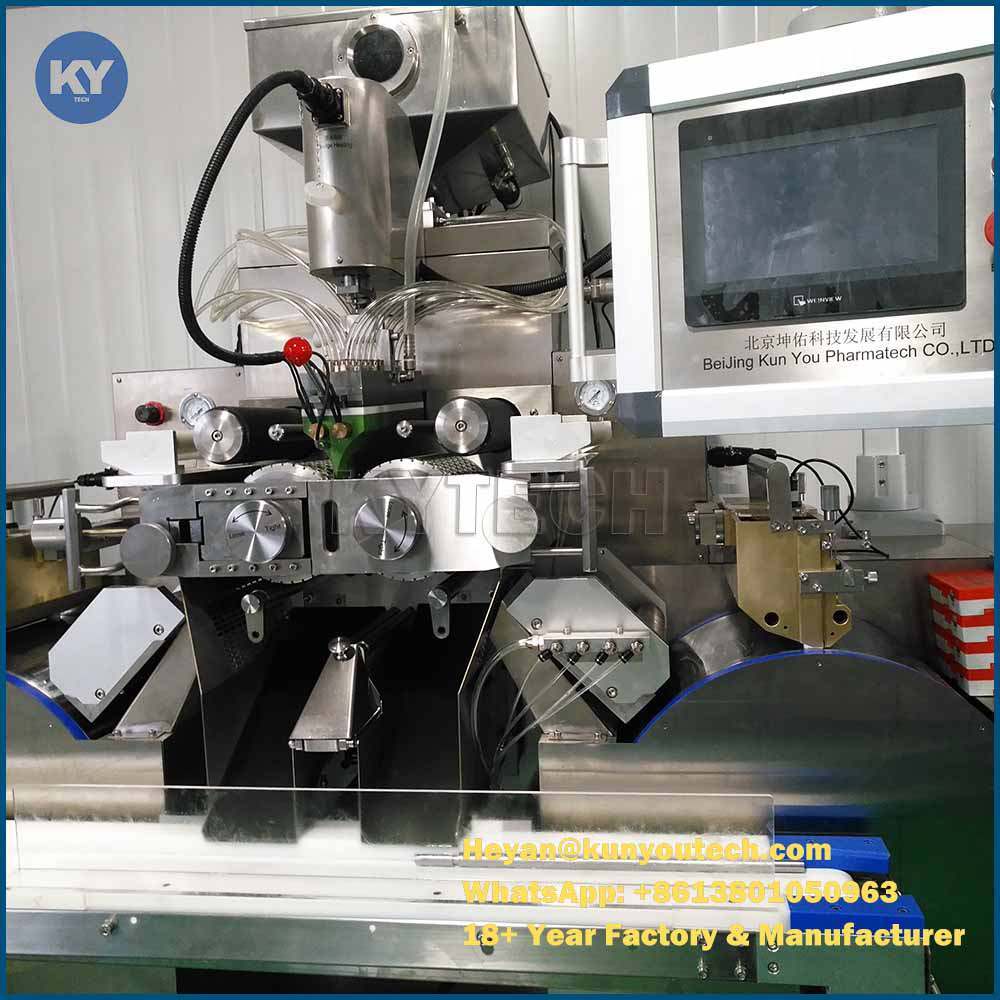

Large Image :  Large Scale Fish oil softgel Encapsulation Machine With Stainless Steel Cover

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S610

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 50000USD set
Packaging Details: Wood cages
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 5 set per mon
Contact Now
Detailed Product Description

Fish oil softgel Encapsulation Machine



Specifications

120000 pcs softgels / H
Stainless Steel Cover
Micro Lubrication
Large scale production



Soft Capsule Encapsulation Machine Product Description

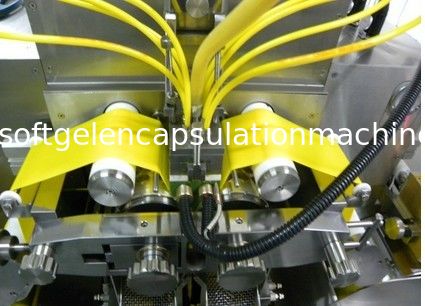

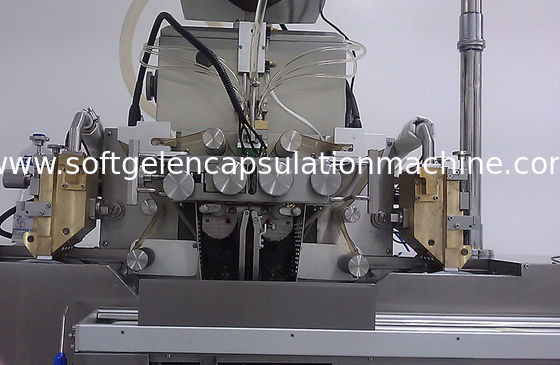

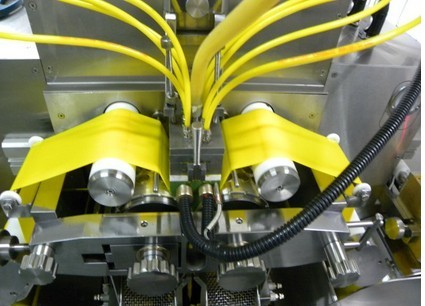

Fish oil / Vitamin large scale soft capsule encapsulation machine’s mechanical parts adopt independent single adjustable lubrication, reducing mechanical wear and prolonging the time without any mistakes. The drug pump can run together with the capsule mould automatically and synchronously, it’s very convenient to adjust the spraying time.

And the control system has faults diagnosis function. It can realize remote diagnosis after the upgrade.

The cage can be disassembled without moving dryer. It’s easy to clean. There are material receiving discs under the roll cage, making S610 large softgel making machine more in line with the requirements of GMP.

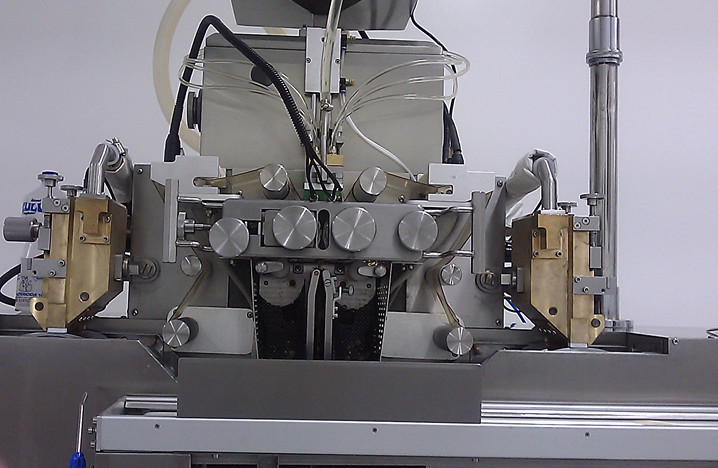

S610 roll type soft capsule automatic production line is used to press and inject the oil liquid, suspension liquid or paste quantitatively and encapsulated them in the gelatin, then producing different sizes and different shapes of the sealing softgels. The production line is mainly composed of main machine, tumbler dryer, fill material system and pneumatic theroms plastic barrels, etc.


Specifically speaking, it has the following characteristics:



Capsule brushes are driven by independent motor to prevent the gelatin stuck into the die roll cavity.
Separate lubrication system for medicine pump and die roll assembly.
Water cooled drum also have air blowers

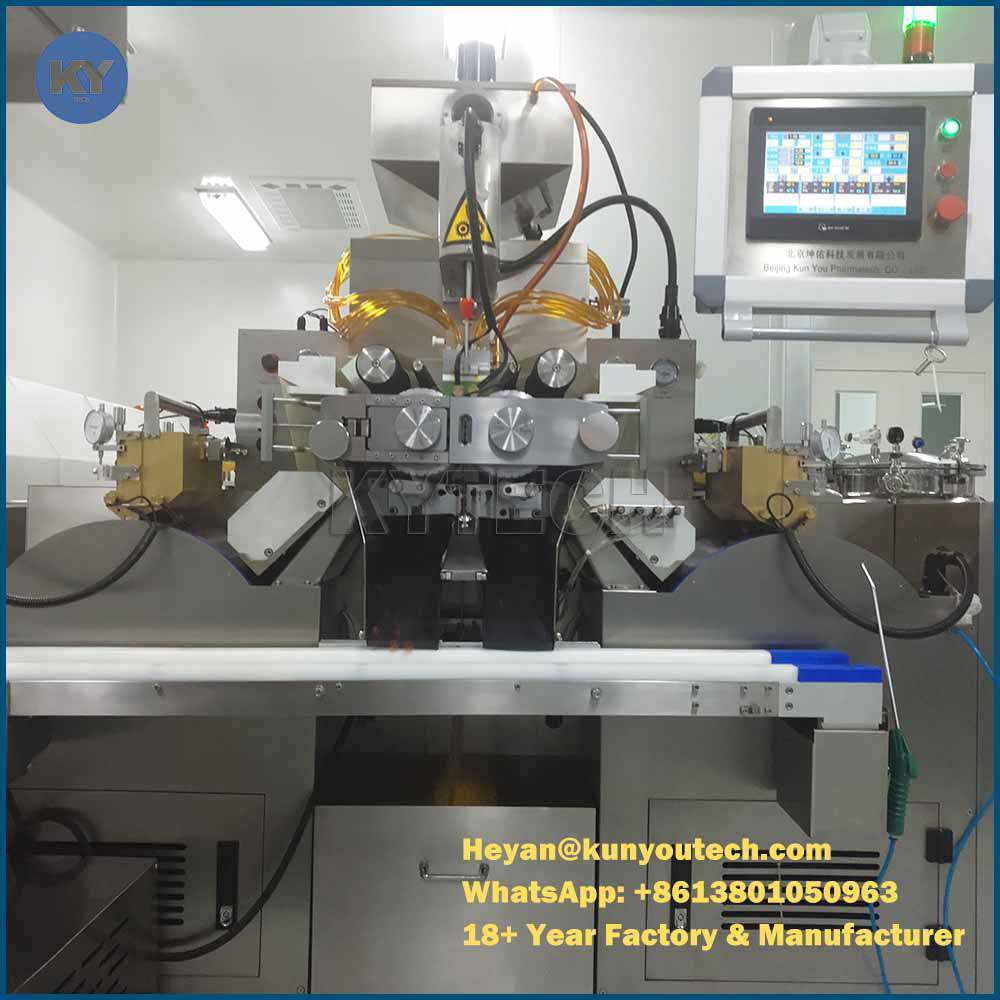

PLC and touch screen control with self-trouble diagnostic.
High accuracy medicine pump. The diameter tolerance of the 20 plungers are less than 0.005mm.





Fish Oil Vitamin Large Scale Soft Capsule Encapsulation Machine





Specification



Model S610
Die roll size 150×250mm
Die roll speed 0~5rpm
Max plunging volume per stroke 0~2ml
Plunger numbers 20/24
Overall dimension 2050×1200×1850
Weight of main machine 1900kg
Power consumption 13.5kw
Control mode PLC+Touch Screen
output 8#OV 120000 pcs/hour

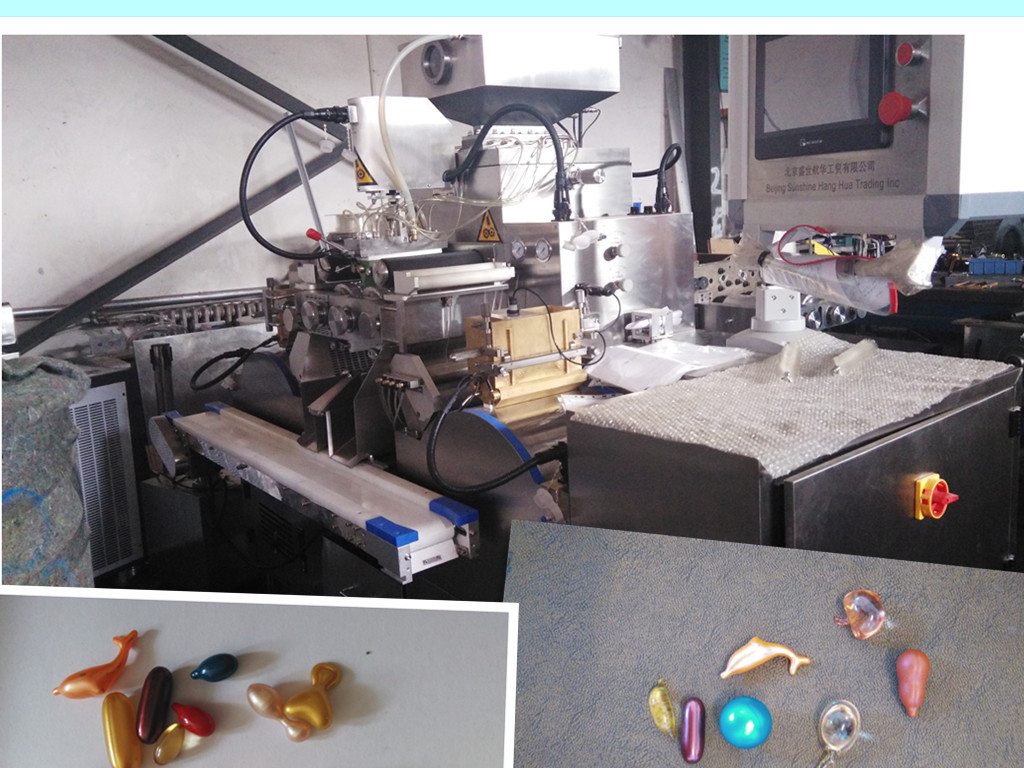

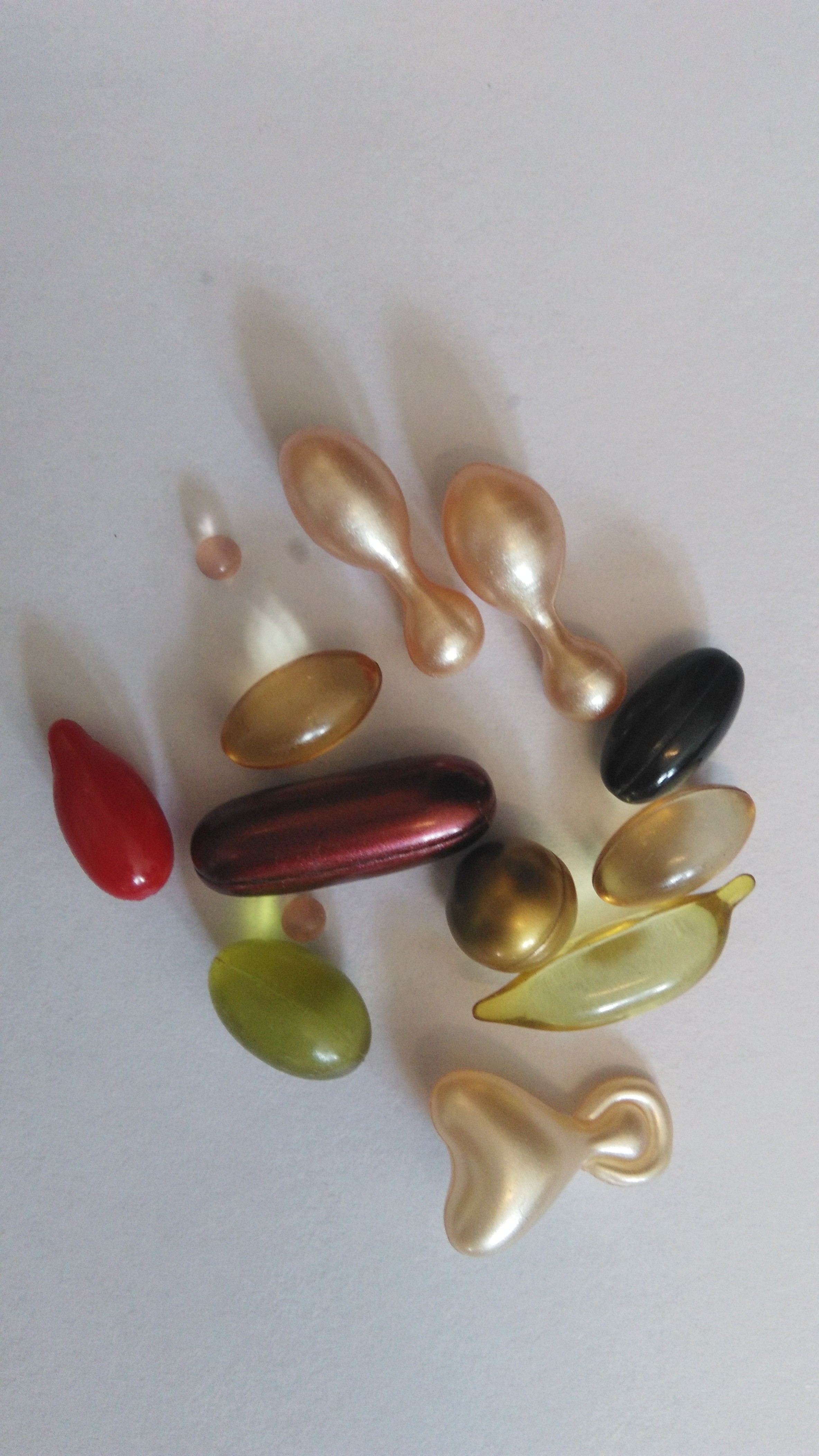

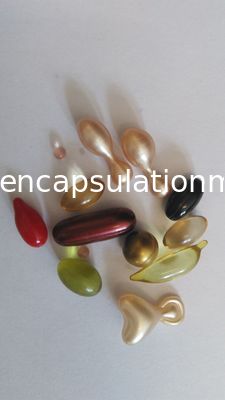

Our softgel making machine not only can produce soft capsule, such as fish oil, vitamin, but also can produce bath beads for cosmetic.

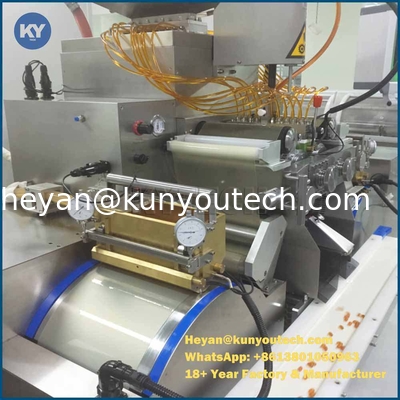

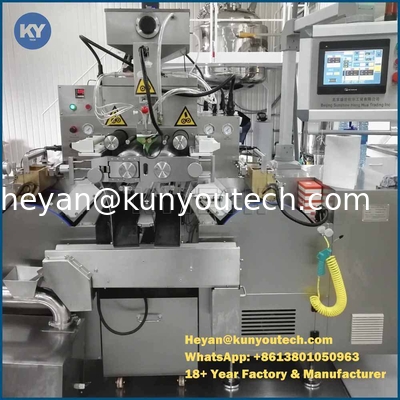

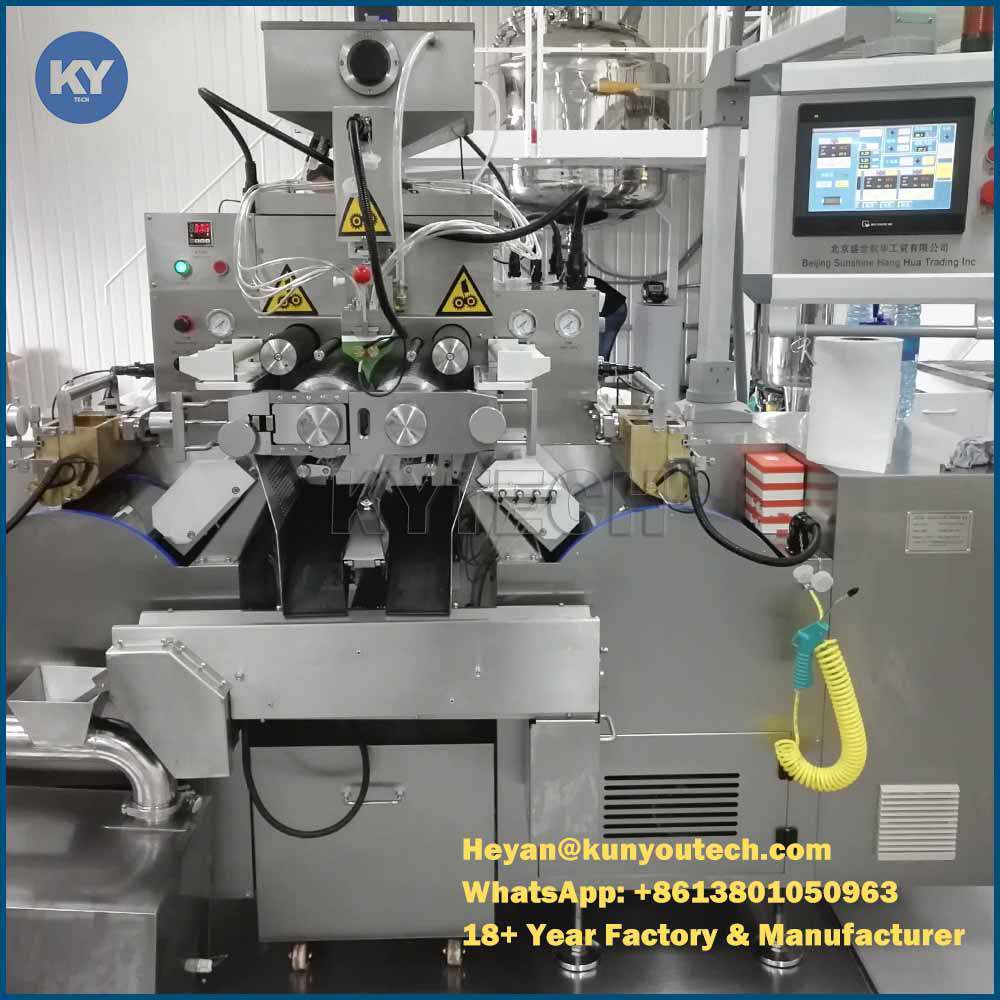

Fish Oil Vitamin Large Scale Soft Capsule Encapsulation Machine

Fish Oil Vitamin Large Scale Soft Capsule Encapsulation MachineFish Oil Vitamin Large Scale Soft Capsule Encapsulation Machine



Large Scale Fish oil softgel Encapsulation Machine With Stainless Steel Cover

Fish Oil Vitamin Large Scale Soft Capsule Encapsulation Machine

Fish Oil Vitamin Large Scale Soft Capsule Encapsulation Machine
