Big Scale Fish Oil Softgel Capsule Machine / Encapsulation Machine S610
Soft Capsule Encapsulation Machine Product Description
Fish oil / Vitamin large scale soft capsule encapsulation machine’s mechanical parts adopt independent single adjustable lubrication, reducing mechanical wear and prolonging the time without any mistakes. The drug pump can run together with the capsule mould automatically and synchronously, it’s very convenient to adjust the spraying time.
And the control system has faults diagnosis function. It can realize remote diagnosis after the upgrade.
The cage can be disassembled without moving dryer. It’s easy to clean. There are material receiving discs under the roll cage, making S610 large softgel making machine more in line with the requirements of GMP.

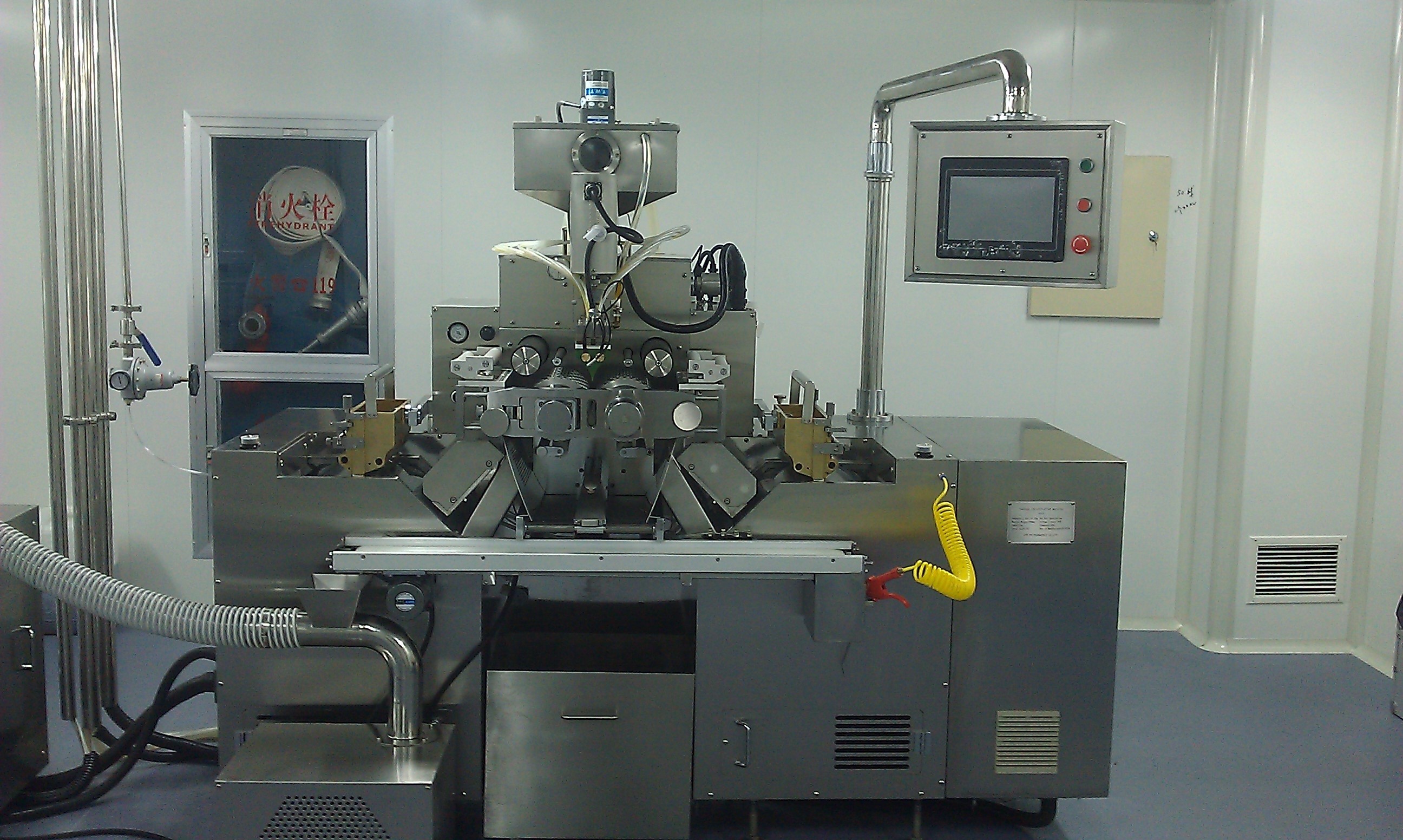

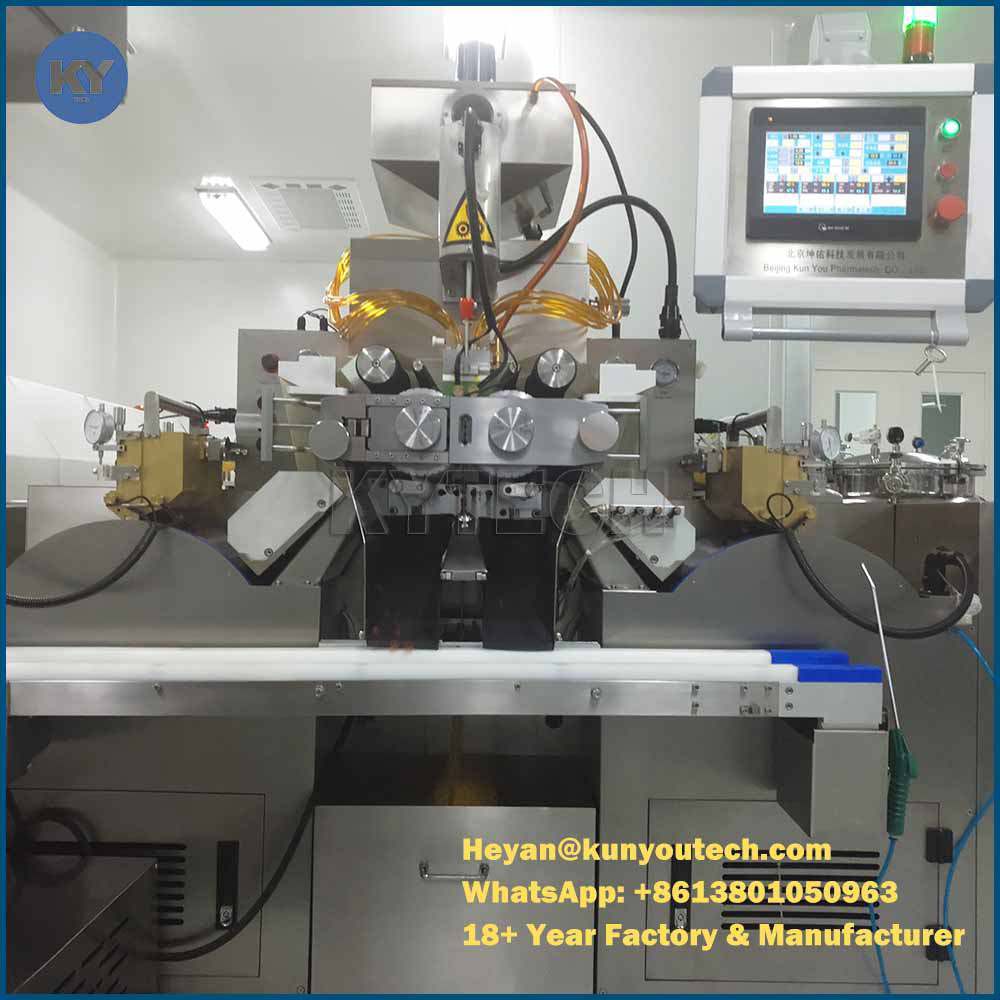

S610 roll type soft capsule automatic production line is used to press and inject the oil liquid, suspension liquid or paste quantitatively and encapsulated them in the gelatin, then producing different sizes and different shapes of the sealing softgels. The production line is mainly composed of main machine, tumbler dryer, fill material system and pneumatic theroms plastic barrels, etc.
Specifically speaking, it has the following characteristics:

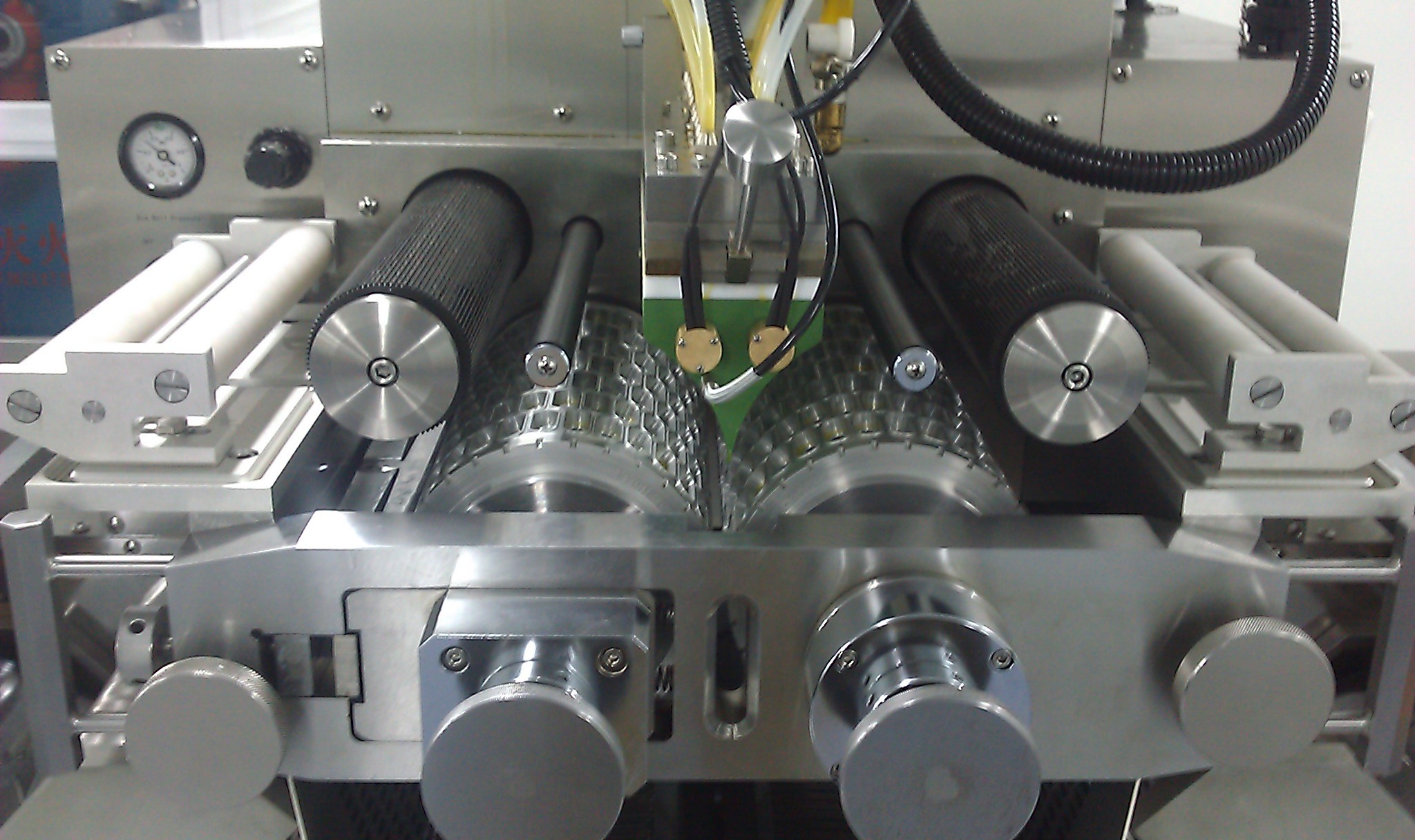

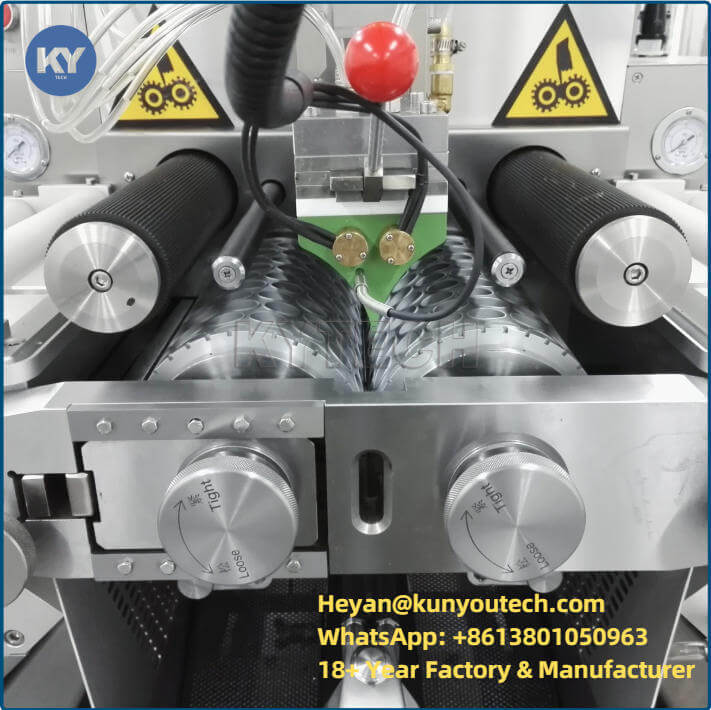

Capsule brushes are driven by independent motor to prevent the gelatin stuck into the die roll cavity.
Separate lubrication system for medicine pump and die roll assembly.
Water cooled drum also have air blowers
PLC and touch screen control with self-trouble diagnostic.
High accuracy medicine pump. The diameter tolerance of the 20 plungers are less than 0.005mm.
Fish Oil Vitamin Large Scale Soft Capsule Encapsulation Machine

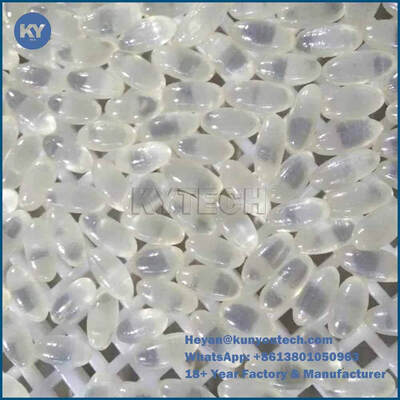

Our softgel making machine not only can produce soft capsule, such as fish oil, vitamin, but also can produce bath beads for cosmetic.
Fish Oil Vitamin Large Scale Soft Capsule Encapsulation Machine
SPECIFICATIONS FOR S610 Softgel Capsule Machine
|
|||
S610
Model
|
Power | 13.5KW | |
Die roll size |
150×250mm |
||
Capacity | 12000capsule | 8#OV@4rpm | |
Main performance parameters
|
Main performance parameters | Overall dimension |
2050×1200×1850 |
Travel speed (max. & min.) | rpm | 0-7 | |
Weight | 1900 | kg | |
Control mode |
Max plunging volume per stroke | 2ml | |
Plungers Number | 20 | ||
Control | PLC+Touch Screen |
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Name:Micro Lubrication
Name:Veggie material air pressure spreder box
Name:PU Conveyor, Can change easiler
Name: SS316 Hopper.Double Layer ,can be desiger as your requirement
Name: Pump Can be with Ti and other material coating ,As your requirement
*4.Inquiry and consulting support.
5. View our Factory.
6. Training how to instal the machine, training how to use the machine.
7. Engineers available to service machinery overseas.
Packaging | |
Size
|
Total about 45 cubic meters the wholes production line |
Weight
|
7T |
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Company Information
Beijing KUN YOU Pharmatech Co., Ltd., which is established in 2008, has been focusing on designing, manufacturing and selling pharmaceutical machinery, food machinery and paintball machinery.
KUN YOU Pharmatech provides various models of Softgel Encapsulation Machines (soft capsule encapsulation machine, paintball machine, soft gelatin capsule machine), such as S406 with 6" dies, the medium size S407 with 7.5" dies and the latest and largest S610 with 10"dies. Here, you can find whatever paintballs and soft capsules that you need. Welcome to Beijing KUN YOU Pharmatech Co., Ltd. We look forward to cooperating with you!
After more than ten years of unremitting efforts, our continuing research and cooperation with many domestic and foreign pharmaceutical factory, plant health products and paintball production factory, not only enable us to make a lot of technical innovation in soft capsule equipment, but also to accumulate rich experience in the production process of soft capsule. We also have rich experience in softgel formulation and manufacturing process. We have three sets of high accuracy CNC milling machine, together with lathe, grinding machine, EDM machine, wire cutting machine, we can make state-of-the-art equipments and softgel die roll.
In the past years, we have made great achievements due to our good credit and service. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as USA, Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Denmark, Spain, Russia, Brasil, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines, turn key projects and know-how.
In Kunyou you can get your desired goods with the best prices and good quality. We welcome your enquiries from at home and abroad.
Q1:Are you factory or trading company?
A: We are factory and manufacture.
Q2: Where is your factory located? How can I visit your factory?
A: We are located in Beijing, you can fly to Beijing airport or Nanyuan airport. Wecan pick you up from the airport or your hotel.Welcome to visit us!
Q3:How to place my order?
A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.
Q4 : What is the payment term?
A: 30% T/T deposit and 70% T/T balance payment before shipping.
Q5:How long is the delivery time?
A: About 35- 40 working days.
