Health Food / Cosmetic soft gelatin encapsulation machine for Cream filling

Certification
Good quality Paintball Encapsulation Machine for sales
Good quality Paintball Encapsulation Machine for sales
I'm Online Chat Now

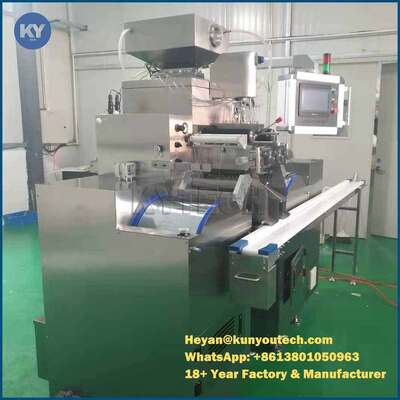

Health Food / Cosmetic soft gelatin encapsulation machine for Cream filling

China Health Food / Cosmetic soft gelatin encapsulation machine for Cream filling supplier
Health Food / Cosmetic soft gelatin encapsulation machine for Cream filling supplier Health Food / Cosmetic soft gelatin encapsulation machine for Cream filling supplier Health Food / Cosmetic soft gelatin encapsulation machine for Cream filling supplier Health Food / Cosmetic soft gelatin encapsulation machine for Cream filling supplier Health Food / Cosmetic soft gelatin encapsulation machine for Cream filling supplier Health Food / Cosmetic soft gelatin encapsulation machine for Cream filling supplier

Large Image :  Health Food / Cosmetic soft gelatin encapsulation machine for Cream filling

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S610

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30-90 days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets Per Year
Contact Now
Detailed Product Description
Material: SS316 Capacity: 100,000 Capsule/h 8#OV
Die Roll: 150*250 Application: Oil&Cream
Capsule Shape: As Requirement Servce: Engering Avaliable



Health Food / Cosmetic soft gelatin encapsulation machine for Cream filling





Quick Detail



Pump Type

20/24 Plungers

Driven Type

Electric

Capacity

120000pcs /hour, 8#OV

Dosage deviation

<±1.5%

Application

Medical,Food, Pharmaceutical

Control

PLC





Product Description



S610 Softgel Encapsulation Machine is the large model for softgel making. From the practical design to the amusing appreance, S610 softgel Encapsulation Machine applys high quality 304 SUS and spare parts from famous brands.




It includes the following features:



1. Computer control the plunger pump, improve the precision of medicine injection volume, and save more medicine and material cost.

2. Bigger cam drive plunger pump, can provide stronger to plunger pump. That make the machine can inject widely high viscosity of raw material, such as Suspension, Propolis (Bee glue), Soft phospholipids, Liquid calcium and Herbal suspension.

3. Friendly human-computer interface, easy to operated. The simulated running of machine. The data can be set via touch screem, and easy to realizes network monitoring, statistics and reports output.
4. High quality and intelligence control system, PLC true color touch screen technology adopted by the electronic control system. All electric parts use world brand parts, such as Siemens, Schneider
5. Speed of each gelatin film drum and main axis can be adjusted respectively by respectively invertor; that is controlled by operator according to actually requirement.
6. The opening of gelatin box is controlled accurately, the gauge showed gelatin film thickness. Easy to control the thickness.
7. Automatic controlled water-cooling system is adopted for the cooling of gelatin film, which is more safety and more reliable.
8. Air-cooling system is adopted at the output of softgelcapsule, that make softgel capsule more beautiful.
9. Insulation hopper, can keep medicine temperature steady, more suit to fill suspension into the softgel capsules.
Health Food / Cosmetic soft gelatin encapsulation machine for Cream filling
Specification


Model

S610

Die roll size

150×250mm

Die roll speed

0~5rpm

Max plunging volume per stroke

0~2ml

Plunger numbers

20/24

Overall dimension

2050×1200×1850

Weight of main machine

1900kg

Power consumption

20 kw

Control mode

PLC+Touch Screen

output

8#OV115,440 pcs/hour


Automatic Softgel Making Machine, Soft capsule Encapsulation Machine, Paintball Encapsulation Machine



Main features of equipment:



1. The left and right main shaft holes are machined by using boring lathe imported from Switzerland, despite of longer rolling mould, it still ensures very high axiality, thus ensuring the good-looking of soft capsule seams and rate of finished products.



2. The pill-pressing operation is simple and reliable because the pneumatic clamping mould system is adopted.



3. Electric-driven lifting spray unit, it can stop at any position according to needs, so as to reduce the worker's labor intensity.



4. The rotating speeds of each gelatin skin roller and main shaft can be controlled independently by variable frequency speed regulation; the operator can adjust accordingly as needed.



5. The micro lubrication design is adopted; the lubricating oil quantity can be adjusted to minimum.



6. Optimized design of driving system reduces greatly the noise of whole equipment.



7. The opening of gelatin box is regulated accurately so that it is more convenient, prompt and exact for the adjustment of gelatin film thickness.



8. Automatic controlled air-cooling method id adopted for the cooling of gelatin skins, it can normally operate even in high humidity and high temperature conditions.



9. Air-cooling shaping design of capsule output area makes the shapes of capsule more beautiful.



10. The gelatin skin roller, oil rolling system and mould are designed in parallel; it solves thoroughly the problems of gelatin skin deviation.



11. Rectangular spout design makes the forming of suspension liquid soft capsule more beautiful.



12. The electric control system adopts PLC and touch screen techniques, as a result, the operating boundary is simple and clear, and the operating process is more shortcut.



Packing&Shipping

Health Food / Cosmetic soft gelatin encapsulation machine for Cream filling

We pack the whole machine with wooden case and pack the softgel die roll and paintball die roll with standard boxes. We ship the whole line of macine by ocean through the freight agent.

Our services



We not only provide the whole paintball & softgel making machine line, but also can provide the factory design for you. In terms of the after-service, we will be responsible for such services as belows: maintenance, parts supplying, technical support.



Company Information



Beijing KUN YOU Pharmatech Co., Ltd is a professional supplier for softgel making machine and paintball making machine. What we provide is the complete line for softgel making and paintball making, including the gelatin melting system, fill material system, softgel / paintball encapsulation machine, tumbler drying machine.



Besides, we also provide the die roll / mold for softgel and paintball, and plastic drying trays.



We are looking forward to your inquiry.



FAQ

Q1:Are you factory or trading company?

A: We are factory and manufacture.



Q2: Where is your factory located? How can I visit your factory?

A: We are located in Beijing, you can fly to Beijing airport or Nanyuan airport. Wecan pick you up from the airport or your hotel. Welcome to visit us!



Q3:How to place my order?

A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.



Q4 : What is the payment term?

A: 30% T/T deposit and 70% T/T balance payment before shipping.



Q5:How long is the delivery time?

A: About 35- 40 working days.
